AKG CK80 High performance shotgun condenser microphone capsule DAM Series

Product Code: AKG 2765Z00240

Key Features
Screw-on hypercardioid shotgun microphone capsule module, speech optimized, only for GN / HM modules, W80 windscreen included
$355.47 inc GST
(EA)
Increase value Decrease value
Qty Each (inc GST) Each
Stock on order
  • Features
  • Overview
  • Technical Specs
  • Documents

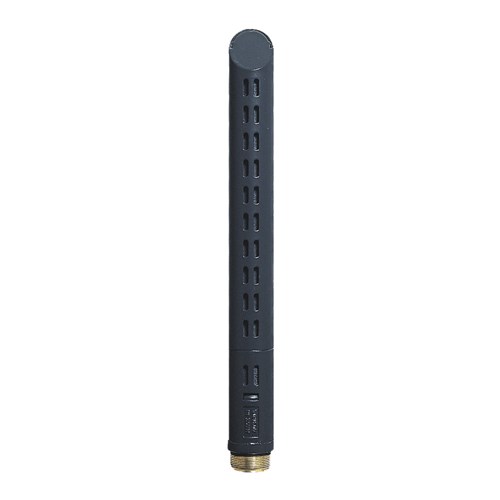

The CK80 high-performance shotgun microphone capsule provides an 80° pickup angle and offers a speech-optimized frequency response. It offers an unbeatable price/performance ratio and good speech intelligibility in acoustically critical applications. The CK80 capsule fits any mounting module of the DAM Series. To prevent contact problems, the capsule is equipped with large-area, self-cleaning, gold-plated contacts with deep threads to prevent misalignment and ensure extra-long life. The CK80 comes complete with a professional windscreen that reduces wind and pop noise.

Features

Tight, hypercardioid polar pattern

Eliminates noise from the sides

Speech-optimized frequency response

For excellent intelligibility in acoustically critical environments

Highly reliable contacts for capsule modules

Prevent contact problems and ensure extra-long life

Warranty

We offer a 2 year warranty on this product from its date of purchase. For more information regarding our support, repair and warranty, please download our Warranty Guide here.

Audio frequency bandwidth 60 - 15000 Hz
Equivalent noise level 17 dB-A
Sensitivity 30 mV/Pa
Signal to Noise 77 dB-A
Electrical impedance 600 Ohms
Recommended load impedance 2000 Ohms
Polar Pattern Hypercardioid

Dimensions

Height 146 mm
Diameter 13.5 mm
Net Weight 15 g

Design

Finish matte dark gray

Audio Output

Type Modular Series Standard

Powering Interface

Voltage 9 to 52 V
Current 3 mA
