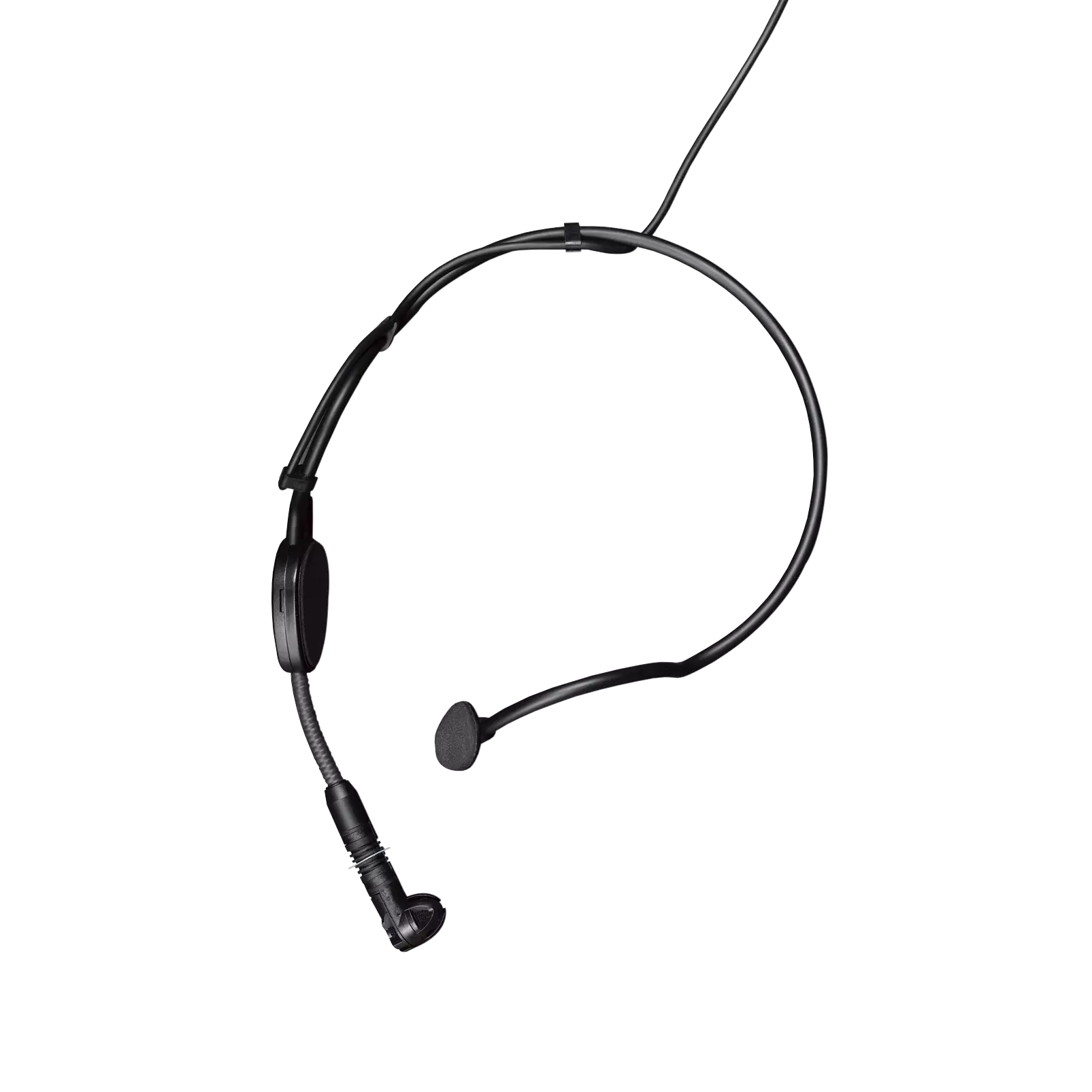

AKG C544 L High performance sports head worn condenser microphone

Product Code: AKG 2793H00060

Key Features
Rugged headworn mic for sports use with mini XLR connector for use with B29 L battery operated power supply, MPA V L external phantom power adapter, or AKG WMS bodypack transmitters.
$443.36 inc GST
(EA)
Increase value Decrease value
Qty Each (inc GST) Each
Stock on order
  • Features
  • Overview
  • Technical Specs
  • Documents

The C544 L high-performance head-worn miniature condenser microphone with an easily fitting headband is perfect for gymnastics instruction and other handsfree speech applications. A transducer shock mount reduces body noise to a minimum and the short microphone arm places the microphone in the right position to the mouth to minimize pop and breathing noise. A special moisture shield on the boom prevents the microphone from being clogged by sweat or makeup.

The C544 L comes with a three-pin mini XLR connecter which fits all AKG WMS Series body-pack transmitters. The package also includes a special windscreen.

Features

Fully rugged sports headband

For secure fit in all situations and movements

Cardioid polar pattern

For problem-free use with high ambient noise rejection

Flexible shock mount

For efficient suppression of mechanical and body noise

Moisture shield

Ensuring a dry microphone capsule

Includes four drop rings

For sweat and water protection

Warranty

We offer a 2 year warranty on this product from its date of purchase. For more information regarding our support, repair and warranty, please download our Warranty Guide here.

Type Pre-polarized condenser microphone
Polar Pattern Cardioid
Frequency Range 80 - 20000 Hz
Sensitivity 25 mV/Pa (U=9V, R=10kOhm)
Impedance @ 1kHz <200 Ohms
Recommended load impedance >2000 Ohms
Max SPL for 1% THD 120dB
Equivalent noise level (IEC 60268-4) 30dBA
Signal to Noise Ratio (@94dB SPL) 63dBA
Recommended Serial Resistor 10kOhm (2kOhm - 10kOhm)

Dimensions

Dimensions 145 x 110 x 70 mm / 5.7 x 4.3 x 2.8 in.
Net Weight 30g (1.1 oz.)
Shipping Weight 200g (7.1 oz.)

Design

Finish matte black

Audio Output

Type Mini XLR
Gender Female
Contacts 3-pin
Cable Length 1.5m (5 ft.)

Powering Interface

Current Consumption <2mA (<500uA if U-9V, R=10kOhm)
Operating Voltage 9V (2V - 10V)

Application

Sports / Fitness Yes
Assisted Listening Yes
Sound Reinforcement Yes
Presentation Yes
Retail Yes

Device

Headset Microphone Yes
