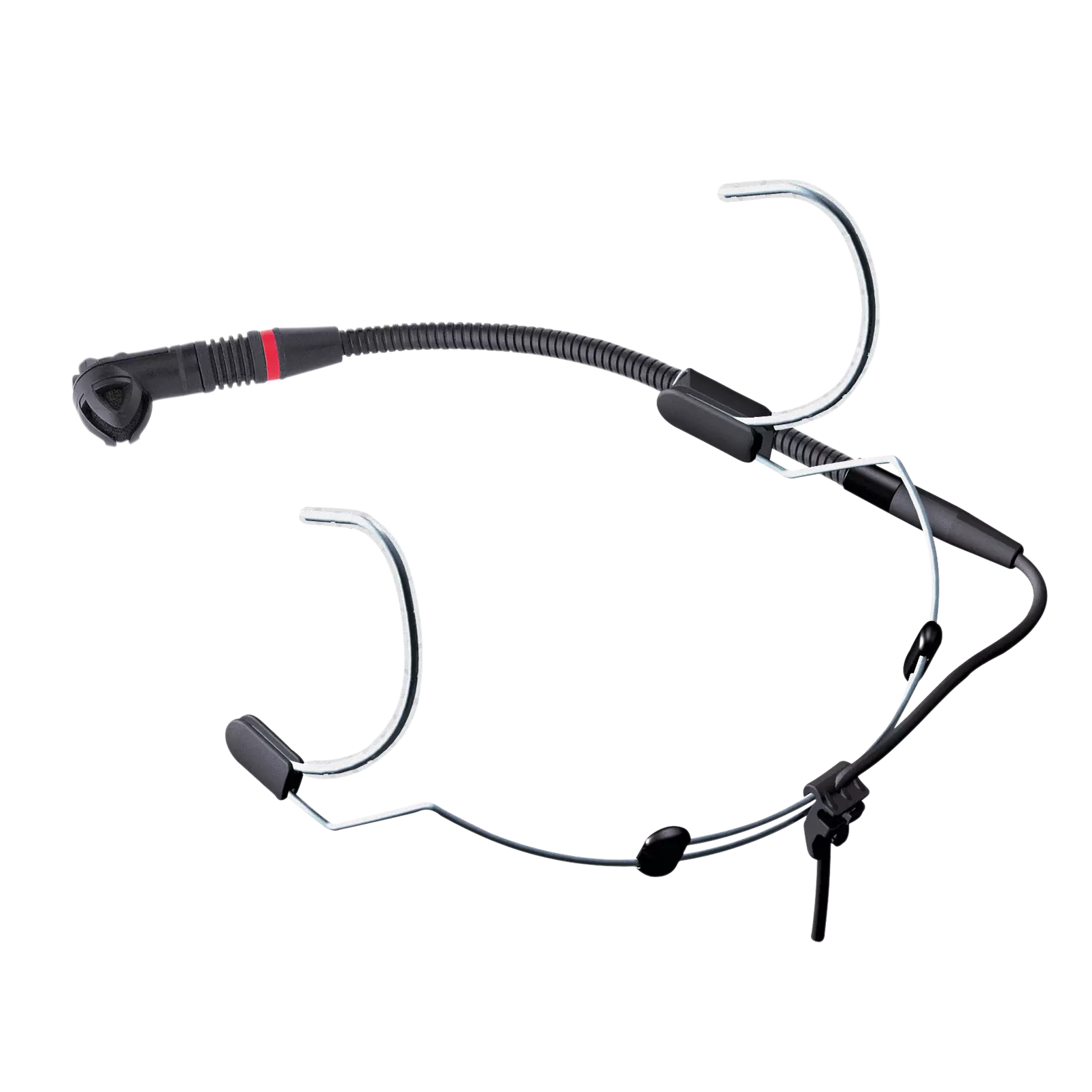

AKG C555 L High performance head worn condenser microphone

Product Code: AKG 3066H00100

Key Features
Light, rugged head-worn mic for presenters with mini XLR connector for use with B29 L battery operated power supply, MPA V L external phantom power adapter, or AKG WMS bodypack transmitters.
$497.18 inc GST
(EA)
Increase value Decrease value
Qty Each (inc GST) Each
In Stock
  • Features
  • Overview
  • Technical Specs
  • Documents

The C555 L high-performance head-worn condenser microphone is ideal for handsfree applications, including presentations or onstage performances. The C555 L rests securely and comfortably on the head, and can be attached to the left or right side of the behind-the-neck headband as desired. A transducer shock mount reduces handling noise to a minimum. The moisture shield ensures a high degree of humidity protection for the microphone.

The C555 L provides a three-pin mini XLR connector and can be used with all AKG WMS Series body-pack transmitters, B29 L battery power supply, or the MPA VL adapter for external phantom powering.

Features

Lightweight and adjustable-headband construction

For maximum comfort and freedom of movement

Left and right flexible boom mounting

For precise positioning to the sound source

Cardioid polar pattern

For problem-free use with high ambient noise rejection

Flexible shock mount

For efficient suppression of mechanical and body noise

Moisture shield

Ensuring a dry microphone capsule

Warranty

We offer a 2 year warranty on this product from its date of purchase. For more information regarding our support, repair and warranty, please download our Warranty Guide here.

Type Pre-polarized condenser microphone
Polar Pattern Cardioid
Frequency Range 80 - 20000 Hz
Sensitivity 25 mV/Pa (U=9V, R=10kOhm)
Impedance @ 1kHz <200 Ohms
Recommended load impedance >2000 Ohms
Max SPL for 1% THD 120dB
Equivalent noise level (IEC 60268-4) 30dBA
Signal to Noise Ratio (@ 94dB SPL) 63dBA
Recommended Serial Resistor 10kOhm (2kOhm - 10kOhm)

Dimensions

Length (mic only) 195mm (7.7 in.)
Max Diameter (mic only) 134 mm (5.3 in.)
Net Weight 26g (0.9 oz.)
Shipping Weight 260g (9.2 oz.)

Design

Finish matte black

Audio Output

Type Mini XLR
Gender Female
Contacts 3-pin
Cable Length 1.5m (5 ft.)

Powering Interface

Current Consumption <2mA (<500uA if U-9V, R=10kOhm)
Operation voltage 9V (2V - 10V)

Application

Live Vocal Yes
Sports / Fitness Yes
Assisted Listening Yes
Sound Reinforcement Yes
Presentation Yes
Retail Yes

Instrument

Vocals Yes

Device

Headset Microphone Yes
