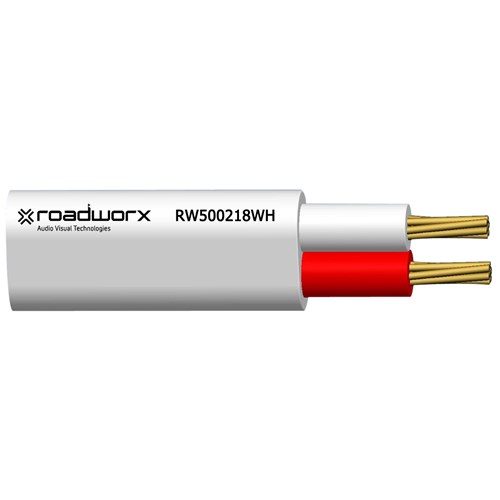

Name: Roadworx RW500218WH Speaker Cable 2 Conductor Flat Double Insulated 18 AWG White 300m Reels
Price: 0.9286 AUD

(M)

Qty	Each (inc GST)	Each

Conductor	24/0.19+/-0.006BC
Insulation	Core: 2 Material: PVC Colour: Red, White Min. Thickness 0.42mm / Nom. Thickness ≥0.50mm / Nom. O.D 2.3+/-0.1mm
Sheath	Material: PVC / Colour: White
Min. Thickness 0.42mm / Nom. Thickness ≥0.50mm Nom. Sheath O.D H: 3.5+/-0.2mm, W: 6.0+/-0.2mm
Spark Voltage: 3000V a.c

Conductor Max D.C Resistance	26.4 ohm/km 20°C
Voltage Test: Core to Core	1000V a.c/1min

Insulation Elongation	≥100%
Insulation Tensile Strength	≥13 N/mm2
Sheath Elongation	≥100%
Sheath Tensile Strength	≥12 N/mm2

Operating Temperature Range	-15 to 70
Max. Recommended Pulling Tension	95N
Min. Bend Radius (install)	35mm
Approximate Mass	3.81kg/100m
Sheath Printing	ROADWORX RW500218 SPEAKER CABLE, 2 CORE, 18AWG (meter marking)

Roadworx RW500218WH Speaker Cable 2 Conductor Flat Double Insulated 18 AWG White 300m Reels
