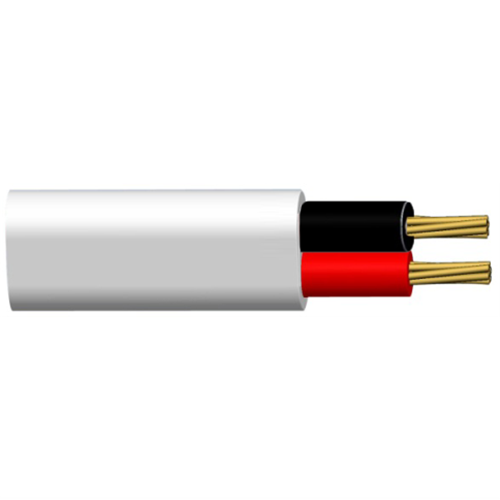

Roadworx RW500214WH Speaker Cable 2 Conductor Flat Double Insulated 14 AWG White 300m Reels

Product Code: RW500214WH300

Key Features

Speaker Cable, 2 conductor, Flat, Double Insulated, 14AWG, White, 300m Reels

$2.33 inc GST
(M)
Increase value Decrease value
Qty Each (inc GST) Each
Stock on order
  • Features
  • Overview
  • Technical Specs
  • Documents

Roadworx RW500214WH Speaker Cable 2 Conductor Flat Double Insulated 14 AWG White 300M Reels

Description

26/0.3BC x 2C + PVC Insulation + PVC Sheath Φ4.05 x 6.7mm

Applicable Standards

N/A

Suitable Applications

Used to make the electrical connection between loudspeakers and audio amplifiers.

Warranty

We offer a 1 year warranty on this product from its date of purchase. For more information regarding our support, repair and warranty, please download our Warranty Guide here.

Cable Description

Conductor 26/0.3+/-0.006BC
Insulation Core: 2
Material: PVC
Colour: Black, Red
Min. Thickness 0.42mm / Nom. Thickness ≥0.50mm / Nom. O.D 2.8+/-0.1mm
Sheath

Material : PVC / Colour: White

Min. Thickness 0.42mm / Nom. Thickness ≥0.50mm
Nom. Sheath O.D H: 4.05+/-0.2mm, W: 6.7+/-0.2mm

Spark Voltage : 3000V a.c

Electrical Properties

Conductor Max D.C Resistance 9.7 ohm/km 20°C
Voltage Test: Core to Core

2000V a.c/1min

Physical Properties

Insulation Elongation ≥100%
Insulation Tensile Strength ≥13 N/mm2
Sheath Elongation ≥100%
Sheath Tensile Strength ≥12 N/mm2

Mechanical Properties

Operating Temperature Range -15 to 70
Max. Recommended Pulling Tension 257N
Min. Bend Radius (install) 40.5mm
Approximate Mass 5.97kg/100m
Sheath Printing

ROADWORX RW500214 Speaker Cable, 2 Conductor, 14AWG (meter marking)
