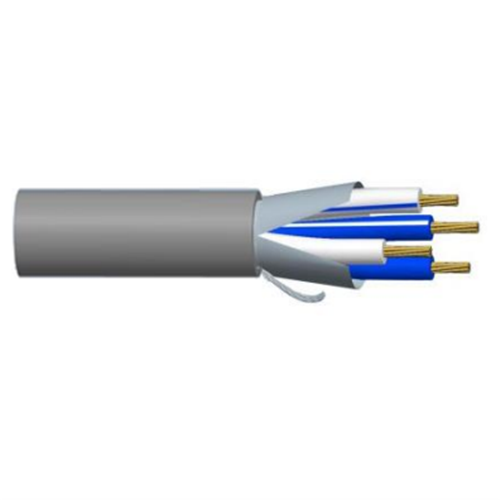

Roadworx RW21SQ24 Analog Mic Cable Foil and Drain Install Star-Quad 24AWG Grey 300m Reels

Product Code: RW21SQ24GY300

Key Features

Roadworx RW21SQ24GY300 RW21SQ24 Analog Microphone Cable Foil & Drain Install Star-Quad 24AWG Grey 300m Reels

42/0.1BC x 4C + PE Insulation + Cotton Wire + Cotton Paper + Al. Foil +
+ Drain Wire + PVC Sheath Φ 6.2mm
$2.03 inc GST
(M)
Increase value Decrease value
Qty Each (inc GST) Each
In Stock
  • Features
  • Overview
  • Technical Specs
  • Documents

Roadworx RW21SQ24GY300 RW21SQ24 Analog Microphone Cable Foil & Drain Install Star-Quad 24AWG Grey 300m Reels

Flexible and rugged cable for connecting to low level microphones
and musical instruments in semi-permanent and stage-redeployment
applications.

Colours also available - contact us for colour options, MOQ may apply

Warranty

We offer a 1 year warranty on this product from its date of purchase. For more information regarding our support, repair and warranty, please download our Warranty Guide here.

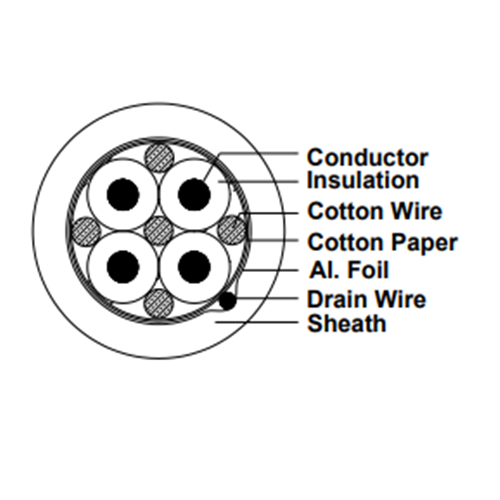

Cable Description

Conductor 42/0.1+/-0.006TC
Insulation Cores: 4
Material: PE
Colour: White, Blue, White/Blue strip, Blue/White strip
Min. Thickness 0.30mm / Nom. Thickness ≥0.35mm / Nom. O.D 1.45+/-0.1mm
Filler Material: Cotton Wire, Material: Cotton Paper
Screen Al. Foil Coverage 100%
Drain Wire 7/0.16+/-0.006mmTC
Sheath

Material: PVC / Colour: Grey

Min. Thickness 0.72mm / Nom. Thickness ≥0.9mm / Nom. Sheath O.D 6.2+/-0.2mm

Spark Voltage: 3000V a.c

Electrical Properties

Max. Operating Voltage 100V RMS
Max. Conductor D.C Resistance 66.7 ohm/km 20°C
Max. Capacitance Core to Core 92pF/m (1KHz)
Max. Capacitance Core to Screen 175pF/m (1KHz)
Voltage Test: Core to Core 1000V a.c/1min
Voltage Test: Core to Screen 1000V a.c/1min

Physical Properties

Insulation Elongation ≥300%
Insulation Tensile Strength ≥13.6 N/mm2
Sheath Elongation ≥100%
Sheath Tensile Strength ≥12 N/mm2

Mechanical Properties

Operating Temperature Range -15 to 70
Max. Recommended Pulling Tension 92N
Min. Bend Radius (install) 62mm
Approximate Mass 5.2kg/100m
Sheath Printing ROADWORX RW21SQ24 Analog Microphone Cable, StarQuad, 24AWG - Mmark - Batch MT
