Roadworx RW222424 Analog Audio Snake 24 Pair 24AWG Grey 300m Reels

Product Code: RW222424GY300

Key Features

Analog Audio Snake 24 Pair 24AWG Grey 300M Reels

$20.87 inc GST
(M)
Increase value Decrease value
Qty Each (inc GST) Each
Estimated Lead time 12+ weeks
  • Features
  • Overview
  • Technical Specs
  • Documents

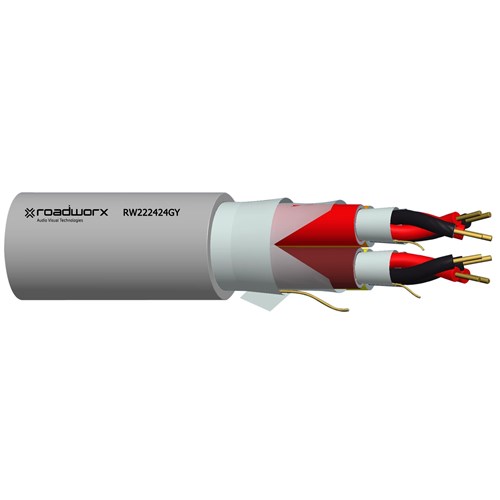

Roadworx RW222424 Analog Audio Snake 24 Pair 24AWG Grey 300M Reels

Description

(7/0.2TC x 1P + PE Insulation + Drain Wire + Al. Foil + PVC Sheath ) x 24C + Polyester Tape + Drain Wire + Al. Foil + PVC Sheath Φ15.2mm

Applicable Standards

N/A

Suitable Applications

Used to connect multiple audio channels in low level (microphone) and high level (line) componentry such as console board equipment for Radio television stations, post-production facilities, and sound system installation

Please Note: This cable is able to be cut in lengths other than 50m increments if needed. Please contact Sales@madisonav.com.au to enquire about cut lengths.

Colours also available - contact us for colour options, MOQ may apply

Warranty

We offer a 1 year warranty on this product from its date of purchase. For more information regarding our support, repair and warranty, please download our Warranty Guide here.

Trade Terms
This item is a firm order product, meaning it cannot be cancelled or returned once the purchase order is processed, except in cases of defect. Please verify that part numbers and descriptions are accurate before placing your order. For any confirmation or additional information, please contact AV Sales at 1800 00 77 80.

Cable Description

Conductor 7/0.20+/-0.006TC
Insulation Pair: 24
Material: PE
Colour: Red/Black
Min. Thickness 0.20mm / Nom. Thickness ≥0.25mm / Nom. O.D 1.1+/-0.1mm
Screen

Al. Foil 100% Coverage
Drain Wire 7/0.20+/-0.006TC
Inner Sheath Core: 24
Material: PVC
Min. Thickness 0.24mm / Nom. Thickness ≥0.30mm / Nom. Sheath O.D 2.9+/-0.1mm
Spark Voltage: 3000V a.c
Filler Polyester Tape 100% Coverage
Outer Sheath Material: PVC / Colour: Grey
Min. Thickness 1.2mm / Nom. Thickness ≥1.50mm / Nom. Sheath O.D20.1+/-0.2mm
Spark Voltage: 3000V a.c

Electrical Properties

Conductor Max D.C Resistance 93.25 ohm/km 20°C
Voltage Test: Core to Core 1000V a.c/1min
Voltage Test: Core to Screen 1000V a.c/1min

Physical Properties

Inner Sheath Elongation ≥300%
Inner Sheath Tensile Strength ≥13.6 N/mm2
Outer Sheath Elongation ≥100%
Outer Sheath Tensile Strength ≥12 N/mm2

Mechanical Properties

Operating Temperature Range -15 to 70
Max. Recommended Pulling Tension 738N
Min. Bend Radius (install) 201mm
Approximate Mass 48.08kg/100m
Sheath Printing ROADWORX RW222424 Analog Audio Snake, 24 pair, 24AWG (meter marking)
