Product Code: R888230

Key Features

Field mountable RJ45 plug
Environmentally friendly paper bagpackaging
Robust die cast housing
Product information printed directly onto paper bag
Intuitive and fast termination of unshielded cable (UTP)
Intuitive and fast termination of shielded cable (STP)
Installation guide accessible via QR code printed onto paper bag
Unique QR Code sticker for individual quality traceability
Approved for solid and stranded wire AWG 22 to AWG 26
Unlatching lever / latch protection

(EA)

Overview
Technical Specs
Documents

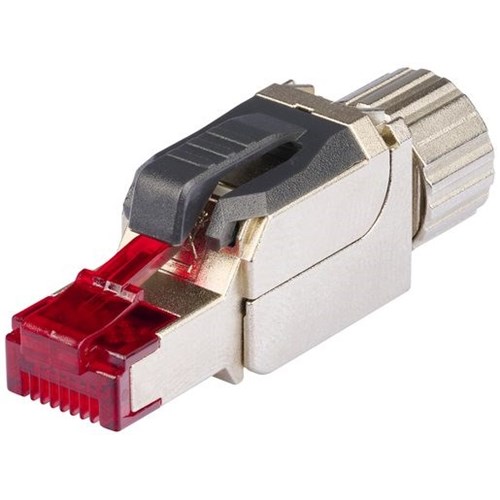

R&M FM45 Plug Connector EL Cat6A Shielded or Unshielded AWG22 to 26 IP20 Metal Housing Standard

Standard version, suitable for standard applications.

Intuitive, fast and robust - New generation of field mountable RJ45 plug connector, with unlatching catch protection lever and robust die cast housing, shielded and unshielded, Cat.6_A 8-pole, IDC termination technology, suitable for solid or stranded wires, 2 to 8-wire conductors of diameter AWG 22 to AWG 26 (AWG 22/7 - 26/7), die cast housing IP20, for cable diameters of 5 to 9 mm, printed color coding acc. TIA 568A/B. Each set packed in environmentally friendly paper bag with installation guide printed directly onto the paper bag.

PoE optimized – R&M PowerSafe seal granted.

Scope of supply

Field mountable RJ45 plug
Wiring element and nut with clamping ring 6-9 mm
Strain-relieve clamping ring for cable diameter 5-8 mm

Technical Data

Wire type	Wire or stranded wire
Conductor Construction	AWG 22 - 26
Wire diameter	Wire: 0.4 - 0.61mmStranded wire: 0.12mm2 - 0.32mm2
Approved wire diameter with insulation	1.6 mm / 0.063 in
Number of wires	8
Cable overall diameter	5.0 - 9.0 mm
Protection class IP	IP 20
PoE	Yes
PoE Level	4
PowerSafe	Yes
Pollution Degree	2 according to IEC 61010-1
Dust Protection	No
Wiring diagram	EIA/TIA 568A/B
Colour Coding	Yes
Contact material	Bronze (CuSn6)
Contact Surface	>1.2µm gold over 1.2µm nickel
Re-termination	≥4 according IEC 60352-4Re-terminations may be performed with wire of either larger or equal size than originally terminated.

Mechanical Data

Dimensions	14 mm x 18 mm x 46 mm / 0.551 in x 0.709 in x 1.811 in (W x H x D)
Design	straight
Color	silver / gray
Connection Type	IDC according IEC 60352-4, tin-plated, approx. 5µmRe-terminations may be performed with wire of either larger or equal size than originally terminated.
Mating Cycles	> 750

Environmental Characteristics

Operation temperature

-40 °C to +85 °C / -40 °F to +185 °F

Electrical Data

Nominal Current	1.55 A @ 20°C
Input-Output Resistance	< 100 Ω
Insulation Resistance	> 1 GΩ (100V)
Contact Resistance	< 20 m
Dielectric Strength	Contact - contact >1000VDCShield - contact >1500VDC, 1min.
Standard	ISO/IEC 11801 IEC 60603-7-41/51 EN 50173 ANSI/TIA-568.2-D PoE (IEEE 802.3af), PoEP (IEEE 802.3at), 4PpoE (IEEE 802.3bt)
