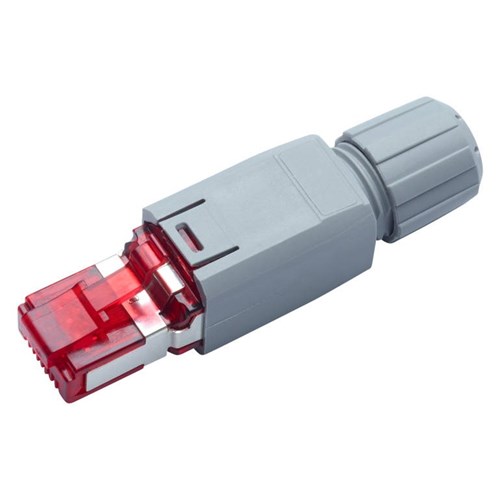

Name: R&M Plug FM45 Cat6A Straight Shielded
Price: 29.64 AUD

(EA)

Qty	Each (inc GST)	Each

DESCRIPTION	VALUE/VALUE RANGE
Standard / norm	ISO/IEC 11801 IEC 60603-7-41/51 EN 50173 ANSI/TIA-568-C.2 PoE (IEEE 802.3af), PoEP (IEEE 802.3at), 4PpoE (IEEE 802.3bt) IEC 60512-00-001/002
Protection class IP	IP 20
Category	Cat. 6_A ISO
Wiring diagram	T568A and T568B
Cable overall diameter	4.5 - 8.0mm
Number of wires	8
Wire type	Wire or stranded wire
Colour Coding	Yes, optional
Dust Protection	No
Cable Strain Relief	50 N
Re-termination	4 according IEC 60352-4 Re-terminations may be performed with wire of either larger or equal size than originally terminated.
Contact Surface	>1.2 m gold over 1.2 m nickel
Contact material	Bronze (CuSn6)
Pollution Degree	2 according to IEC 61010-1
UL Classification	UL94-V0
Wire diameter	Wire: 0.4 - 0.61mm Stranded wire: 0.12mm² - 0.32mm²
Approved wire diameter with insulation	1.6 mm / 0.063 in
Plug type twisted pair	RJ45

R&M Plug FM45 Cat6A Straight Shielded
