  • Neutrik CAT6A Cable Connector Black Suits Solid AWG24-22 Stranded AWG 24/7-22/7

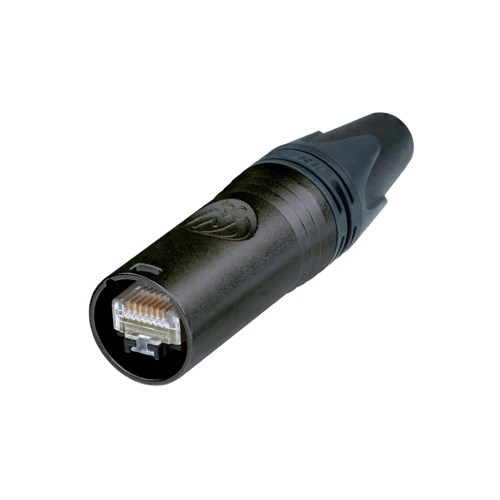

Neutrik CAT6A Cable Connector Black Suits Solid AWG24-22 Stranded AWG 24/7-22/7

Product Code: NU-NE8MX6-B

Key Features
  • Ruggedized connector with CAT6A component compliance according to ISO / IEC 11801 and TIA / EIA 568-C.2
  • PoE++ compliant according to 802.3bt Type4
  • IP 65 protected when mated with NE8FDX-P6-W or NE8FDX-Y6-W
  • Rugged latch lock system million fold proven
  • Intermateable with the existing etherCON CAT5 range
  • Unique Neutrik chuck-type strain relief
$36.96 inc GST
(EA)
Increase value Decrease value
Qty Each (inc GST) Each
Estimated Lead time 1-2 weeks
  • Features
  • Overview
  • Technical Specs
  • Documents

Neutrik CAT6A Cable Connector Black Suits Solid AWG24-22 Stranded AWG 24/7-22/7

etherCON CAT6A cable connector self-termination, for insulation diameter > 1.1 mm, black plating

The set NE8MX6-B includes a cable plug carrier offering a robust metal shell, proven Neutrik chuck-type strain relief and a CAT6A RJ45 plug. The set is suitable for a cable diameter range of 7 mm to 9.5 mm and wire gauge of AWG24/1 - AWG22/1 (solid) or AWG24/7 - AWG22/7 (stranded).

Attention! Does not intermate with the CAT6 chassis connectors NE8FDY-C6 and NE8FDY-C6-B.

If the insulation diameter is ≤ 1.1 mm please refer to NE8MX-B-T.

Warranty

We offer a 180 days warranty on this product from its date of purchase. For more information regarding our support, repair and warranty, please download our Warranty Guide here.

Trade Terms
This item is a firm order product, meaning it cannot be cancelled or returned once the purchase order is processed, except in cases of defect. Please verify that part numbers and descriptions are accurate before placing your order. For any confirmation or additional information, please contact AV Sales at 1800 00 77 80.
Product
Title NE8MX6-B
Gender male
Electrical
Dielectric strength 1 kVdc
Insulation resistance > 0.5 GΩ
Rated current per contact 1.5 A
Transmission performance CAT6A, acc. TIA/EIA rating
CAT6A, acc. IEC/ISO/EN rating
Power over Ethernet PoE++ acc. IEEE 802.3bt
Mechanical
Cable O.D. 7.0 - 9.5 mm
Lifetime > 1000 mating cycles
Wiresize AWG 24/1 - AWG 22/1 (solid)
  AWG 24/7 - AWG 22/7 (stranded)
Locking device Latch lock
Insulation diameter 1.1 - 1.6 mm
Material
Bushing PA / PU
Contact plating Au
Shell Zinc diecast (ZnAl4Cu1)
Shell plating Black chromium
Strain relief POM
Environmental
Protection class IP 65 (in combination with NE8FDX-*6-W)
Temperature range -40 °C to +70 °C
