  • Neutrik HD BNC Connector - Suits Belden Cables 1694A and 4694R

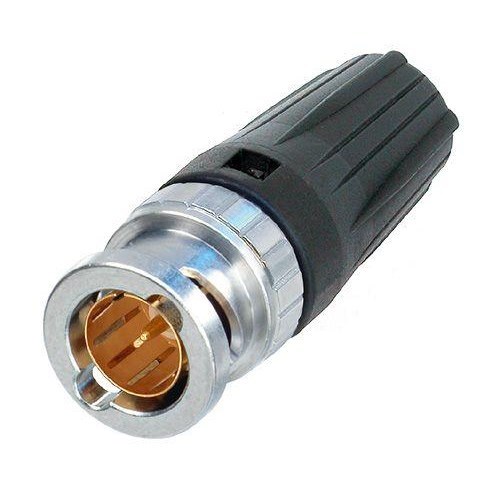

Neutrik HD BNC Connector - Suits Belden Cables 1694A and 4694R

Product Code: NU-NBNC75BTU11

Key Features
  • “rearTWIST Principle” locking/unlocking using the easily accessible soft touch boot (Patent DE 100 48507)
  • Ideal for recessed bulkheads where access to the “head” of the connector might be an issue. These connectors turn from the back and not the front.
  • True 75 Ω design meets the stringent HDTV / DVD requirements
  • Leading area: Avoids tilting due to side forces to protect contacts from deformation. Guarantees a lifetime of min. 1000 mating cycles!
  • Snug-fit center pin insert provides tactile feedback
  • Shield and jacket crimp technology prevents the problem of an exposed grounding braid on cable assemblies
  • Excellent cable protection and retention
  • Precise Swiss machined brass parts for outstanding durability
$8.39 inc GST
(EA)
Increase value Decrease value
Qty Each (inc GST) Each
Estimated Lead time 1-2 weeks
  • Features
  • Overview
  • Technical Specs
  • Documents

Neutrik HD BNC Connector - Suits Belden Cables 1694A and 4694R

The rearTWIST HD BNC cable connector offers a true 75 Ω design and is perfectly suitable for HD applications. The patented rearTWIST boot guarantees easy access even in high density applications and offers color coding.

Suitable cables:

Belden 1694A (ANH), Belden 4694R, Bryant BD SD11, Canare L-4.5CHD, Clark Wire CD7506-0, CommScope 5765, Gepco VSD2001, Suhner S05163-02, Suhner S05133-07, Percon VK77

Crimp size:

Pin: 1.6 mm (square)
Shield: 7.36 mm (hex)

Warranty

We offer a 180 days warranty on this product from its date of purchase. For more information regarding our support, repair and warranty, please download our Warranty Guide here.

Trade Terms
This item is a firm order product, meaning it cannot be cancelled or returned once the purchase order is processed, except in cases of defect. Please verify that part numbers and descriptions are accurate before placing your order. For any confirmation or additional information, please contact AV Sales at 1800 00 77 80.
Product
Title NBNC75BTU11
Connection Type BNC 75 Ω
Gender male
Electrical
Contact resistance ≤ 3 mΩ (inner)
Contact resistance ≤ 2 mΩ (outer)
Dielectric strength 1,5 kVdc
Impedance 75 Ω
Insulation resistance > 5 GΩ
Rated voltage <50 V
VSWR ≤1.050/>32 dB up to 1 GHz
≤1.065/>30 dB up to 2 GHz
≤1.100/>26 dB up to 3 Ghz
Mechanical
Cable O.D. 7.3 mm
Cable retention > 30 N (Center)
Crimp size 7,36 Hex crimp (shield) acc. MIL22520/5-41(A)
Crimp size (pin) 1,6 Square crimp (pin) acc. IEC 60803 (die designation 2)
Insertion force < 25 N
Lifetime > 1000 mating cycles
Wiresize
Locking device Bayonett
Cable anchoring Jacket crimping
Material
Contacts Brass (CuZn35Pb2), 0.2 µm AuCo (Center contact)
Insert PTFE
Shell Brass (CuZn39Pb3)
Shell plating Optalloy®
Environmental
Temperature range -30 °C to +85 °C
Contact crimpability Complies with IEC 60803 and IEC 60352-2
