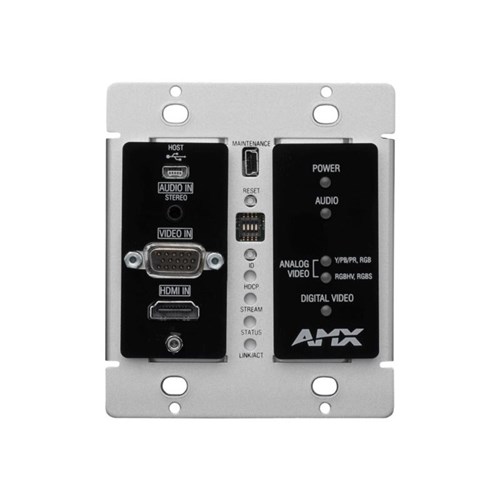

AMX NMX-ENC-N1115-WP-BL - Wallplate Encoder Black

Product Code: AMX FGN1115-WP-BL

Key Features
SVSI Decor Style Wallplate Minimal Compression Video over IP N1115 Encoder with Ethernet port, KVM-over-IP keyboard and mouse operation, serial, audio, VGA, and HDMI video connections, black
Enquire Now
In Stock

The N1000 Series Encoders and Decoders are an affordable local AV-over-IP switching solution that packetizes video into a minimally compressed IP format that provides excellent video quality at low latencies. This compression is perfect for point-to-point video distribution, small 2x1 switching applications, and larger switching applications (for example, 32x32), all using off-the-shelf layer-3 network switches.

The NMX-ENC-N1115-WP provides the excellent encoding capabilities of the NMX-ENC-N1133 in a 2-gang wallplate format. This encoder can be easily mounted in a wall, lectern, or floor box using a standard 2-gang US back box, and connected to power and Ethernet using only a single category cable.

The NMX-ENC-N1115 is the perfect solution for any application and video matrix smaller than 32x32. Common applications include conference rooms, huddle spaces, and lecterns (inside or adjacent-to)

Features

  • Sub-Frame Latency  Combined encode and decode latency of 10 ms at 60 fps.
  • Minimal Proprietary Compression (MPC)  Visually lossless MPC algorithm applied applied to all resolutions
  • Wallplate Form Factor  Fits conveniently into a 2-gang US back box for easy installation in a wall, floor, or lectern.
  • Power Over Ethernet (PoE)  PoE eliminates the need for power supply
  • Unmatched Flexibility  Build point-to-point links, simple 2x1 switches, or cost-effective matrices up to 32x32.
  • Separate Inputs  Separate HDMI and VGA input connectors on the encoder

Harman Professional University certifications required to purchase this product. Please contact your Account Manager to learn more.

Warranty

We offer a 3 year warranty on this product from its date of purchase. For more information regarding our support, repair and warranty, please download our Warranty Guide here.
