  • NETGEAR M4350-8X8F 16-port Half Width Layer 3 Fully Managed Switch with 8 x 10G/Multi-Gig and 8 x 10GBASE-X SFP+

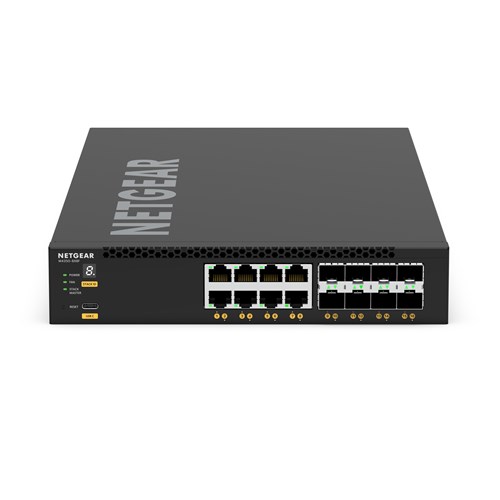

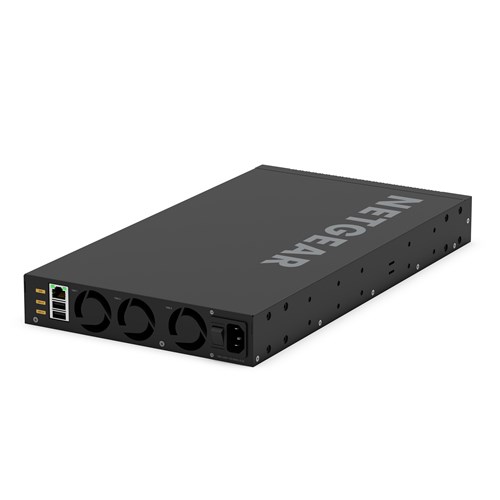

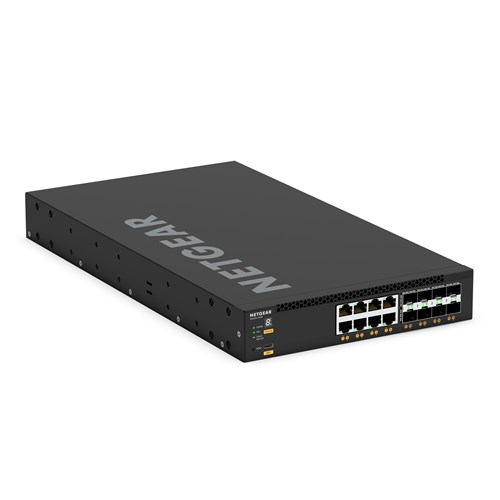

NETGEAR M4350-8X8F 16-port Half Width Layer 3 Fully Managed Switch with 8 x 10G/Multi-Gig and 8 x 10GBASE-X SFP+

Product Code: NGR XSM4316-100AJS

Key Features
  • 8 10G/Multi-Gig ports, and 8 10GBASE-X SFP+ ports.
  • 240W internal power supply.
  • Half-width form factor enables one or two switches in a single rack space for redundant top-of-rack.
  • Virtual Chassis stacking provides non-stop forwarding (NSF) and hitless failover.
  • Layer 3 feature set includes static, policy-based, and dynamic routing.
  • NETGEAR IGMP Plus™, AV User Interface, and Engage Controller speed up AV installations.
  • NETGEAR ProSAFE® Limited Lifetime Hardware Warranty.
  • Lifetime Next Business Day Hardware Replacement.
  • Dimensions: 220x400x43.2 mm
  • Weight: 4.05Kg (8.93 lb)
$5,199.00 inc GST
(EA)
Increase value Decrease value
Qty Each (inc GST) Each
Estimated Lead time 4-6 weeks
  • Features
  • Overview
  • Technical Specs
  • Documents

NETGEAR M4350-8X8F 16-port Half Width Layer 3 Fully Managed Switch with 8 x 10G/Multi-Gig and 8 x 10GBASE-X SFP+

M4350 AV OVER IP SIMPLIFIED

Groundbreaking AV GUI
A simplified user interface makes it easy to assign configuration profiles to each port.

Multicast in an Instant
NETGEAR IGMP Plus™ provides multicast functionality right out of the box for most AV over IP applications.

Sleek, Quiet Design
Less fan noise, and mounting ears included for rack mounting.

Automatic Configuration
Auto-trunk and auto-LAG functionality auto connects with other M4350 (and M4250) switches.

FAST, EASY CONFIGURATION FOR AV PROS

A streamlined interface enables factory default AV settings or user-specified AV profiles to be assigned to individual ports with just a few clicks.

FOCUS ON THE EVENT, NOT FAN NOISE

Most models have quiet mode which greatly reduces fan noise.

DESIGNED FOR AV OVER IP RIGHT OUT OF THE BOX

With built-in NETGEAR IGMP Plus™, there's little-to-no setup required for flawless Video over IP delivery. Enable multicasting right out of the box.

MAXIMIZE PERFORMANCE WITH PRO WIFI ACCESS POINTS

Enable powerful, reliable WiFi at your location with Pro WiFi access points, powered by PoE or an external power adapter



What's In the Box:

  • 1  M4350-8X8F (XSM4316)
  • 1  Power cord(s)
  • 1  Console USB Type-C cable
  • 1  Switch rack-mounting standard bracket set
  • 1  Switch set of longer brackets for recessed mounting

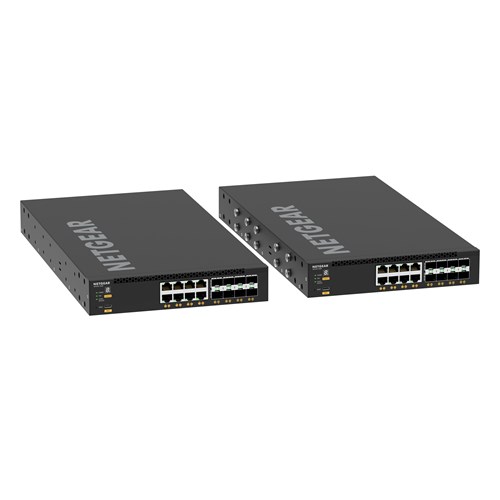

  • 2  Switch pairing kit for two half-width M4350 switches in a single rack space
  • 4  Rubber footpads for tabletop installation
  • 1  Installation guide
Warranty

We offer a Limited Lifetime warranty on this product from its date of purchase. For more information regarding our support, repair and warranty, please download our Warranty Guide here.

  • Width: 220mm
  • Depth: 400mm
  • Height: 43.2mm
  • Weight: 4.05kg (8.93lb)
  • Primary Port Speed: 10 Gigabit / Multi-Gig
  • Number of Ports: 16 (8 x 10G/Multi-Gig, 8 x 10G SFP+)
  • PoE Ports / Budget: N/A
  • IGMP Support: Enhanced (NETGEAR IGMP Plus™)
  • Jumbo Frame Support: Yes, up to 12kb
  • AVB Support: Yes, included
  • Acoustics: Quiet Mode 34.4dB@25ºC
  • Power Consumption: 81.1W/254.65Btu/hr,  Standby without any port connection: 30.5W/95.77Btu/hr
