NETGEAR AV Line M4250-16XF 16x1G/10G Fiber SFP+ Managed Switch

Product Code: NGR XSM4216F-100AJS

Key Features
  • 16-port 10GBASE-X (SFP+)
  • The first 12 ports support 1000BASE-X (1G) SFP modules
  • 320 Gbps non-blocking fabric across 16 ports
  • Out-of-band 1G Ethernet management port
  • USB-C and RJ45 RS232 console ports and USB-A storage port

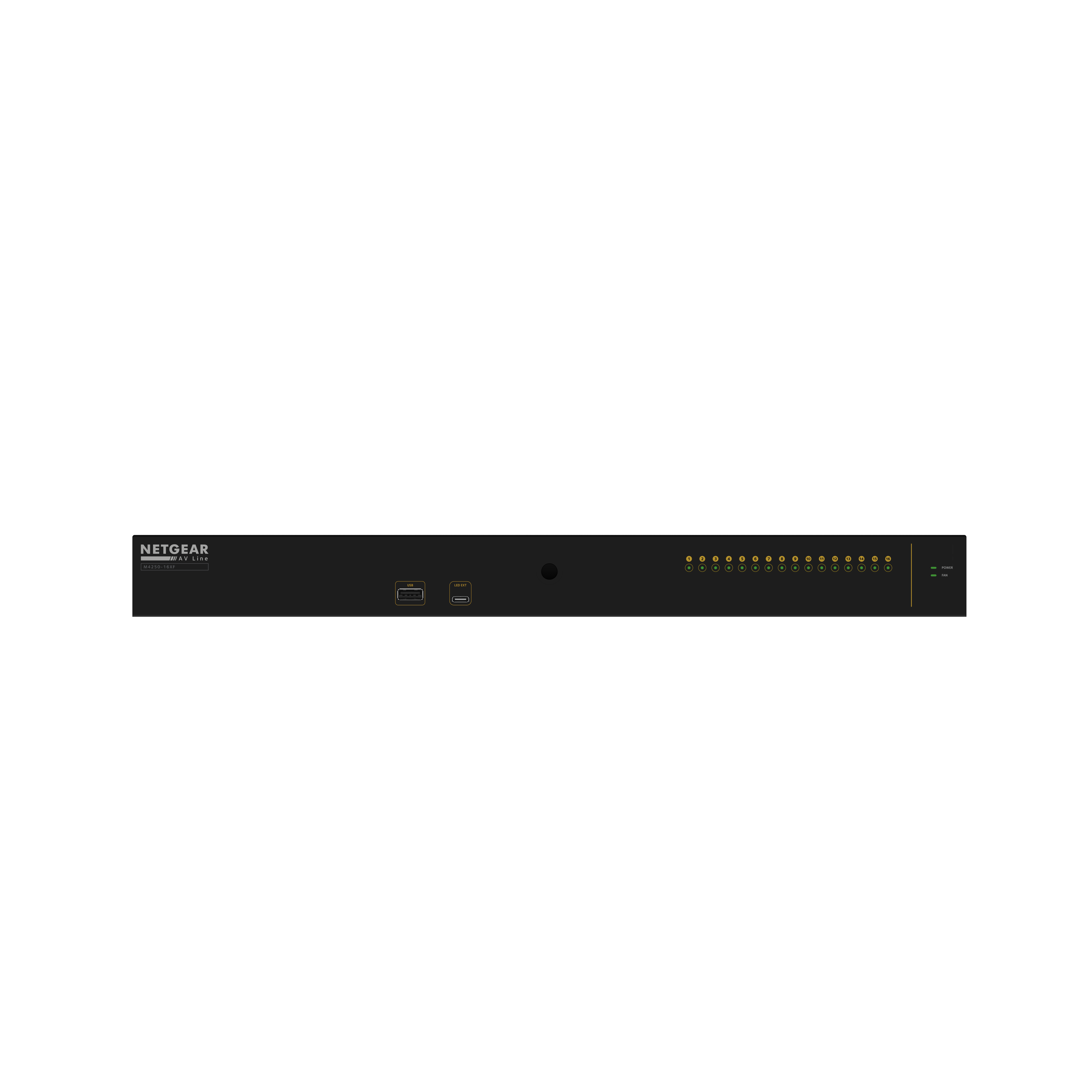

  • Front black display panel and all ports in the back
  • Possible reversed mounting with ports in the front
  • Rack-mounting standard brackets
  • Longer brackets for recessed mounting (2 inches / 5 cm)
  • Threaded hole in front (1xM10) for clamps
  • Threaded holes on the bottom (4xM5) for 50x100mm VESA plates
  • Selectable fan modes for fanless, quiet, or cool operation

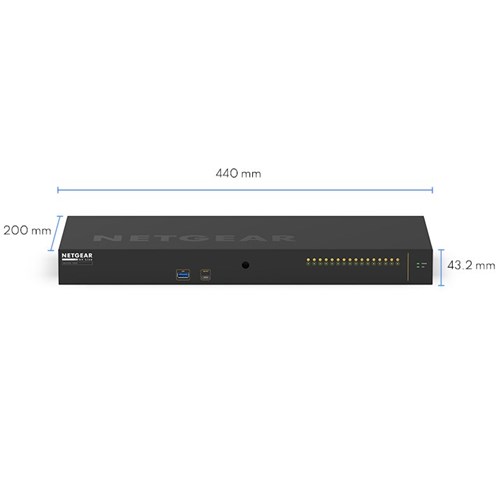

  • Dimensions (WxDxH): 440 x 200 x 43.2 mm
  • Weight: 1.74Kg (3.85lb)
$2,799.01 inc GST
(EA)
Increase value Decrease value
Qty Each (inc GST) Each
In Stock
  • Features
  • Overview
  • Technical Specs
  • Documents

NETGEAR AV Line M4250-16XF 16x1G/10G Fiber SFP+ Managed Switch

Switching engineered for 1G AV over IP with rear-facing ports ensuring a clean integration in AV racks. Pre-configured for out of the box functionality!

M4250 AV OVER IP SIMPLIFIED

Groundbreaking AV GUI
A simplified user interface makes it easy to assign configuration profiles to each port.

Multicast in an Instant
NETGEAR IGMP Plus™ provides multicast functionality right out of the box for most AV over IP applications.

Sleek, Quiet Design
Less fan noise, and mounting ears included for under-table or wall mounting.

Automatic Configuration
Auto-trunk and auto-LAG functionality auto connects with other M4250 (and M4300) switches.

FAST, EASY CONFIGURATION FOR AV PROS

A streamlined interface enables factory default AV settings or user-specified AV profiles to be assigned to individual ports with just a few clicks.

FOCUS ON THE EVENT, NOT FAN NOISE

Most models have quiet mode which greatly reduces fan noise, and some models are even fanless.

DESIGNED FOR AV OVER IP RIGHT OUT OF THE BOX

With built-in NETGEAR IGMP Plus™, there's little-to-no setup required for flawless Video over IP delivery. Enable multicasting right out of the box.

REFINED DESIGN PROVIDES MOUNTING FLEXIBILITY

Clean lines and port activity status is featured in the front of the switch, while cabling is neatly in the back. Universal mounting options allow VESA mounting or in standard racks.

MAXIMIZE PERFORMANCE WITH NETGEAR ACCESS POINTS

Enable powerful, reliable WiFi at your location with WAX600 Series PoE access points.



What's in the Box:

  • M4250-16XF (XSM4216F)
  • Power cord(s)
  • Console USB Type-C and RJ45-DB9 cables
  • Rack-mounting standard brackets
  • Longer brackets for recessed mounting
  • Rubber footpads for tabletop installation
  • Installation guide
Warranty

We offer a Limited Lifetime warranty on this product from its date of purchase. For more information regarding our support, repair and warranty, please download our Warranty Guide here.

  • Primary Port Speed : 1 Gigabit
  • Number of Ports : 16 (1G/10G Fiber SFP+)
  • PoE Ports / Budget : None
  • IGMP Support : Enhanced (NETGEAR IGMP Plus™)
  • Jumbo Frame Support : Yes, up to 12kb
  • Acoustics : Fanless or 56.7dB@25ºC
  • Power Consumption : System Full Load: 47.84W/163.33Btu/hr; Standby without any port connection: 19.269W/65.78Btu/hr
  • AVB Support : Yes. Electronic license required, activation key sent via email (AVB4216F-10000S)
