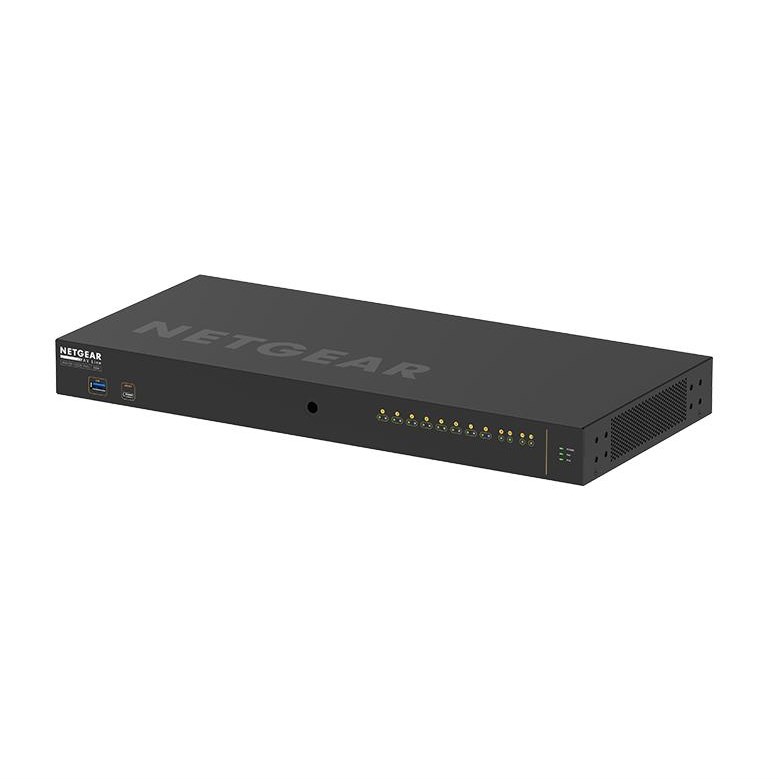

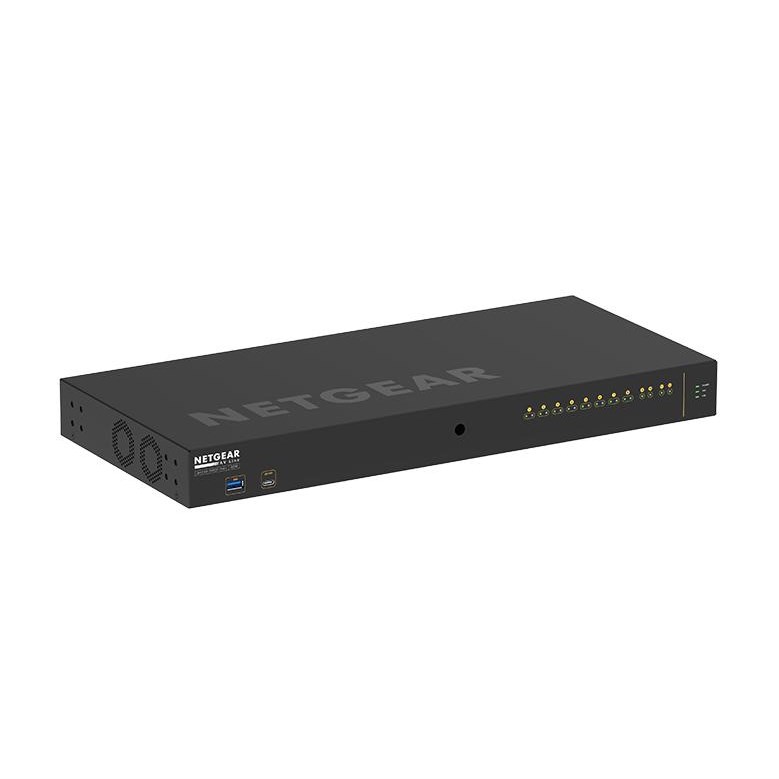

NETGEAR AV Line M4250-10G2F-PoE+ 8x1G PoE+ 125W 2x1G and 2xSFP Managed Switch

Product Code: NGR GSM4212P-100AJS

Key Features
  • 8-port 10/100/1000BASE-T (RJ45) PoE+ with 125W PoE budget
  • 2-port 10/100/1000BASE-T (RJ45)
  • 2-port 1000BASE-X (SFP)
  • 24 Gbps non-blocking fabric across 12 ports
  • Out-of-band 1G Ethernet management port
  • USB-C and RJ45 RS232 console ports and USB-A storage port

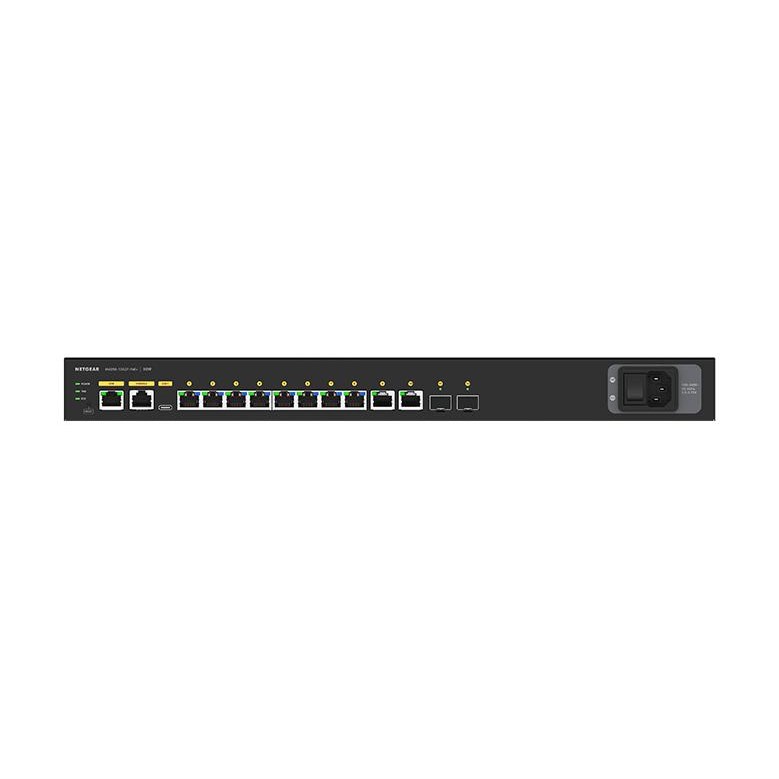

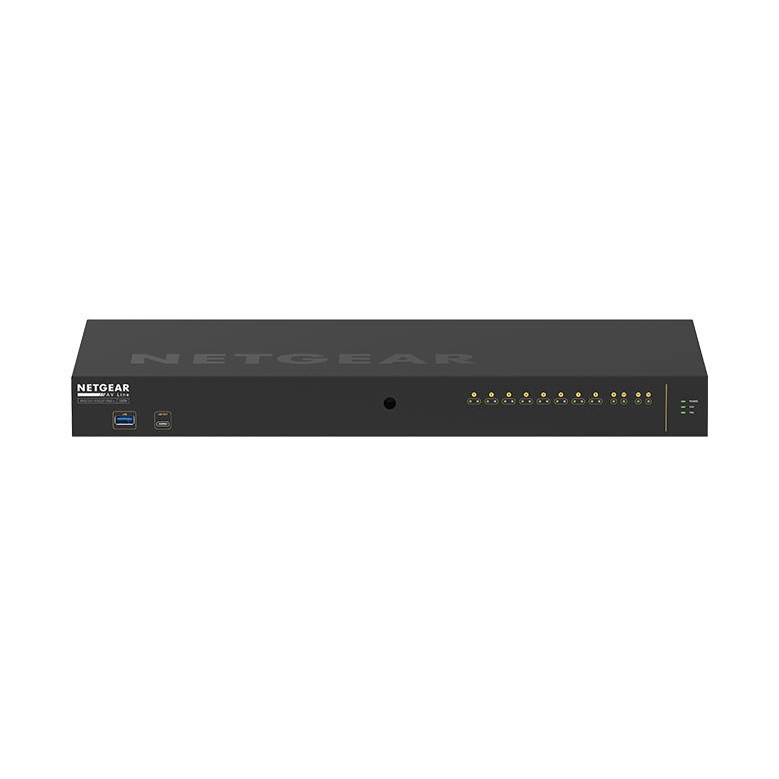

  • Front black display panel and all ports in the back
  • Possible reversed mounting with ports in the front
  • Rack-mounting standard brackets
  • Longer brackets for recessed mounting (2 inches / 5 cm)
  • Threaded hole in front (1xM10) for clamps
  • Threaded holes on the bottom (4xM5) for 50x100mm VESA plates
  • Selectable fan modes for fanless, quiet, or cool operation

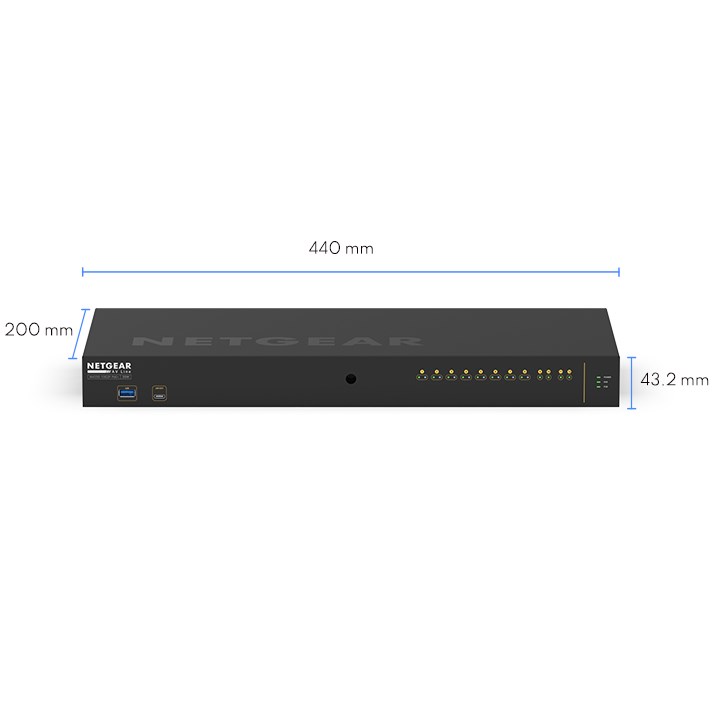

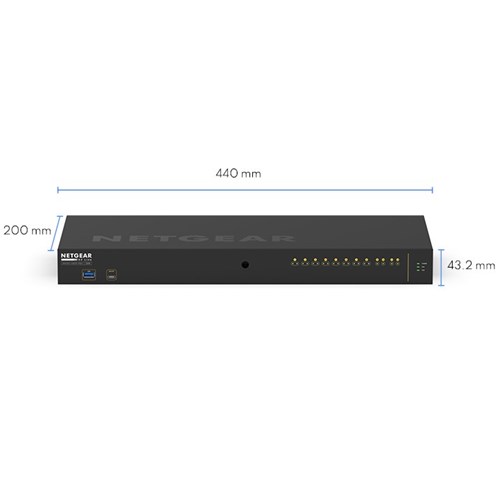

  • Dimensions (WxDxH): 440 x 200 x 43.2 mm
  • Weight: 2.85Kg (6.28lb)
$1,499.00 inc GST
(EA)
Increase value Decrease value
Qty Each (inc GST) Each
In Stock
  • Features
  • Overview
  • Technical Specs
  • Documents

NETGEAR AV Line M4250-10G2F-PoE+ 8x1G PoE+ 125W 2x1G and 2xSFP Managed Switch

Designed with input from industry professionals, this switch is engineered for 1G AV over IP. Enjoy rear-facing ports that ensure a clean integration in AV racks, and pre-configuration for out-of-the-box functionality.

POWERFUL AV SWITCHES MADE SIMPLE - Pre-configured to get you up and running faster.

Groundbreaking AV GUI - A simplified user interface makes it easy to assign configuration profiles to each port.

Multicast in an Instant - NETGEAR IGMP Plus™ provides multicast functionality right out of the box for most AV over IP applications.

Sleek, Quiet Design - Less fan noise, and mounting ears included for under-table or wall mounting.

Automatic Configuration - Auto-trunk and auto-LAG functionality auto connects with other M4250 (and M4300) switches.

Fast, Easy Configuration for AV Pros - A streamlined interface enables factory default AV settings or user-specified AV profiles to be assigned to individual ports with just a few clicks.

Focus On The Event, Not Fan Noise - Most models have quiet mode which greatly reduces fan noise, and some models are even fanless.

Designed for AV Over IP Right Out of The Box - With built-in NETGEAR IGMP Plus™, there's little-to-no setup required for flawless Video over IP delivery. Enable multicasting right out of the box.

Redefined Design Provides Mounting Flexibility - Clean lines and port activity status is featured in the front of the switch, while cabling is neatly in the back. Universal mounting options allow VESA mounting or in standard racks.

Maximize Performance With Netgear Access Points - Enable powerful, reliable WiFi at your location with WAX600 Series PoE access points.

What's In The Box:

  • M4250-10G2F-PoE+ (GSM4212P)
  • Power cord(s)
  • Console USB Type-C and RJ45-DB9 cables
  • Rack-mounting standard brackets
  • Longer brackets for recessed mounting
  • Rubber footpads for tabletop installation
  • Installation guide
Warranty

We offer a Limited Lifetime warranty on this product from its date of purchase. For more information regarding our support, repair and warranty, please download our Warranty Guide here.

  • Primary Port Speed : 1 Gigabit
  • Number of Ports : 12 (10x 1G, 2x SFP)
  • PoE Ports / Budget : 8 PoE+ (30W/port), 125W Budget
  • IGMP Support : Enhanced (NETGEAR IGMP Plus™)
  • Jumbo Frame Support : Yes, up to 12kb
  • Acoustics : Fanless or 30dB@25ºC
  • Power Consumption : With PoE: 163.9W/559.555Btu/hr; Without PoE: 17.32W/59.13Btu/hr; Standby without any port connection: 8.53W/29.121Btu/hr
  • AVB Support : Yes. Electronic license required, activation key sent via email (AVB4212P-10000S)
