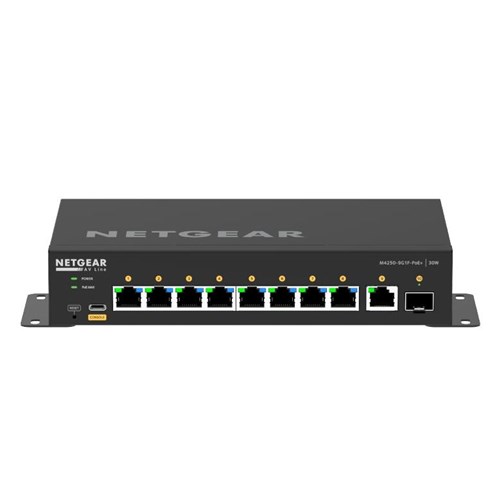

NETGEAR M4250-9G1F-PoE+ Desktop Managed Switch 8x1G PoE+ 110W 1x1G and 1xSFP AV Line

Product Code: NGR GSM4210PD-100AUS

Key Features
  • 8-port 10/100/1000BASE-T (RJ45) PoE+ with 110W PoE budget
  • 1-port 10/100/1000BASE-T (RJ45)
  • 1-port 1000BASE-X (SFP)
  • 20 Gbps non-blocking fabric across 10 ports
  • Out-of-band 1G Ethernet management port
  • USB-C console port and USB-A storage port
  • Desktop form factor for conference rooms and mobile studios
  • Mounting brackets for flanges on the side
  • Outside of the AV racks: on the wall, under a table or behind a screen
  • External power adapter using standard AC power cord (C13)
  • Totally fanless

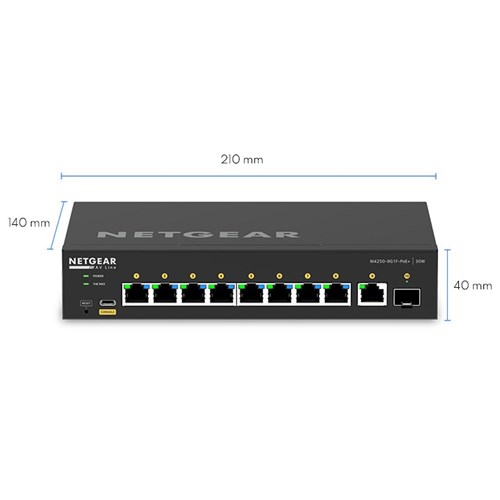

  • Switch dimensions (WxDxH): 210 x 140 x 40 mm
  • Switch weight: 0.965 Kg (2.13lb)
  • Power adapter dimensions (WxDxH): 169 x 72 x 35.5 mm
  • Power adapter weight: 0.55Kg (1.21lb)
$1,399.00 inc GST
(EA)
Increase value Decrease value
Qty Each (inc GST) Each
In Stock
  • Features
  • Overview
  • Technical Specs
  • Documents

NETGEAR M4250-9G1F-PoE+ Desktop Managed Switch 8x1G PoE+ 110W 1x1G and 1xSFP AV Line

Switching engineered for 1G AV over IP with versatile mounting options for under a table or behind a display. Pre-configured for out of the box functionality!

POWERFUL AV SWITCHES MADE SIMPLE - Pre-configured to get you up and running faster.

Groundbreaking AV GUI - A simplified user interface makes it easy to assign configuration profiles to each port.

Multicast in an Instant - NETGEAR IGMP Plus™ provides multicast functionality right out of the box for most AV over IP applications.

Sleek, Quiet Design - Less fan noise, and mounting ears included for under-table or wall mounting.

Automatic Configuration - Auto-trunk and auto-LAG functionality auto connects with other M4250 (and M4300) switches.

Fast, Easy Configuration for AV Pros - A streamlined interface enables factory default AV settings or user-specified AV profiles to be assigned to individual ports with just a few clicks.

Focus On The Event, Not Fan Noise - Most models have quiet mode which greatly reduces fan noise, and some models are even fanless.

Designed for AV Over IP Right Out of The BOX - With built-in NETGEAR IGMP Plus™, there's little-to-no setup required for flawless Video over IP delivery. Enable multicasting right out of the box.

Maximize Performance With Netgear Access Points - Enable powerful, reliable WiFi at your location with WAX600 Series PoE access points.



What's In The Box:

  • M4250-9G1F-PoE+ (GSM4210PD)
  • Power Adapter
  • Power cord(s)
  • Console USB Type-C cable
  • Flat brackets for desktop or wall mounting
  • Rubber footpads for tabletop installation
  • Installation guide
Warranty

We offer a Limited Lifetime warranty on this product from its date of purchase. For more information regarding our support, repair and warranty, please download our Warranty Guide here.

    • Primary Port Speed : 1 Gigabit
    • Number of Ports : 10 (8x 1G PoE+, 1x 1G, 1x SFP)
    • PoE Ports / Budget : 8 PoE+ (30W/port), 110W Budget
    • IGMP Support : Enhanced (NETGEAR IGMP Plus™)
    • Jumbo Frame Support : Yes, up to 12kb
    • AVB Support : Yes. Electronic license required, activation key sent via email (AVB4210PD-10000S)
    • Acoustics : Fanless
    • Power Consumption : With PoE: 132.25W/451.5Btu/hr
    • Without PoE: 9.88W/33.73Btu/hr
    • Standby without any port connection: 6.4W/22.02Btu/hr
