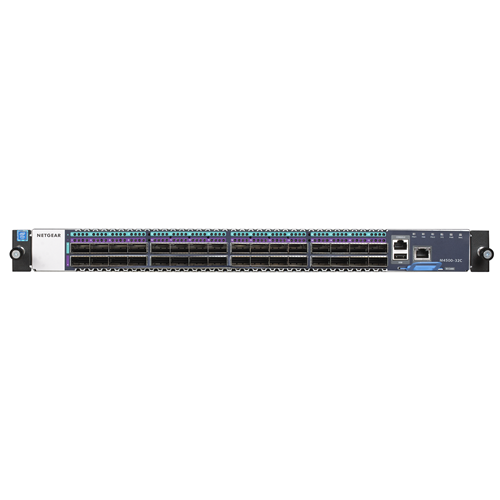

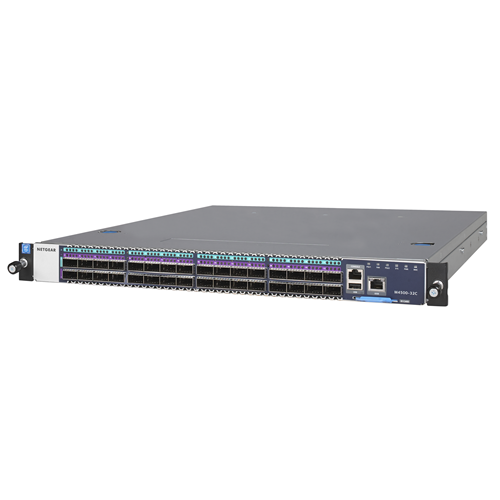

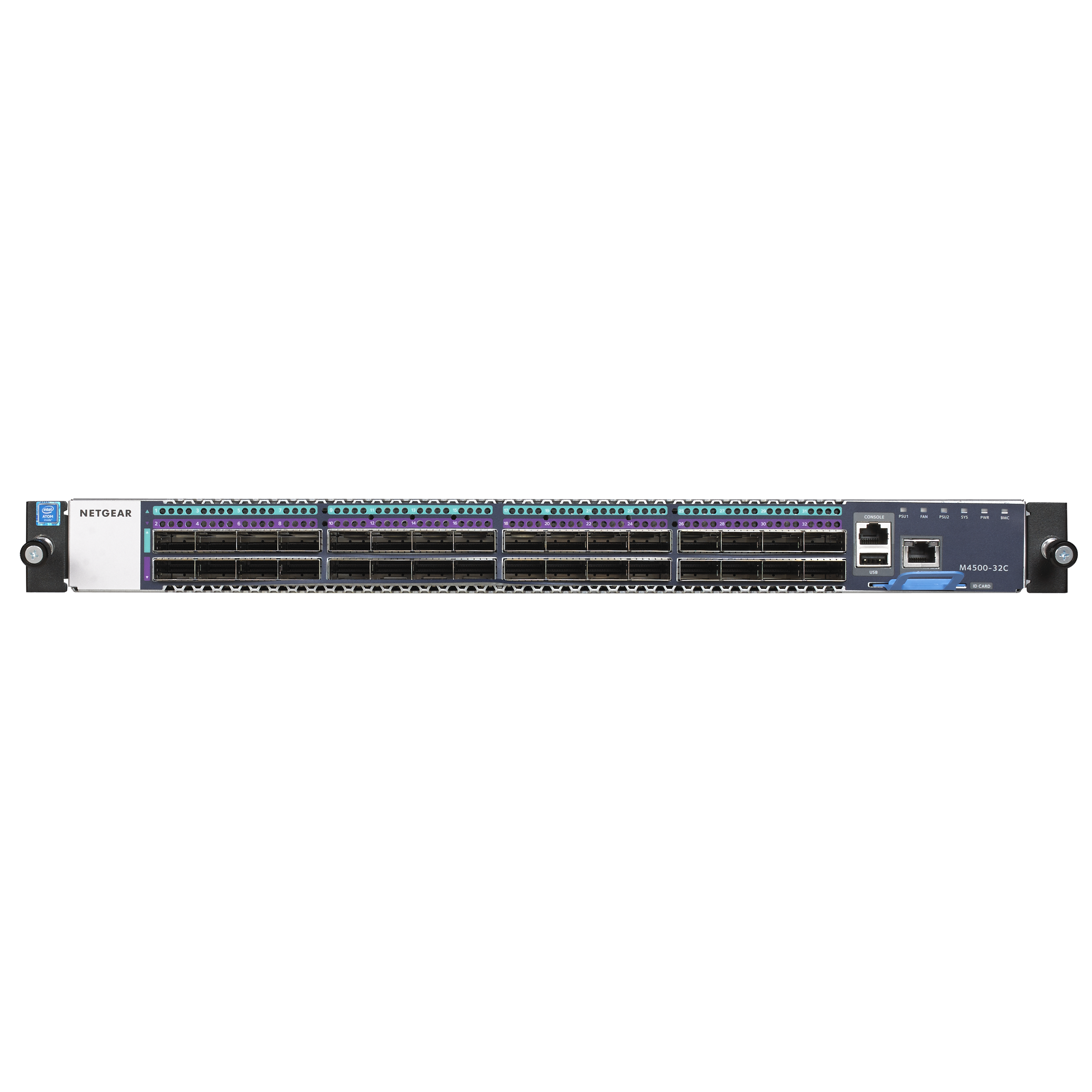

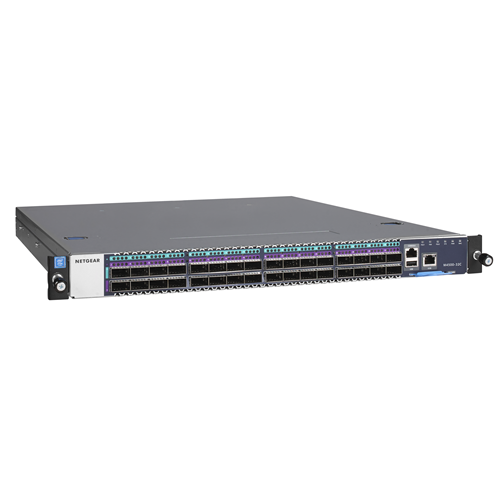

NETGEAR M4500-32C 32-Port QSFP28 100G/50G/40G Fully Managed Switch

Product Code: NGR CSM4532-100AJS

Key Features
  • The M4500-32C provides 32-port QSFP28 (100G, 50G and 40G)
  • QSFP28 ports are preconfigured for 100G
  • 6.4Tbps non-blocking fabric for 32 x 100G bi-directional
  • Two modular power supplies APS750W are pre-installed for 1+1 redundancy
  • Six modular fan trays AFT402 are pre-installed for 4+2 redundancy
  • Two mounting ears and screws for rack mounting (front)
  • One set of rail kits for rack mounting (back)
  • Out-of-band 1G Ethernet Management port
  • RJ45 RS232 console port and USB storage port
  • L2/L3/L4 rich services for AV over IP (certified SDVoE-ready)
  • Enhanced IGMP Plus for plug & play L2 Multicast between M4300/M4500 switches
  • Line-rate spine and leaf with M4500-48XF8C (48-port SFP28 and 8-port QSFP28)
  • Static and dynamic routing with VRRP, OSPF, BGP, VRF-Lite and PIM-SM/SSM
  • 64dB @25°C / 77°F
$42,999.00 inc GST
(EA)
Increase value Decrease value
Qty Each (inc GST) Each
Estimated Lead time 4-6 weeks
  • Features
  • Overview
  • Technical Specs
  • Documents

NETGEAR M4500-32C 32-Port QSFP28 100G/50G/40G Fully Managed Switch

These switches combine the configurability of a matrix switcher with the power and scalability of Ethernet to support hundreds of AV over IP endpoints. M4300 and M4500 switches offer IGMP Plus and greatly simplify system architectures at a dramatically lower price point.

BUILT FOR AV OVER IP

Pre-configured for out-of-the-box use

NETGEAR IGMP Plus™ enables instant multicast functionality for most AV over IP installations

Cost effective aggregation

Cost effective 100G aggregation and 10G access layer for AV deployments and redundant spine & leaf topologies

Simplified system architecture

Optimized for "Spine and Leaf" redundant AV installations, with or without MLAG between spine switches

High capacity for AV over IP streams

Up to 320 TX / 320 RX (10 Gigabit) nodes all line rate with each other in a redundant spine and leaf architecture

VLAN configuration flexibility

IGMP Plus is default on VLAN 1 out of the box and can be configured on another VLAN for automatic IGMP across switches on that VLAN

Power and fan redundancy

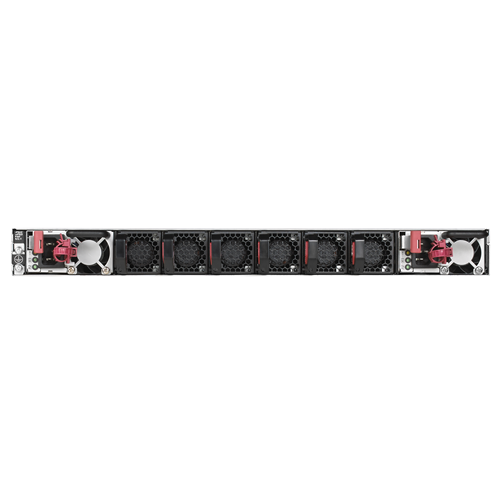

2 power supply units (APS750W) and 6 redundant fan trays (AFT402) pre-installed for 1+1 power and 4+2 fan redundancy

SOFTWARE FEATURES:

Secure operation

Advanced IPv4/IPv6 security including malicious code detection, DHCP Snooping, IP Source Guard, and Control Plane Policing (CoPP)

Fault tolerance

Selectable Port-Channel / LAG (802.3ad - 802.1AX) L2/L3/L4 hashing for fault tolerance and load sharing with any Ethernet channeling

Robust link aggregation

Up to 64 Link Aggregation Groups (LAG, Port-Channel, LACP) with 32 ports per LAG and Multi-chassis Link Aggregation (MLAG)

Comprehensive routing

IPv4/IPv6 static and dynamic routing including IP Multinetting/CIDR, PBR, VRRPv2, OSPFv3, PIM-SM6, BGP4, VRF-Lite

Security & Prioritization

Advanced classifier-based, time-based hardware implementation for L2 (MAC), L3 (IP) and L4 (UDP/TCP) security and prioritization

Multicast routing

High performance IPv4/IPv6 multicast routing with PIM-SM and PIM-SM6 associated with unicast static routes, or other L3 protocol

ADVANCED FUNCTIONS:

Advanced Layer 3 features

Includes IP Multinetting/CIDR, Static, PBR, VRRPv2, OSPFv3, PIM-SM, VxLAN, BGP4, VRF-Lite

Link Dependency

Ability to enable or disable ports based on the link state of different ports for complete link dependency

Configuration update simplicity

Non-Disruptive Configuration for applying a new configuration file without disrupting the operation of unchanged features

Extensive management capabilities

Industry standard SNMP, RMON, MIB, LLDP, AAA, sFlow and RSPAN remote mirroring implementation

OOB and CLI

Service port for out-of-band 1 Gigabit Ethernet management (OOB) with industry standard command line interface (CLI) only

Local management console

Standard RS232 straight-through RJ45 for local management console (USB 2.0 to RS232 converter with PL203 chipset is advised)



What's In The Box:

  • Switch with two power supplies APS750W and six fan trays AFT402 already installed.
  • Console cable with one DB9 female connector and one RJ-45 serial connector.
  • Power cord(s).
  • Two mounting ears and screws for rack mounting (front).
  • One set of rail kits for rack mounting (back).
  • Installation guide



Warranty

We offer a Limited Lifetime warranty on this product from its date of purchase. For more information regarding our support, repair and warranty, please download our Warranty Guide here.

  • Model Description : M4500 Managed Switch with 32x100G QSFP28 ports
  • Acoustics : 64.0dB @ 25°C (77°F) - the noise is reduced when the two PSUs connect to a power source
  • Power Consumption (Max) : 426 Watts
  • 25G SFP28 Ports : N/A
  • 100G QSFP28 Ports : 32 QSFP28 ports (1x100G default mode, other modes can be 1x50G, 1x40G)
  • PSU and Fans : 2 modular Power Supply Units and 6 modular Fan Trays come pre-installed
  • Management : CLI only (local console, telnet port 1223 and SSH port 1234)
  • Management Ports : 1G Ethernet service port for out-of-band management (OOB, RJ45). RS232 straight-through serial RJ45 for local management console
  • Form Factor : Full width 1U (508mm depth) with two mounting ears (front) and rail kits (back)
  • Dimensions (WxDxH): 440 x 508 x 43.2 mm.
  • Weight: 9.78 Kg (21.54lb)
