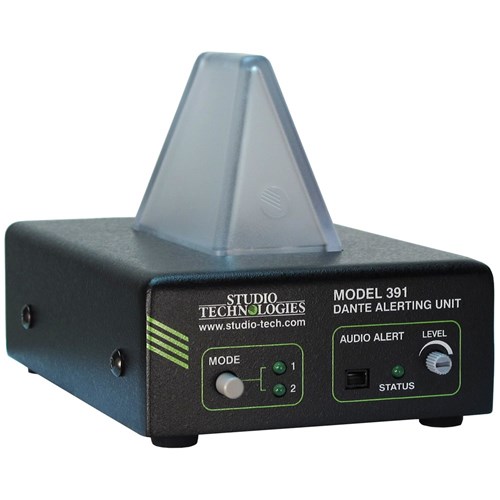

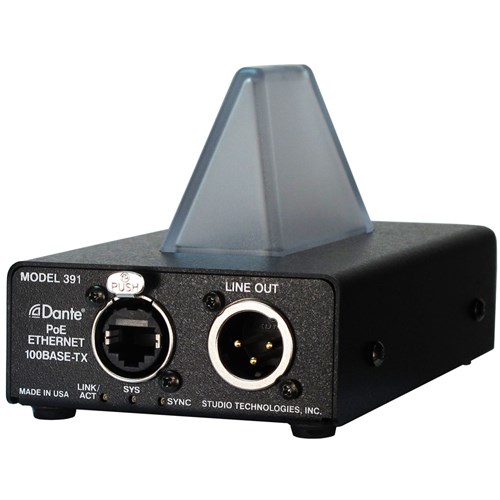

The Studio Technologies Inc. M391 Model 391 Dante® Alerting Unit builds on the limited capabilities of the "beacon" or a "strobe" devices that are ubiquitous with analog party-line (PL) intercom systems and adds a broad range of new and enhanced features.
The Model 391 will respond to 20 kHz tone "call" signals that are commonly utilized in both legacy analog and modern digital party-line intercom circuits. Upon detecting a call signal the Model 391 can provide a visual indicator, enable an audible "buzzer" output, and even activate an analog line output. Each of the Model 391's alerting resources can be individually optimised to meet the unique requirements of many applications. The STcontroller personal computer application is used to select from a wide range of operating choices.
The compact, portable unit is compatible with Dante audio-over-Ethernet installations and requires only an Ethernet connection with Power-over-Ethernet (PoE) capabilities for operation. Typical Model 391 applications will include use in theaters, sports facilities, corporate events, and broadcast studios.
o Type: Dante audio-over-Ethernet
o AES67-2013 Support: Yes
o Dante Domain Manager (DDM) Support: Yes
o Bit Depth: up to 24
o Sample Rate: 48 kHz
o Number of Receiver (Audio Input) Channels: 2
o Dante Audio Flows: 2 receiver
o Type: 100BASE-TX, twisted-pair Ethernet, Power-over-Ethernet (PoE) supported
o Data Rate: 100 Mb/s (10 Mb/s and 1000 Mb/s "GigE" Ethernet NOT supported)
o Method: in-band tone, receiver channel 1 or channel 2, selectable
o Tone Characteristics: 20 kHz ±800 Hz
o Minimum Level: –27 dBFS
o Detect Time: 10 milliseconds, maximum
o Type: qty 5, RGB (red-green-blue) LEDs
o Color: Adjustable, 20 standard colors and Windows® color picker
o Intensity: Adjustable
o Action: Adjustable
o Type: Electromagnetic buzzer
o Frequency: 2.7 kHz, nominal
o Level: Adjustable. 2 level ranges
o Maximum Level: 85 dB SPL @ 3.9" (10 cm)
o Type: Analog
We offer a 3 year warranty on this product from its date of purchase. For more information regarding our support, repair and warranty, please download our Warranty Guide here.
