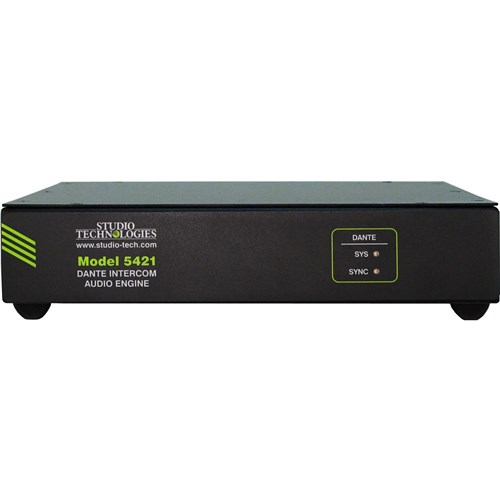

The Model 5421 Dante® Intercom Audio Engine is a high-performance, cost-effective, flexible solution for creating party-line (PL) intercom circuits. It's directly compatible with the Studio Technologies' range of 1-, 2-, and 4-channel Dante-enabled beltpacks and other interface-related products. The unit is suitable for use in fixed and mobile broadcast facilities, post-production studios, commercial and educational theater environments, and entertainment applications.
Only a Gigabit Ethernet network connection with Power-over-Ethernet (PoE) support is required for the Model 5421 to provide a powerful resource in a variety of Dante applications. Front- and back-panel LEDs provide operating status indications. The Studio Technologies' STcontroller software application allows personnel to view and configure key operating parameters. The unit's lightweight "1/2-rack" enclosure can be used stand-alone or mounted in one space (1U) of a standard 19-inch rack enclosure with an optional rack-mount installation kit. To meet the latest interoperability standard the Model 5421's Dante implementation meets the requirements of AES67 as well as supporting the Dante Domain Manager (DDM) application. Using DDM, compliance with ST 2110-30 may be possible.
The Model 5421 provides one 16-channel audio engine which can be configured to provide from one to four "virtual" intercom circuits. The term "audio engine" was selected to describe a set of audio input, processing, routing, and output resources that can be configured to support specific intercom requirements. Unlike general-purpose Dante digital matrix devices, the Model 5421 is optimized to allow direct support for theater, small broadcast, and general intercom applications.
For further information please refer to the attached data sheet.
We offer a 3 year warranty on this product from its date of purchase. For more information regarding our support, repair and warranty, please download our Warranty Guide here.
Applications: designed to create from one to four virtual party-line (PL) circuits in Dante audio-over-Ethernet environments
Engine Group Options:The following group sizes can be selected:16 (one group)12, 4 (two groups)8, 8 (two groups)8, 4, 4 (three groups)4, 4, 4, 4 (four groups)
Audio Performance:Internal Digital Audio Processing: 24-bit, fixedInput-to-Output Audio Processing Latency: <100 uSecAuto Mix: sophisticated FPGA-based algorithm provides enhanced party-line (PL) audio intelligibility (selectable on or off)
Network Audio Technology:Type: Dante audio-over-Ethernet (as known as Dante audio-over-IP)AES67-2013 Support: yes (selectable on or off)Dante Domain Manager (DDM) Support: yesClock Source: Dante network or internal (can serve as clock master)Bit Depth: 16, 24, or 32Sample Rate: 48 kHzNumber of Dante Receiver (Input) Channels: 16Number of Dante Transmitter (Output) Channels: 16Number of Dante Flows: 16 receiver, 16 transmitter
Network Interface:Type: 1000BASE-T (Gigabit, GigE, or GbE) per IEEE 802.3ab, twisted-pair Ethernet, Power-over-Ethernet (PoE) supportedData Rate: 1000 Mb/s (10 Mb/s not supported; 100 Mb/s supported but not optimal)Auto MDI/MDI-X Support: yesNIC Status LEDs: one link and one activity
Power Source:Power-over-Ethernet (PoE): class 2 (low power, ≤6.49 watts) per IEEE® 802.3af
Configuration: requires Studio Technologies' STcontroller software application, version 2.06.00 and later
Connectors:Ethernet: 1, RJ45USB: type A receptacle (used only for updating application and FPGA firmware)
Software Updating: USB flash drive used for updating application and FPGA firmware; Dante Controller or Dante Firmware Update Manager applications can be used for updating Dante interface firmware
Front Panel LEDs: 2, dual-colorFunctions: provides indication of status of Dante connectivity
Environmental:Operating Temperature: 0 to 50 degrees C (32 to 122 degrees F)Storage Temperature: –40 to 70 degrees C (–40 to 158 degrees F)Humidity: 0 to 95%, non-condensingAltitude: not characterized
Dimensions – Overall:8.7 inches wide (22.1 cm)1.72 inches high (4.4 cm)8.3 inches deep (21.1 cm)
Mounting Options: single-unit (RMBK-11) and dual-unit (RMBK-12) rack-mount installation kits, purchased separately. Each uses one space (1U) in a standard 19-inch rack.
Weight: 1.3 pounds (0.59 kg); rack-mount installation kits add 0.2 pounds (0.09 kg)
Specifications and information subject to change without notice.
