JBL VTX-V25-AF - Array Frame

Product Code: JBL VTX-V25-AF

Key Features
  • Compatible with VTX V25, VTX V25-CS, VTX V25-II, VTX V25-II-CS and VTX S28
  • 9 pick points available for single point suspension
  • Optional Extension Bar available
  • Flexible front-to-back or side-by-side pick point options
  • Supports up to 24 cabinets (array geometry dependent)
  • Can be used for ground stack applications
  • Pick point shackle size: 5/8” or 3/4”
Enquire Now
Qty Each (inc GST) Each
Stock on order
  • Features
  • Overview
  • Technical Specs
  • Documents

JBL VTX-V25-AF - Array Frame

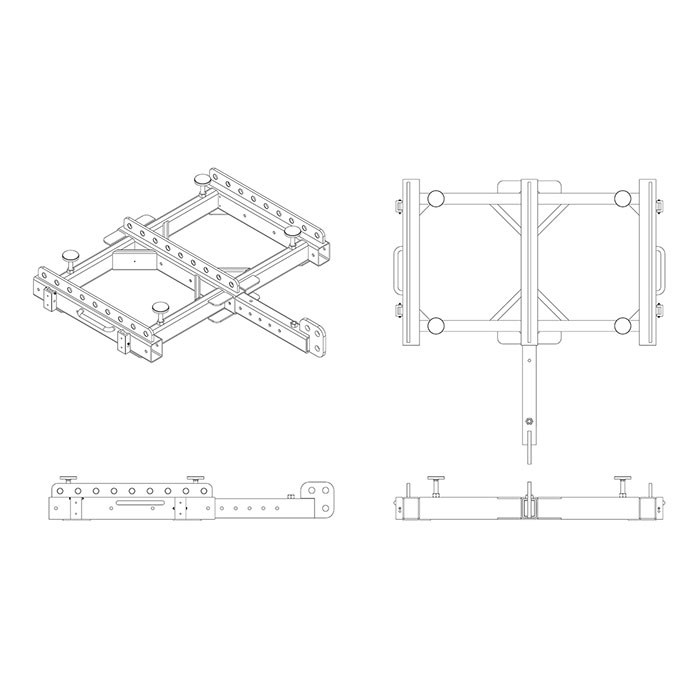

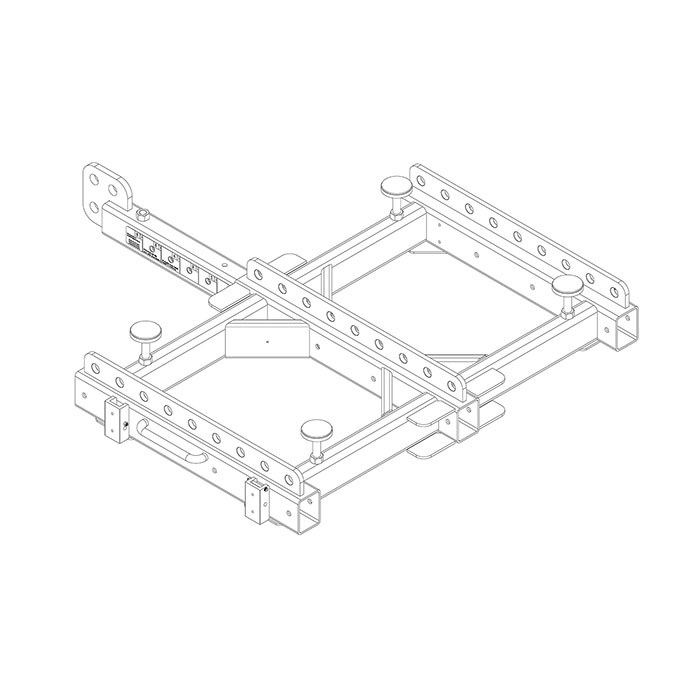

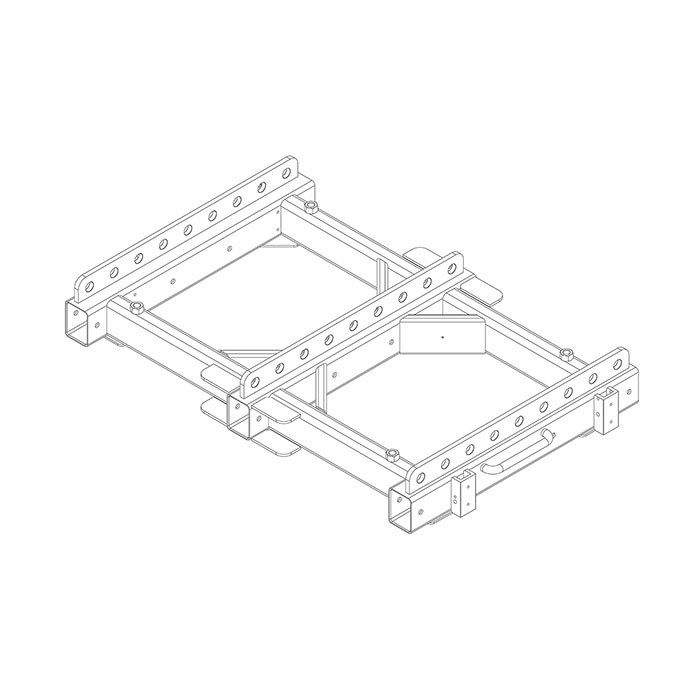

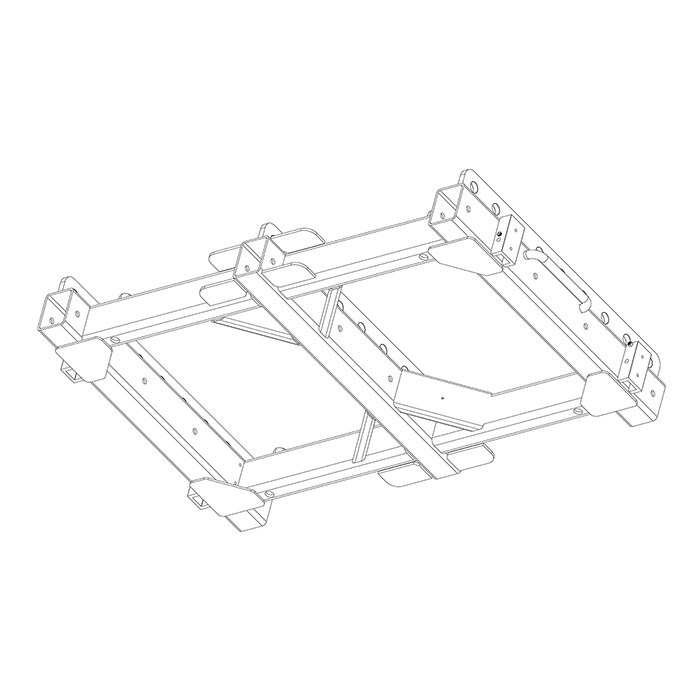

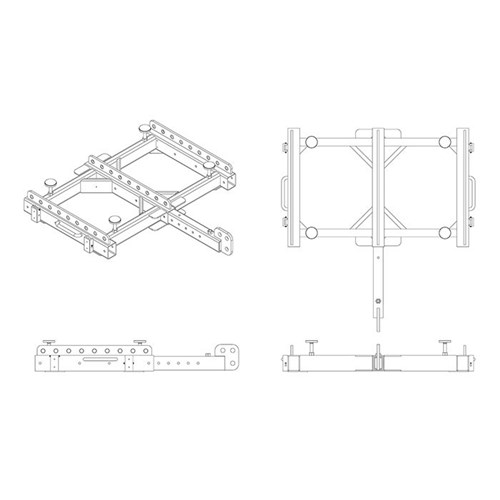

Array Frame used for suspending or ground stacking VTX V25 series enclosures. The VTX-V25-AF is also compatible with the VTX S28 dual 18” subwoofer enclosures. Includes height-adjustable leveling feet for ground stack applications. Optional VTX-V25-AF-EB extension bar available.

Included:

  • 1 x VTX-V25-AF
  • 4 x height-adjustable leveling feet for ground stack applications
  • 4 x Quick Release Pins (QRP) for securing top enclosure to the frame
Warranty

We offer a 2 year warranty on this product from its date of purchase. For more information regarding our support, repair and warranty, please download our Warranty Guide here.

Trade Terms
This item is a firm order product, meaning it cannot be cancelled or returned once the purchase order is processed, except in cases of defect. Please verify that part numbers and descriptions are accurate before placing your order. For any confirmation or additional information, please contact AV Sales at 1800 00 77 80.
Construction:  Steel
Finish Black Powder Coat
Dimensions (H x W x D): 169.9 mm x 1225.6 mm x 762.0 mm
Net Weight 80.3 kg
