JBL VTX-A8-AF-EB Array Frame Extension Bar

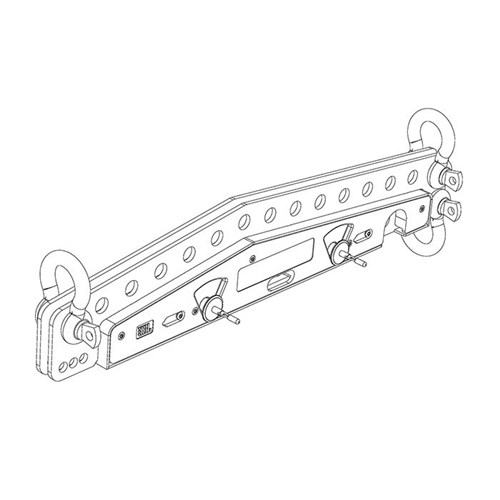

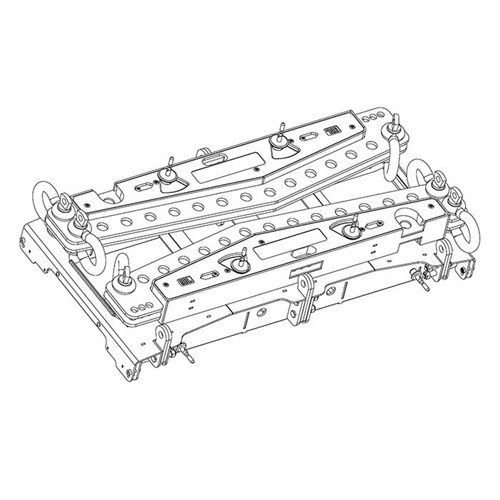

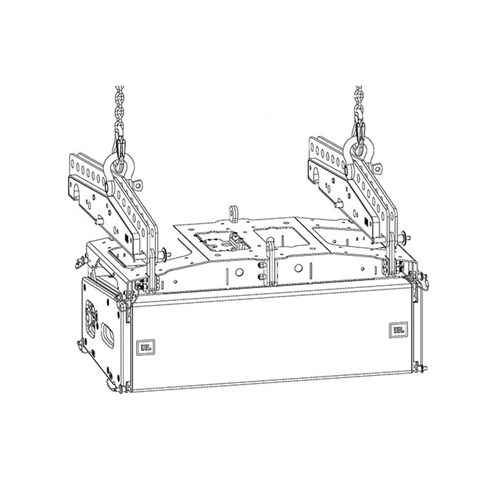

The VTX A8 AF EB extension bar was designed to operate in conjunction with the VTX A8 AF array frame to facilitate either single-point, two-point front-to-back or side-by-side suspension methods. The extension bar is compatible with 5/8-inch shackles and can be stored above the array frame during transportation. The extension bar can extend to the front or the rear of the frame to accommodate both up-tilt and down-tilt aiming options. Three connection points are available for attaching the extension bar to the array frame, allowing for precise control of shackle positioning for single-point applications. One VTX A8 AF EB extension bar is included with the purchase of an array frame and additional extension bars can be purchased to facilitate side-by-side suspension. Configurations and load conditions for using the VTX A8 AF EB can be obtained using the LAC-III software application.
Includes:
- (1) VTX A8 AF EB Extension Bar
- (3) 5/8 in Shackles
- (4) VTX Extension Bar Attachment Brackets
- (1) Set of Screws for Bracket Installation
