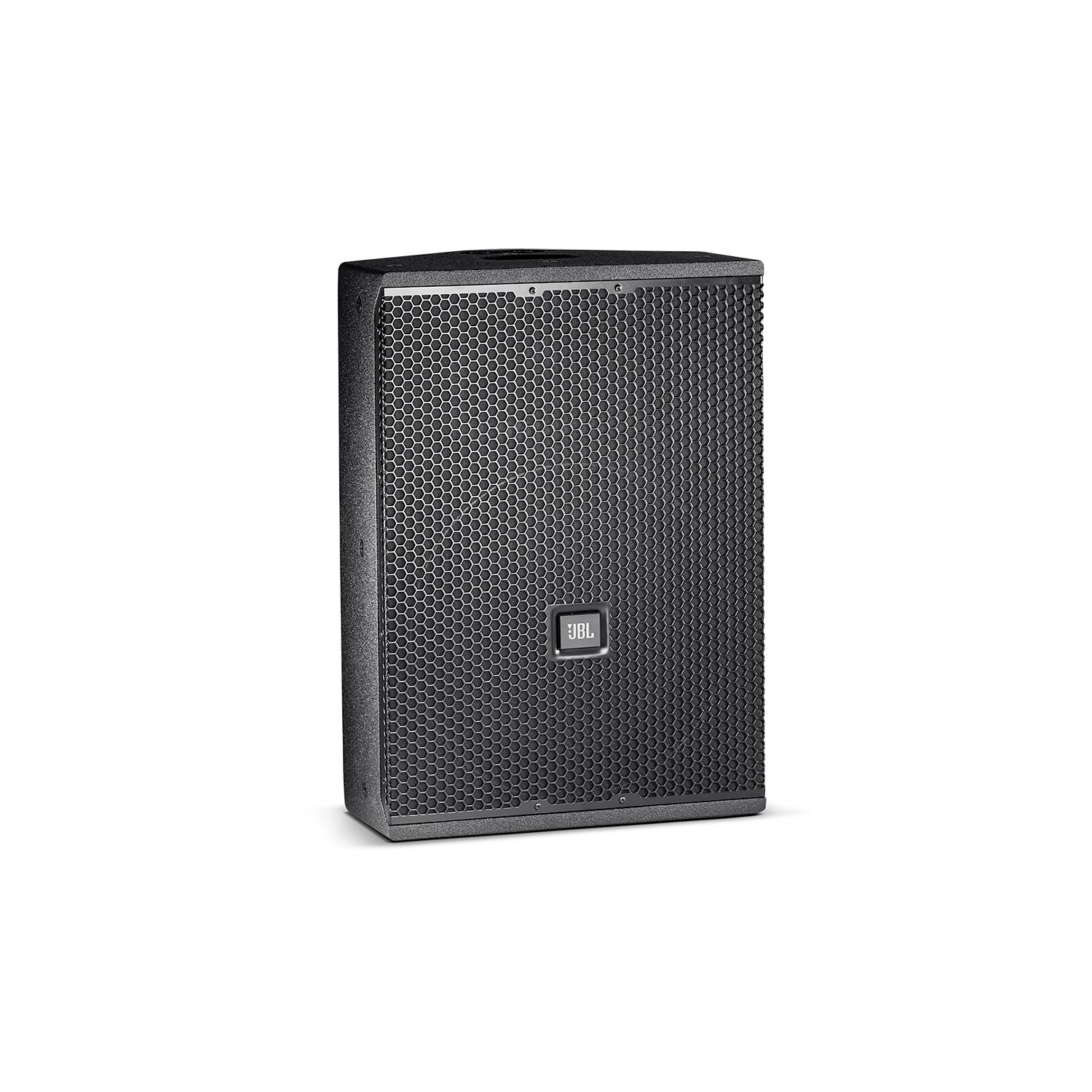

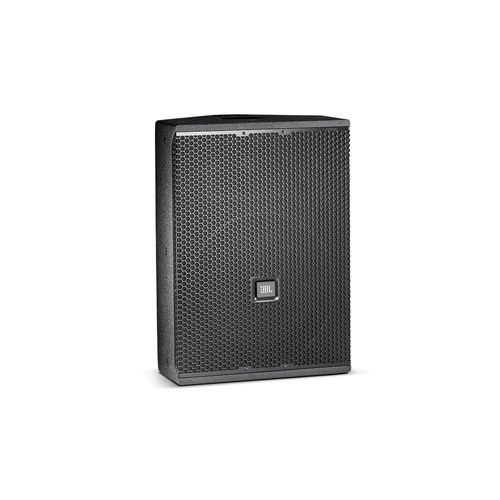

JBL VTX-F15 - 15-inch Bi-Amplified 2-Way System

Product Code: JBL VTX-F15

Key Features

The VTX F series is a line of multi-purpose loudspeakers designed to give sound production companies a variety of flexible options for deploying high-quality audio, either as a stand-alone FOH system, a satellite and subwoofer system (with companion VTX F18S), or on-stage floor monitor and fill speaker.

Enquire Now
Qty Each (inc GST) Each
Estimated Lead time Contact Us
  • Features
  • Overview
  • Technical Specs
  • Documents

JBL VTX-F15 - 15-inch Bi-Amplified 2-Way System

VTX F15 delivers studio monitor sound quality in a premium two-way multipurpose enclosure featuring point and shoot flexibility along with patented D2 Dual Diaphragm Dual Voice Coil compression driver and Differential Drive® LF technologies employed in VTX V25 and the M2 Studio Reference Monitor. Ideal for sound reinforcement rental companies, live performance venues, theatrical sound design, performing arts centers, high-impact A/V presentations, houses of worship and themed entertainment venues, VTX F15 is a highlyversatile sound design tool.

Features:

  • D2430K D2 Dual Diaphragm Dual Driver
  • Progressive Transition Waveguide (90° x 50°)
  • Bi-Amplified 2-Way System
  • BSS Audio OmniDriveHD V5 Processing
  • For use with Crown ITechHD and Crown VRack
  • JBL HiQnet Performance Manager Control™

Technology:

D2 DUAL DIAPHRAGM DUAL VOICE COIL COMPRESSION DRIVER - The revolutionary D2 Dual Driver dramatically improves the sound and performance of high frequencies, providing an extreme output advantage over conventional systems with significantly higher array power, reduced distortion, double the number of voice coils and more than double the power handling. This results in a dramatic increase in pure high frequency sound pressure levels in the same physical footprint with a 30% reduction in weight.

DIFFERENTIAL DRIVE® TECHNNOLOGY - Enhanced Performance and Dramatically Reduced Driver Weight - JBL's exclusive dual voice coil, dual magnetic gap Differential Drive technology is at the core of all VTX models, dramatically reducing driver weight while greatly enhancing all critical performance parameters: frequency response, power output and distortion.

System Integration:

With the VTX Series you are not just using a product, you are gaining access to an expert system. Tools for system design and all the components to analyze, configure, set up and control a VTX system are all part of the JBL commitment to total system integration and support. The goal is maximum efficiency and the highest possible level of performance in any venue, anywhere in the world.

Warranty

We offer a 2 year warranty on this product from its date of purchase. For more information regarding our support, repair and warranty, please download our Warranty Guide here.

System Type 2-Way Premium Multi-Purpose Loudspeaker with 15” Differential Drive® Woofer and D2 Dual Driver

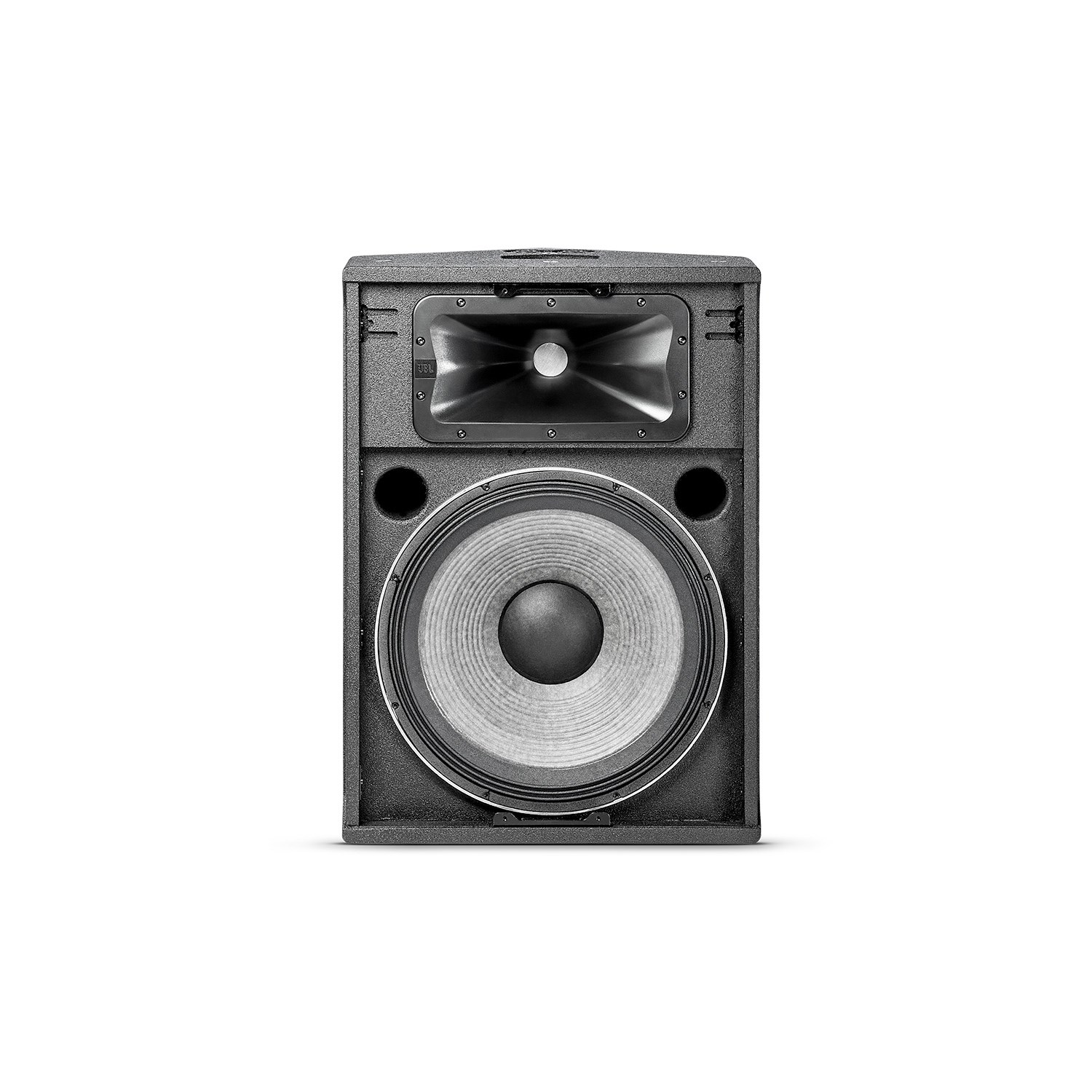

Components 1 x 2265H 15" Diameter Dual (3 in) Voice Coil, Neodymium Differential Drive®, Direct Cooled™ Transducer 1 x D2430K D2 Dual Diaphragm Dual Voice Coil Compression Driver
Coverage Pattern 90 x 50 degrees
Frequency Range (-10dB) 43 Hz - 21.5 kHz (short throw mode, free field) 42 Hz - 21.5 kHz (monitor mode, half-space)
Frequency Response (±3 dB) 59 Hz - 20 kHz (short throw mode, free field) 58 Hz - 20 kHz (monitor mode, half-space)
Sensitivity 98 dB LF, 108 dB HF
Nominal Impedance LF = 8 ohms
HF = 20 ohms
Transducer Power Rating (AES 2 hour) 1000W LF, 200W HF cont 4000W LF, 800W HF peak
Dimensions (H x W x D) 640.1mm x 457.2mm x 327.7mm (25.2in x 18in x 12.9in)
Net Weight (each) 22.9 kg (50.5 lbs)
Maximum Peak Output *2 134 dB (Preset: VTX F15 80)
LF Driver 1 x 15" Diameter Dual (3 in) Voice Coil, Neodymium Differential Drive®, Direct Cooled™ Transducer
HF Driver 1 x D2430K D2 Dual Diaphragm Dual Voice Coil Compression Driver

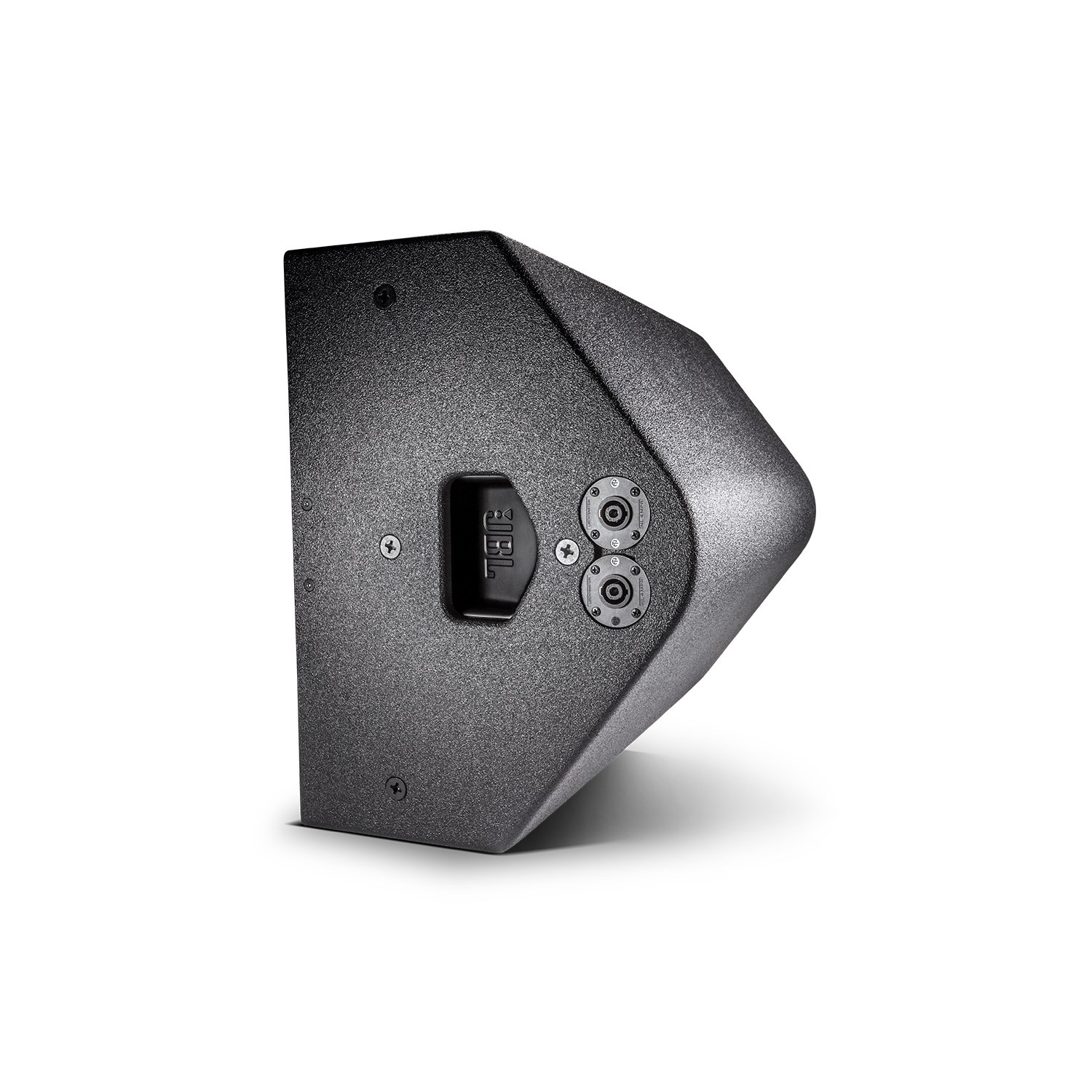

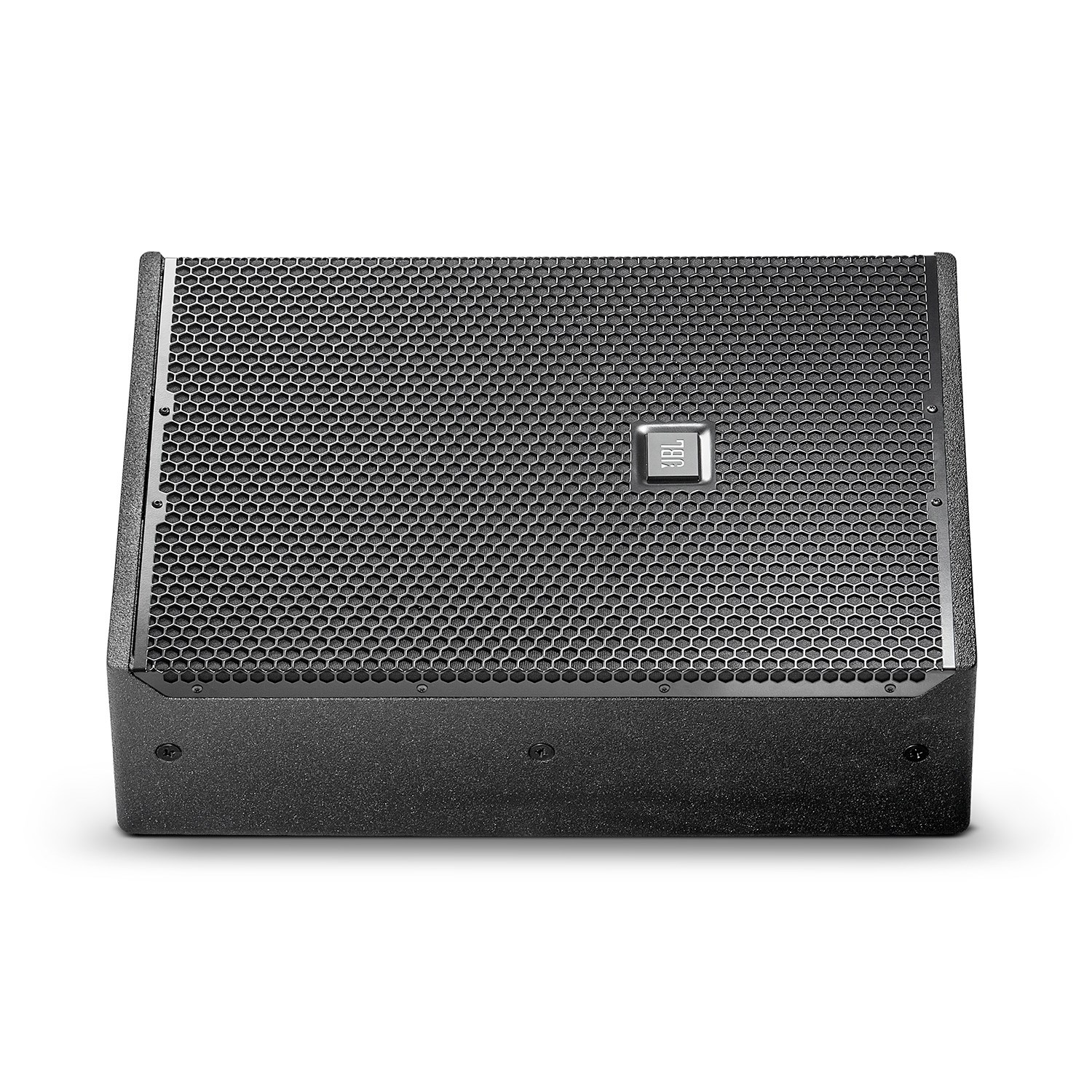

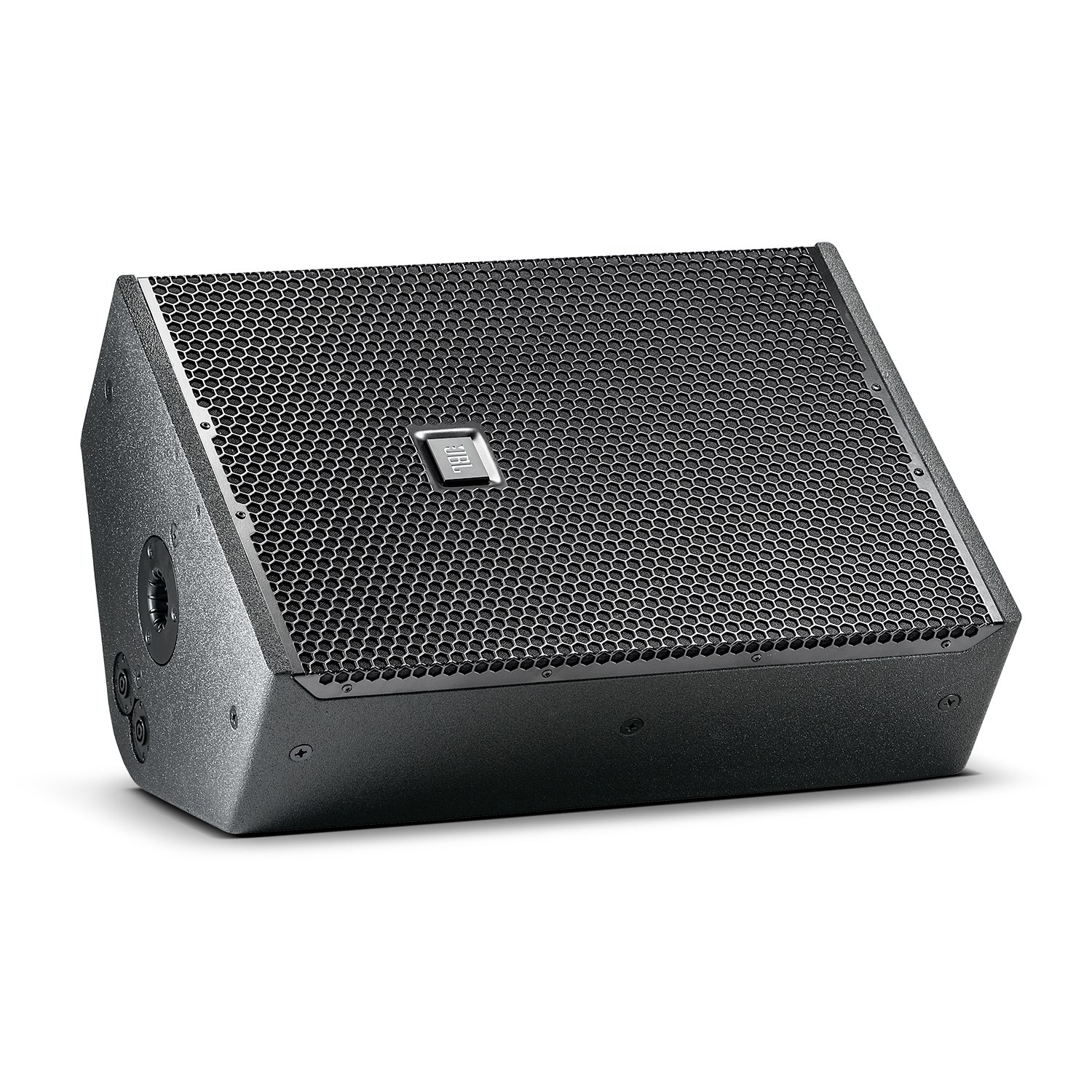

Enclosure Symmetrical stage monitor (53 degree angle); 18 mm, 11-ply Baltic birch plywood; black DuraFlex™ finish; integral recessed handle
Suspension / Mounting Integral pole mount socket (35 mm diameter); 16 x M10 mount points; Optional U-bracket and extension rod (SS5-BK) accessories available
