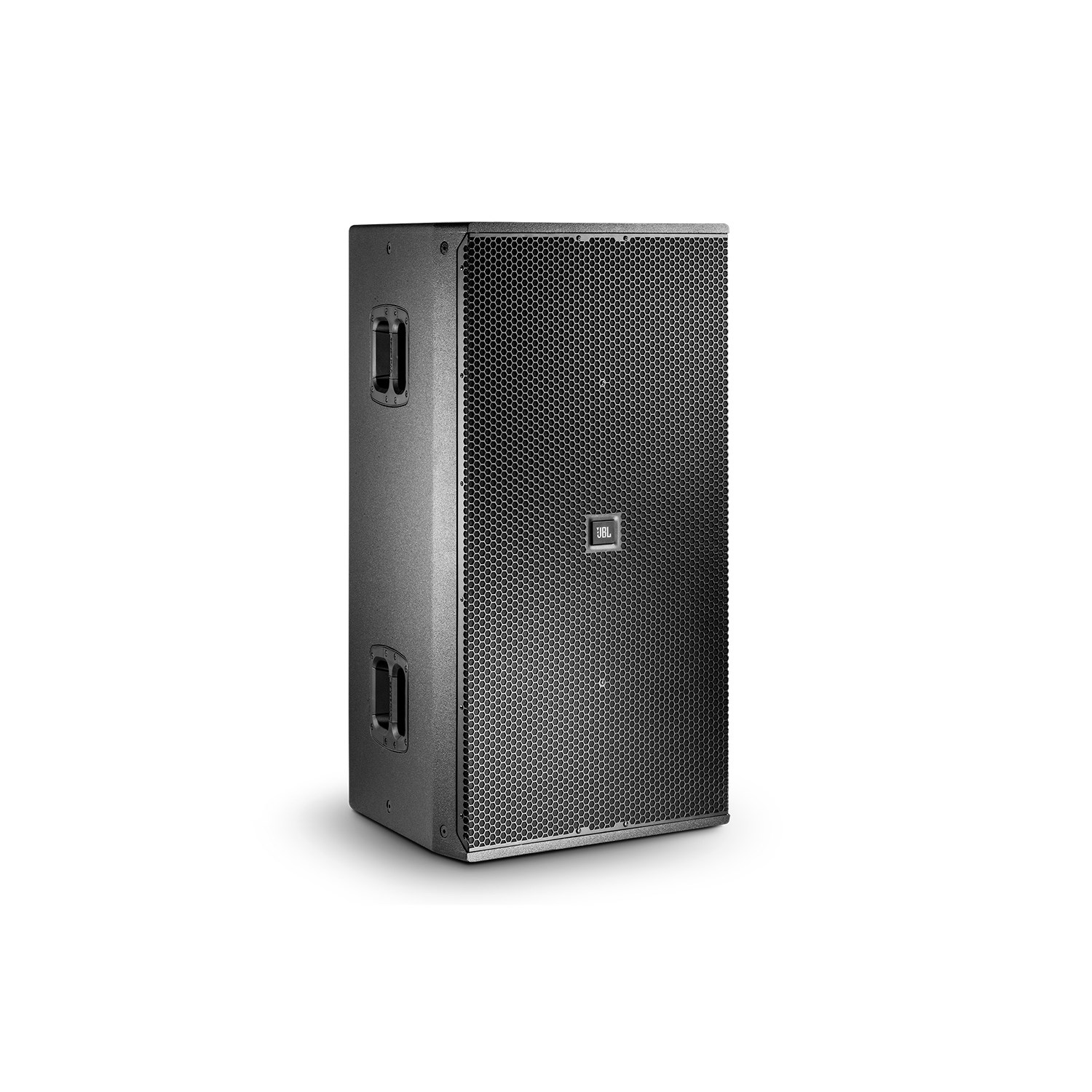

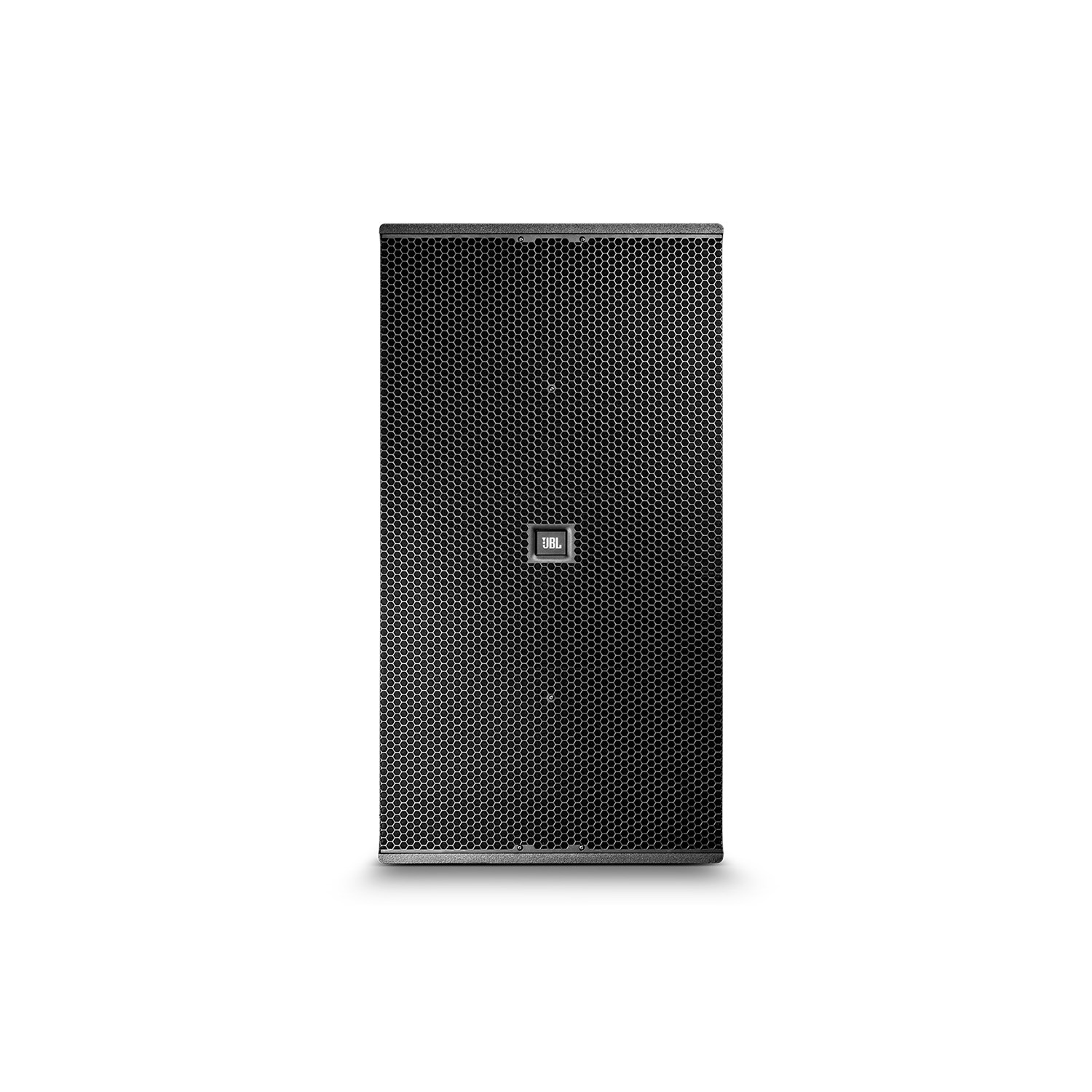

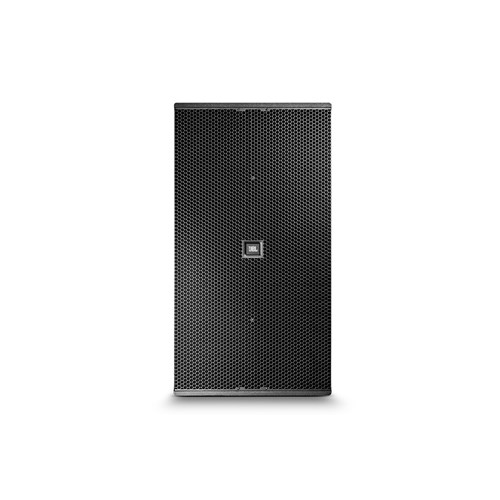

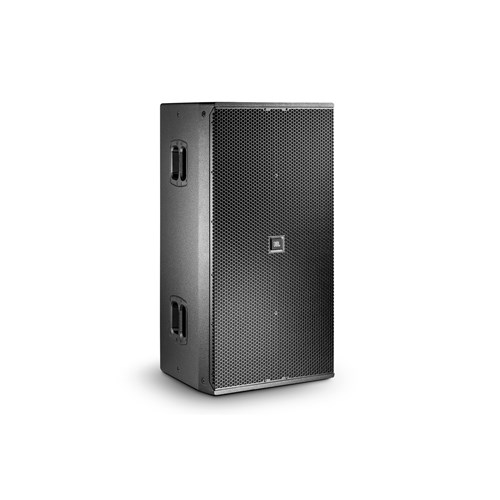

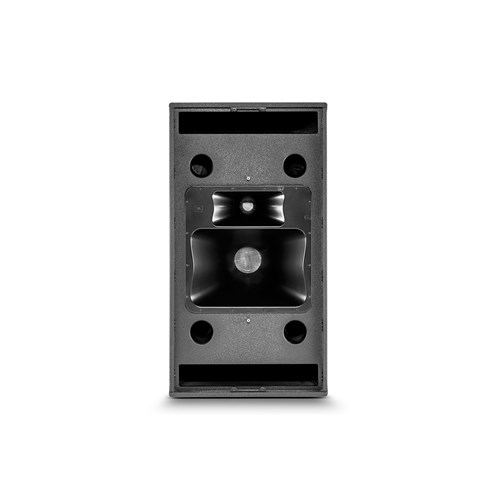

High Performance Dual 15-inch 3-Way Loudspeaker with 90x50 coverage patterns.
The VTX F35 was designed to address a wide range of applications where high-impact, high-fidelity audio needs to be delivered with the form factor of a trapezoidal full-range system. The F35 is the go-to choice for customers needing high-power side-fills, mains speakers, or a high-performance point-source solution to complement to larger VTX system systems. This system has an exceptional power-toweight ratio thanks to its lightweight, Differential Drive 15” and 8” transducers, and benefits from proven JBL technologies, including a multi-band Progressive Transition Waveguide and the high-performance D2 high-frequency driver. The F35 ships with a detachable front-face dolly-board as standard and it is available in 60x40 or 90x50 coverage patterns. The cabinet is equally suitable for stackable and suspendable configurations thanks to the integrated M10 mounting points. The F35 is acoustically compatible with all other VTX Series systems, and it’s truly a flexible design that delivers uncompromising performance in a compact package.

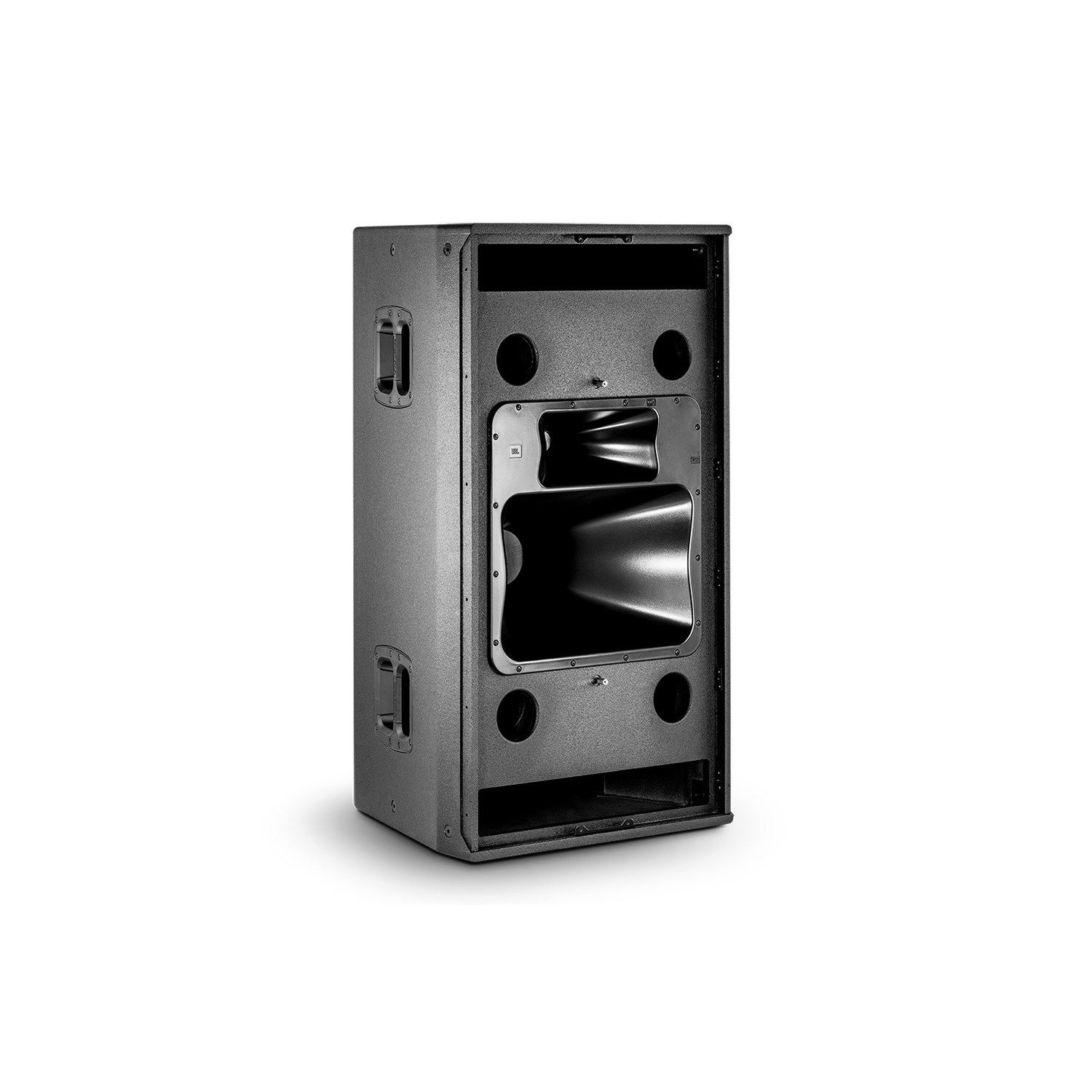

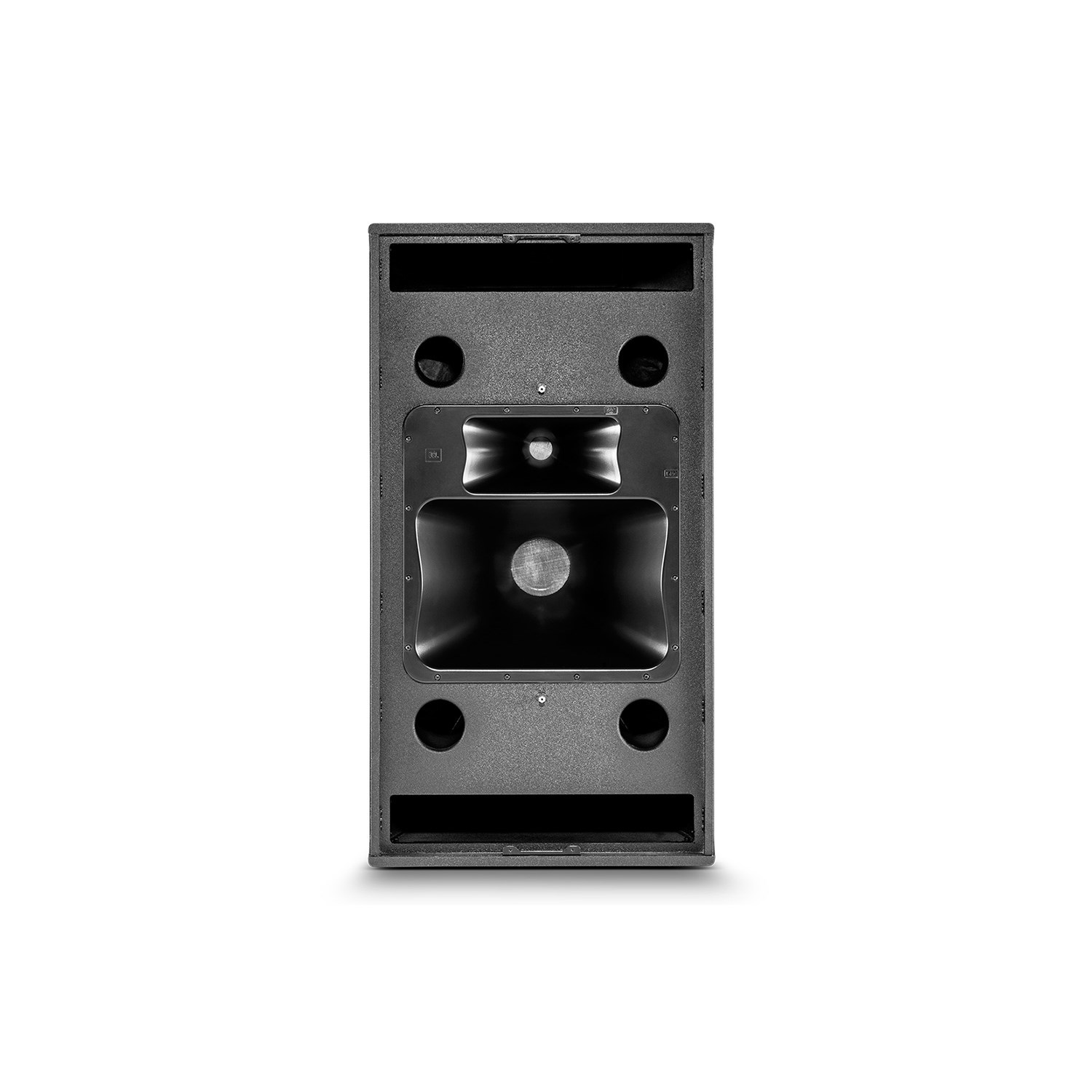

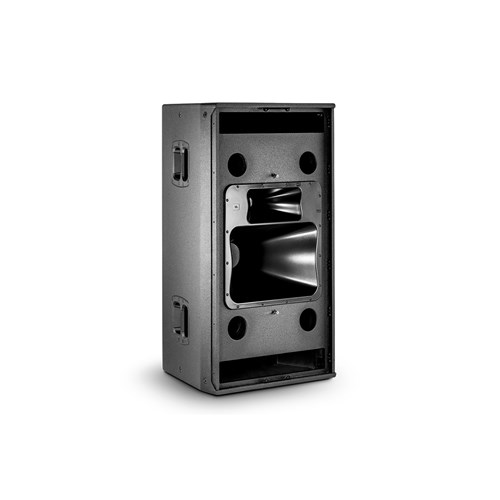

The F35 Progressive Transition Waveguides provide excellent coverage control and are rotatable so the loudspeaker system can be used in either the vertical or horizontal orientation. The distinctive feature of PT Waveguides is the lack of a traditional diffraction slot. Instead, the sidewalls transition smoothly from the driver’s throat through to the rectangular mounting flange. This translates to optimal frequency response superbly low distortion. The beamwidth and directivity are optimal in the horizontal plane while the vertical beamwidth was optimized to match with F35 low frequency and midrange transducers.
The VTX F35 features a full 3-way design and utilizing 4-channels of amplification and DSP. The F35 was design to work best with Crown Audio I-Tech 4x3500HD amplifier and up to three cabinets can be connected to one amplifier.
Differential Drive transducers are using a creative reconfiguration of the basic elements of the low-frequency driver. Heat sinks are integrated into the driver’s cast aluminum frame, and the neodymium magnets are placed inside the driver’s dual voice coil assembly, completing the magnetic circuit without the heavy surrounding steel structure of conventional drivers. While dramatically reducing driver weight, all critical performance parameters are greatly enhanced: frequency response, power output and distortion. The resulting sound quality is extraordinarily transparent, even at very high SPL, while system weight and physical footprint can be reduced by as much as half when compared to conventional speaker systems. JBL’s Differential Drive technology is now at the core of all VTX Series loudspeakers from the large format Line Arrays to the VTX F35 and compact stage monitors.
We offer a 2 year warranty on this product from its date of purchase. For more information regarding our support, repair and warranty, please download our Warranty Guide here.
