JBL VTX-B1-GND Universal Ground Stack Accessory Compatible with B15 and B18

Product Code: JBL VTX-B1-GND

Key Features
  • Ground stack accessory for VTX subwoofers
  • Improves stability
  • Attaches directly to the integral rigging
  • Compatible with VTX B15 and VTX B18
Enquire Now
Qty Each (inc GST) Each
Stock on order
  • Features
  • Overview
  • Technical Specs
  • Documents

JBL VTX-B1-GND Universal Ground Stack Accessory, Compatible with B15 and B18

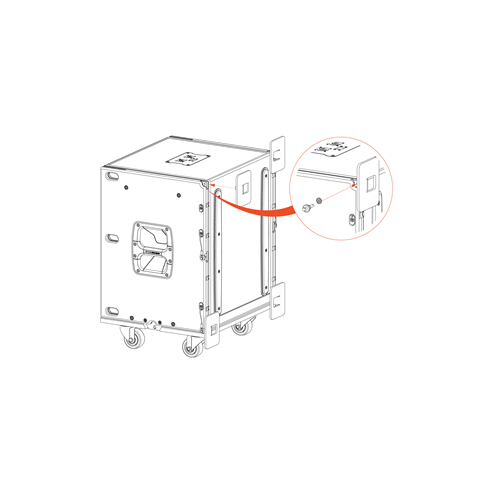

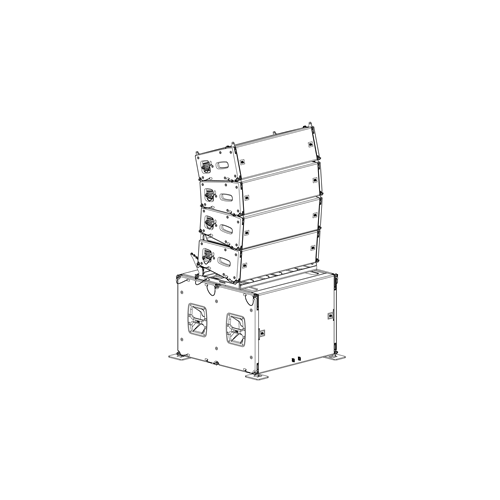

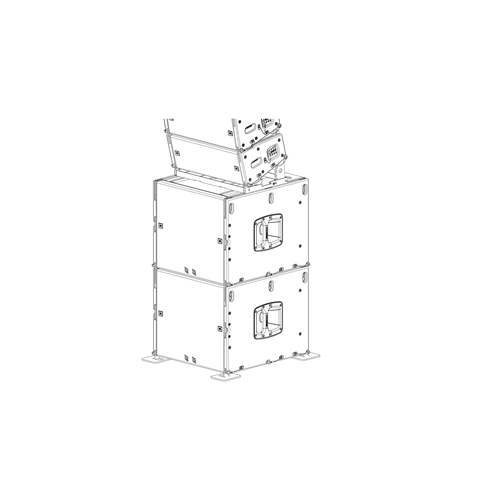

The VTX B1 GND is a universal outrigger accessory used to improve stability in ground stack configurations built on supported VTX subwoofers. The GND connects directly to the subwoofer’s integral rigging hardware and enlarges the base footprint of the stack. The accessory can be used with subwoofer-only ground stacks of more than four enclosures or when full-range VTX speakers are stacked on top using one of the supported base plate accessories. The four-part design is compact, lightweight, and easily fits into standard road cases. Ground stack parameters and mechanical safety of arrays are calculated using JBL’s LAC-3 software.

Warranty

We offer a 2 year warranty on this product from its date of purchase. For more information regarding our support, repair and warranty, please download our Warranty Guide here.

Construction High-grade steel with anti-corrosion coating
Finish (Board) Black powder coat
Dimensions (H x W x D) 38 mm x 102 mm x 127 mm
Net Weight 0.5 kg each, 2.0 kg total

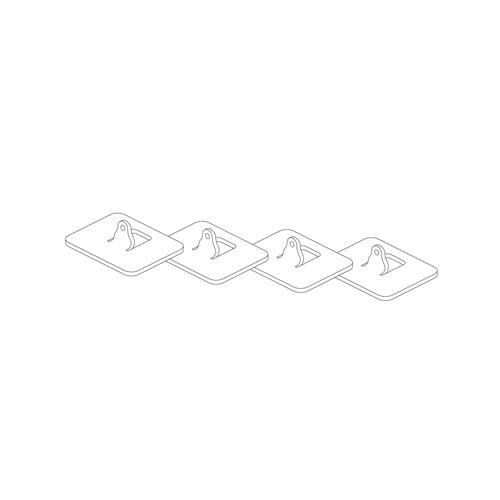

Included (4) Ground stack plates
