JBL VTX-A12-VT-GND Vertical Transporter Ground Stack

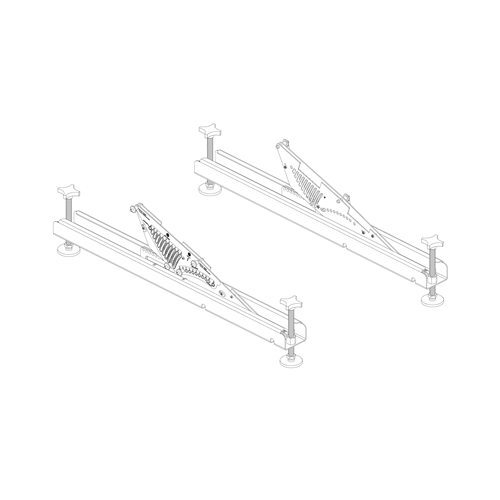

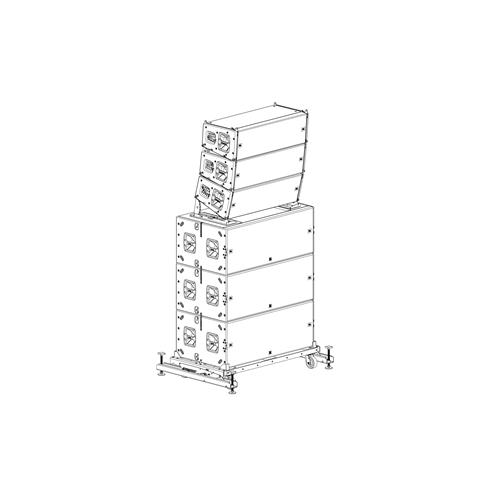

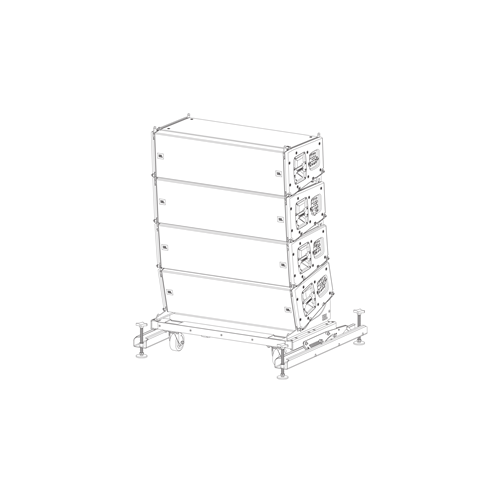

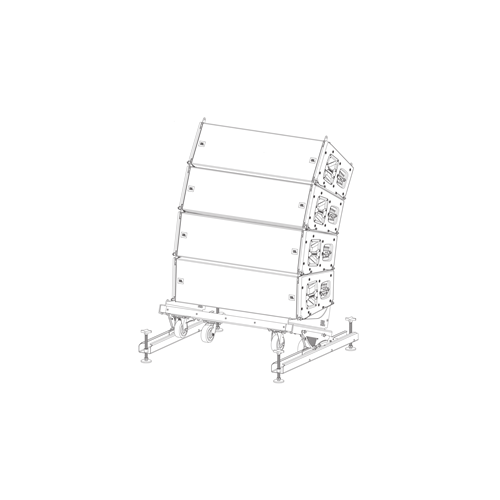

The VTX A12 VT GND outrigger system works in conjunction with compatible Vertical Transporter carts to improve stability in ground stack configurations. The GND can be attached to a VT cart without removing speakers mounted on it. The two outriggers extend in front of and behind the stack and connect to the VT using the included quick-release pins. Screw jacks are used to lift the stack off the ground, while innovative spring-based angle-set hinges adjust overall aiming. The hinge mechanism uses gas springs that enable adjustment of the overall stack angle without manually lifting the speakers or moving heavy parts. Depending on the array geometry, the VTX A12 VT GND can support the weight of up to six A12 cabinets and allows for angles between -15 and +5 degrees. Ground stack parameters and mechanical safety of arrays are calculated using JBL’s LAC-3 software. This accessory is also compatible with the VTX B28 VT.
Included:
