JBL VTX-A12-VT Vertical Transporter

Product Code: JBL VTX-A12-VT

Key Features

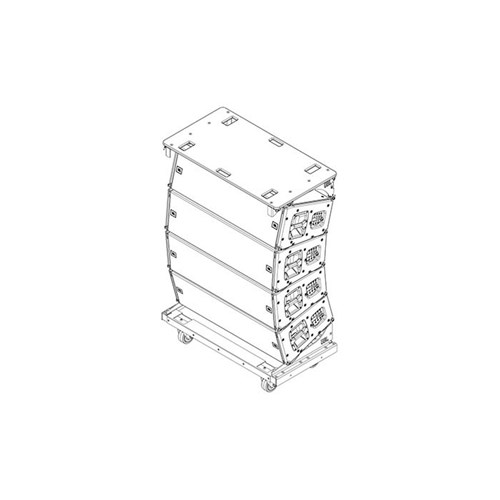

  • Vertical transport cart for (4) VTX A12 enclosures
  • Truck-friendly dimensions
  • Includes a hard top for easy stacking

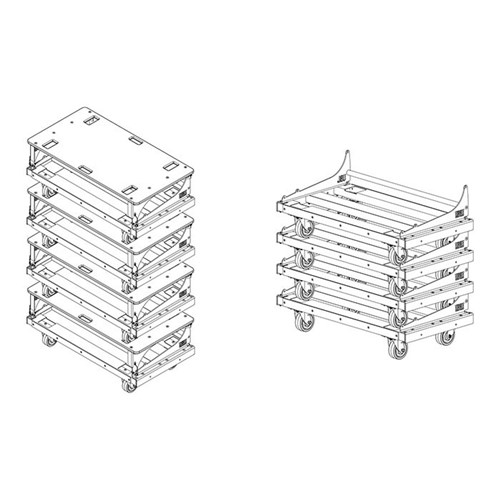

  • Built-in stacking features for easy storage
  • Support for ground stacking
  • Lightweight design
  • Heavy-duty casters
Enquire Now
Qty Each (inc GST) Each
Estimated Lead time Contact Us
  • Features
  • Overview
  • Technical Specs
  • Documents

JBL VTX-A12-VT Vertical Transporter

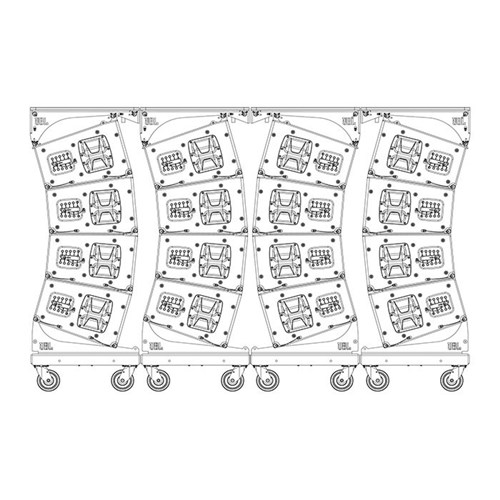

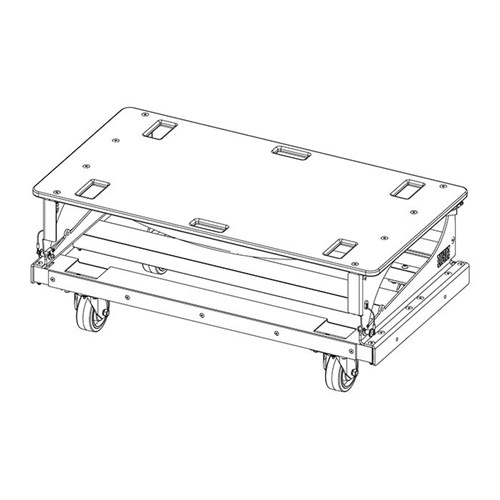

The VTX A12 VT Vertical Transporter is a robust, lightweight cart solution for vertically transporting up to four VTX A12 enclosures. The VTX A12 VT is constructed out of aluminum and steel parts and measures 45-inch (1143 mm) wide and 24-inch (610 mm) deep. Two attachment points are available on each side of the VTX A12 VT for connecting to the optional VTX A12 VT GND Ground Stack outrigger system. When used together, the VTX A12 VT becomes a fast and easy solution for deploying ground-stack arrays without having to remove the cabinets from the cart. The VTX A12 VT comes standard with a hard-top (VT-TOP) attachment that connects to the topmost cabinet of a stack to create a robust and defined footprint that stabilizes the carts during transportation and allows other gear to be placed above for maximum truck-pack efficiency. A reinforced protective cover is available (VTX A12 VT CVR) and supplied separately.

Included:

  • (1) Vertical Transporter
  • (1) VT-TOP
Warranty

We offer a 2 year warranty on this product from its date of purchase. For more information regarding our support, repair and warranty, please download our Warranty Guide here.

Construction High-grade steel with anti-corrosion coating, aluminum, Finnish birch plywood
Finish Black powder coat, black DuraFlexTM
Mechanical Limits Transportation: (4) VTX A12
  Ground Stack: (6) VTX A12
Dimensions (H x W x D) 258 mm x 1054 mm x 492 mm
Net Weight
VTX A12 VT 29.3 kg
VT-TOP 13.2 kg
Complete Cart 285.7 kg
