JBL VTX-A6-SB Suspension Bar for A6 and B15

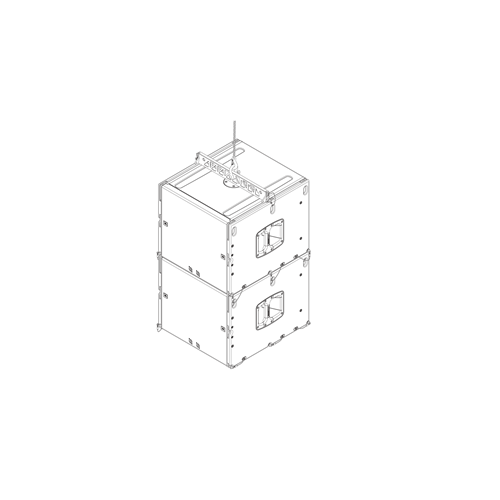

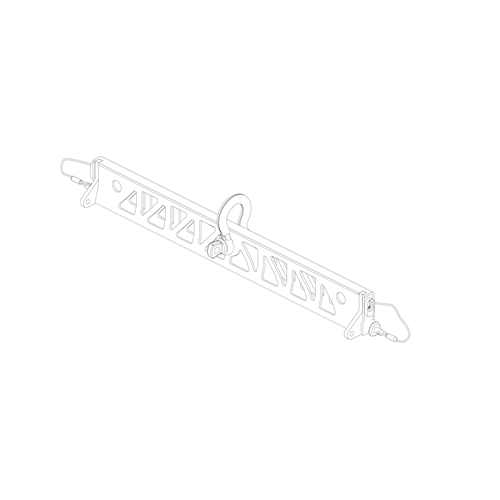

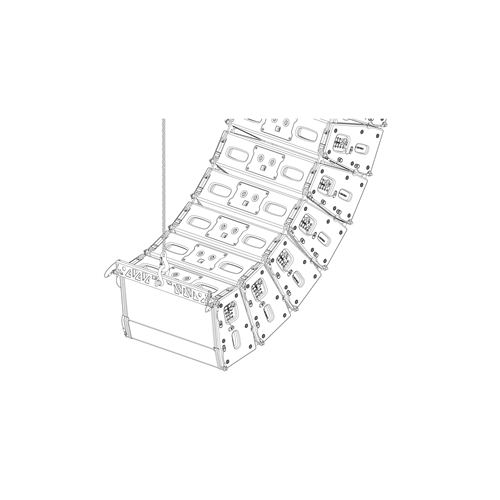

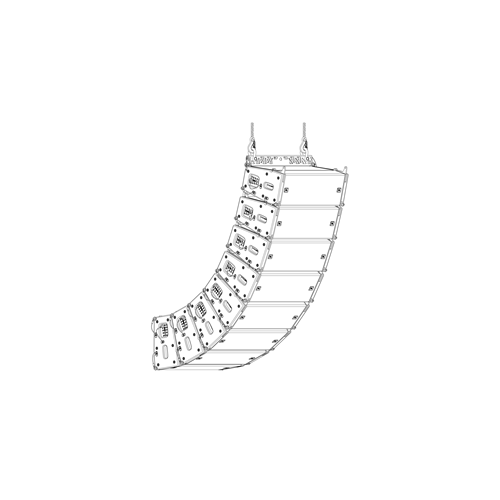

The VTX A6 SB accessory is a lightweight suspension bar that can be used as an array frame or to implement pull-back of VTX A6 or B15 arrays. When used for pull-back, the suspension bar attaches to the bottom of an array and connects to a rear suspension point to allow for extra downtilt, otherwise not possible using the VTX A6 MF alone. The suspension bar can also attach to the top cabinet of an array and be used as an array frame. In this case, the downtilt angle is controlled by the number of cabinets and array geometry. Two suspension bars can be used for dual-point applications and added aiming flexibility: one at the top and one at the bottom of the array. The VTX A6 SB can support the weight of up to (24) VTX A6 or (15) VTX B15 enclosures (depending on array geometry).
