JBL VTX-A6-CM Ceiling Mount accessory for A6 and B15

Product Code: JBL VTX-A6-CM

Key Features
  • Compact array mounting solution
  • Compatible with VTX A6 and VTX B15
  • Low profile
Enquire Now
Qty Each (inc GST) Each
Stock on order
  • Features
  • Overview
  • Technical Specs
  • Documents

JBL VTX-A6-CM Ceiling Mount accessory for A6 and B15

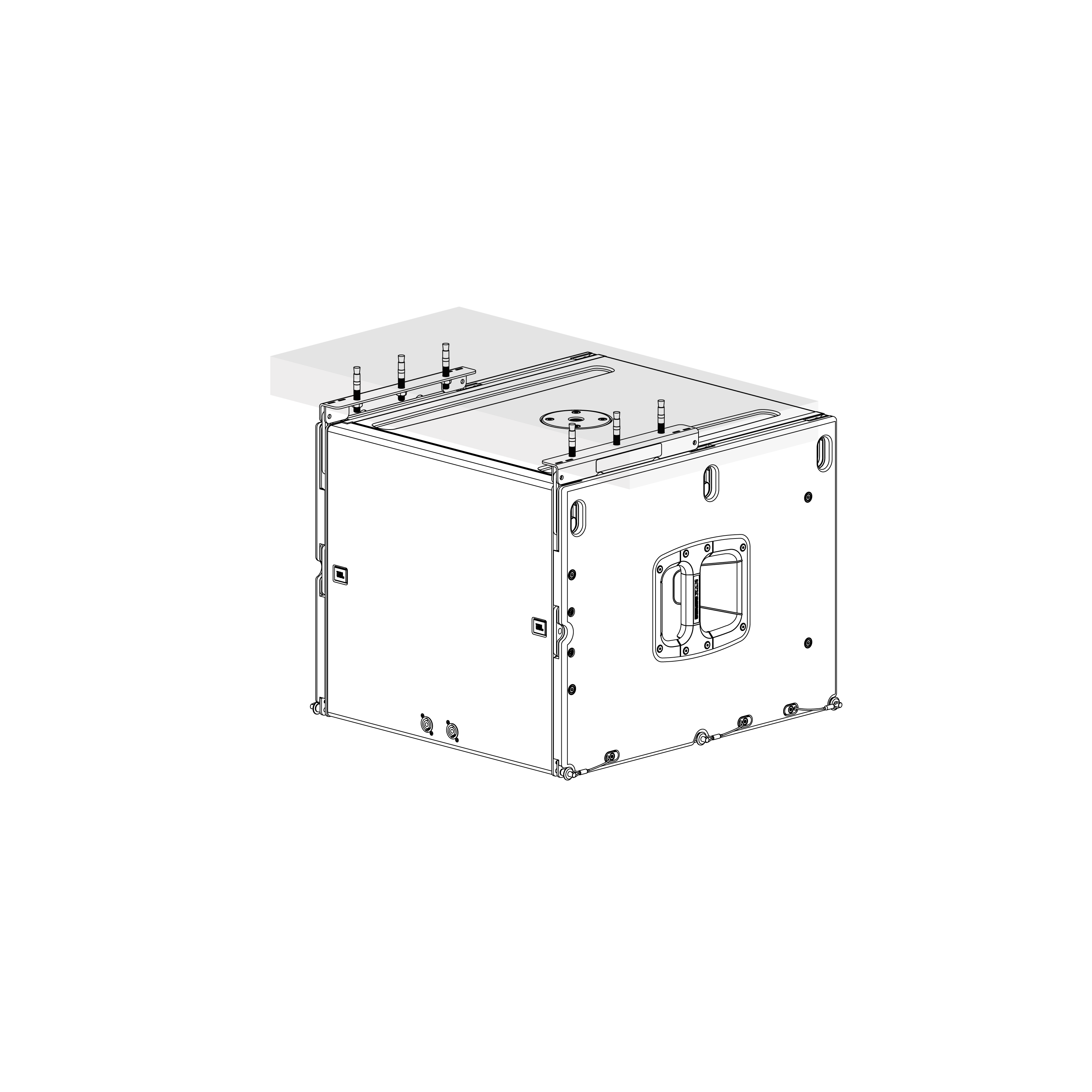

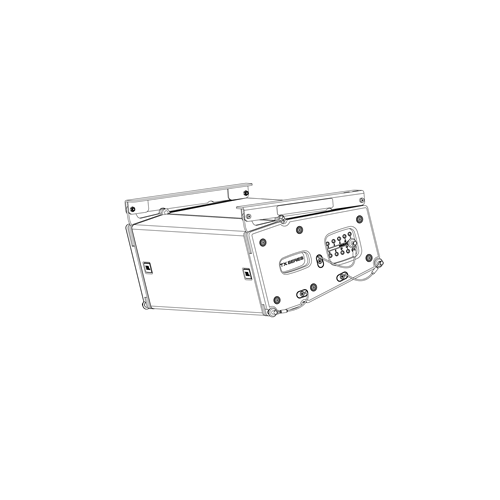

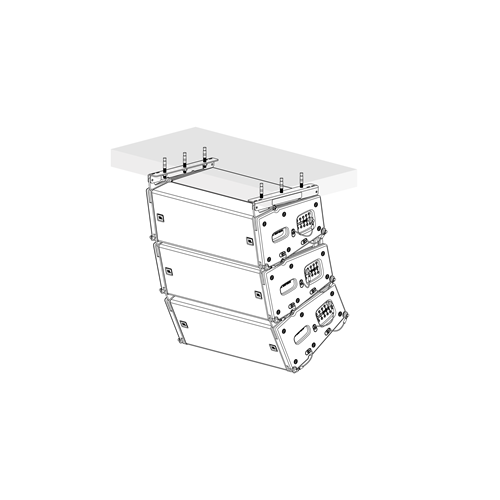

The VTX A6 CM Ceiling Mount accessory allows for a cost-effective way to suspend individual or small A6 arrays from a capable structure in a permanent installation scenario. The ceiling mount creates the lowest profile mounting solution making it a great choice in situations where ceiling height is limited, such as under-balcony fill applications. The arrays are hand stacked from the top down, and down angles are set from the hardware of the first cabinet. The package includes a paper mounting template to quickly locate the mounting holes.

Warranty

We offer a 2 year warranty on this product from its date of purchase. For more information regarding our support, repair and warranty, please download our Warranty Guide here.

Construction High-grade steel with anti-corrosion coating
Finish Black powder coat
Mechanical Limits
Safe Limit (8) VTX A6 , (4) VTX B15
Maximum (8) VTX A6 , (4) VTX B15
Dimensions (H x W x D) 31 mm x 518 mm x 301 mm
Net Weight 1.0 kg

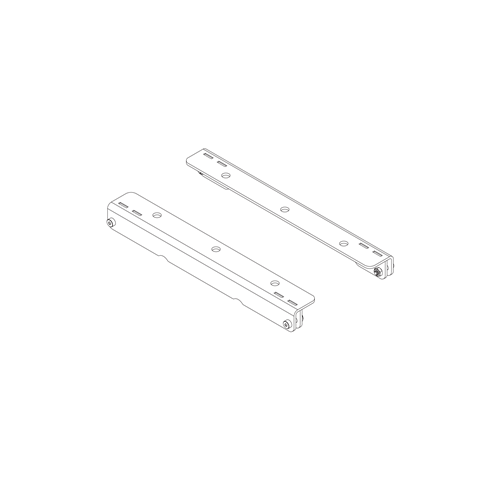

Included (2) Mounting Plates | (1) Drilling Template
