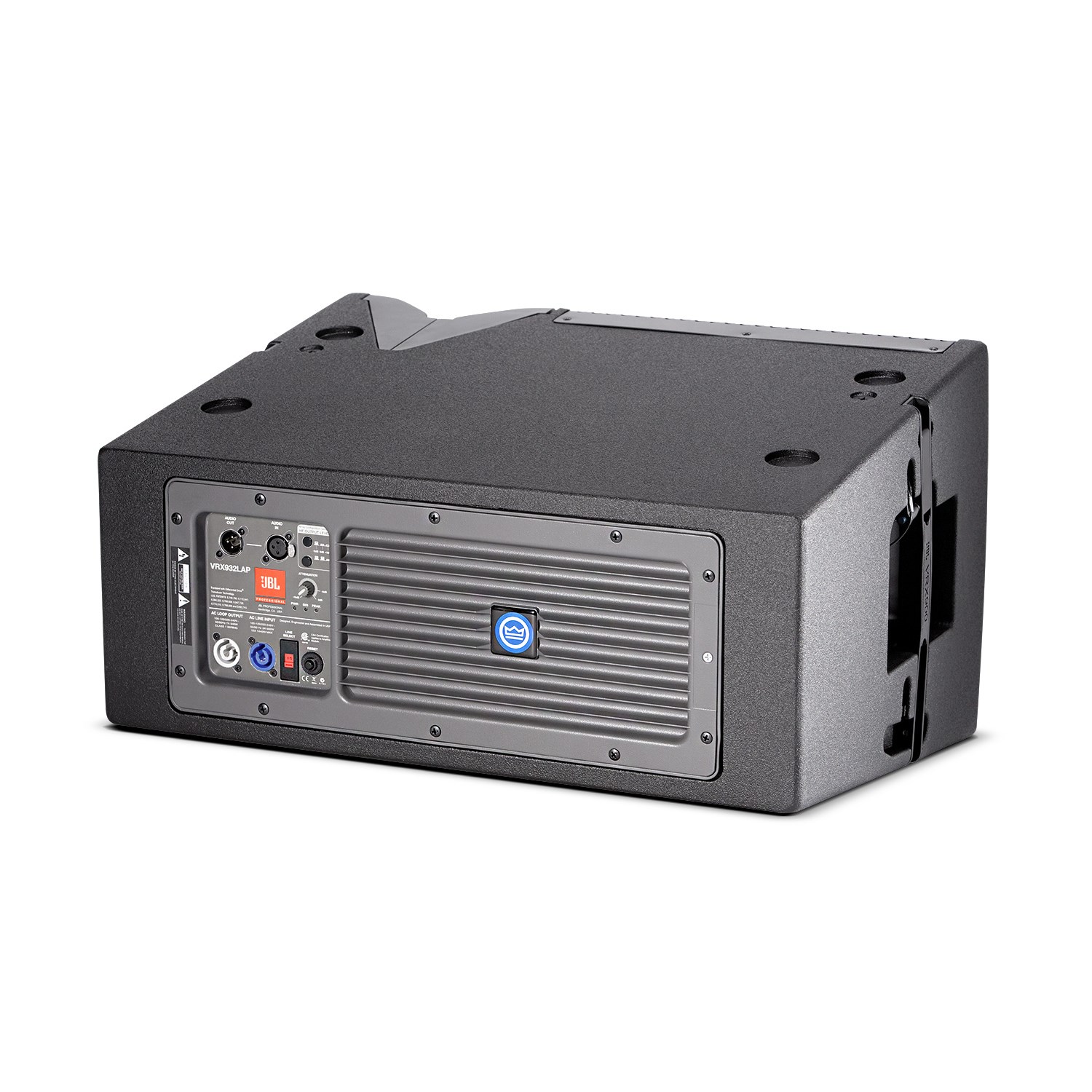

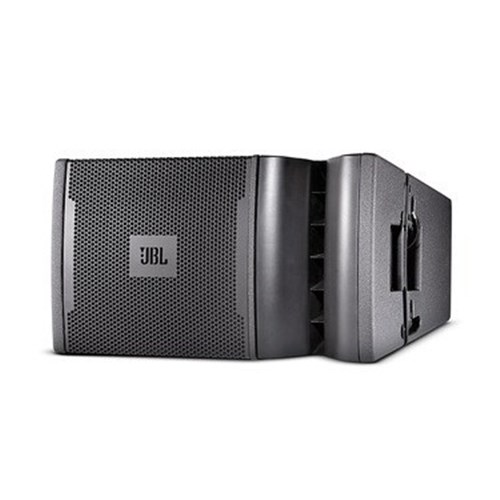

JBL VRX932LAP 12 inch Two-Way Powered Line Array Loudspeaker System

Product Code: JBL VRX932LAP

Key Features

12 inch Two-Way Powered Line Array Loudspeaker System - Black

Enquire Now
Qty Each (inc GST) Each
In Stock
  • Features
  • Overview
  • Technical Specs
  • Documents

JBL VRX932LAP 12" Two-Way Powered Line Array Loudspeaker System

12 in. Two-Way Powered Line Array Loudspeaker System

The VRX932LAP is a powered, lightweight, compact 12" two-way line-array speaker system designed for use in arrays of up to five units. VRX932LAP is the ideal choice when line-array performance is needed but the venue size doesn't call for the very long-throw characteristics of larger line-arrays and a fast and easy setup is vital.

Features

  • Built-in JBL Drivepack® DPC-2 amplifier module designed by Crown provides 1750 Watts of peak Power. DSP based resident input module provides system optimization and EQ functionality.
  • JBL's exclusive neodymium magned Differential Drive® woofer for high-power capacity and light-weight.
  • VRX932LAP features 3 x 2408J Annular Ring Diaphragm HF drivers. The 2408 represents the latest in JBL Professional compression driver design.
  • Constant Curvature waveguide for unprecedented array coherence.
  • Integral rigging hardware for simple connection of enclosures and optional array frame. Dual angle pole socket for aiming flexibility.
  • Array Configuration Selector permits "array shading".
Warranty

We offer a 2 year warranty on this product from its date of purchase. For more information regarding our support, repair and warranty, please download our Warranty Guide here.

Power Rating 1750 Watts Peak875 Watts Continuous
Frequency Range (-10dB) 57 Hz - 20 kHz
Dimensions (H x W x D) 349 mm x 597 mm x 444 mm(13.75 in x 23.5 in x 17.5 in)
Frequency Response 75 Hz - 20 kHz (+/-3db)
Maximum SPL (1m) 136 dB SPL
Coverage Pattern 100 x 15 nominal
DPC-2 Output as (Continuous IED shaped pink noise into rated load impedance) LF: 750 Watts, HF: 125 Watts
DPC-2 Output Section LF: Dual-Bridged Technology™, Class D
Inputs XLR with loop through
LF Driver 1 x JBL 2262FF 305 mm (12 in) neodymium magnet
HF Driver 3 x JBL 2408J, 38 mm (1.5 in)
User Controls Input Attenuator (0-16 dB)
Signal Processings DSP based, resident in Input Module
AC Power Operating Range 90-132 VAC or 216-264 VAC, 50/60 Hz
AC Input Connector Neutrik PowerCon (NAC 3MPA)
AC Loop Through Connector Neutrik PowerCon (NAC 3MPB)
AC Current Requirements 6A per system at 120V, 3A per system at 240V
Enclosure 25/15 mm, 11-ply birch plywood
Suspension / Mounting Optional VRX-AF line array frame kit, 10mm forged eyebolts or internal dual angle 36mm pole mount cup for pole or tripod mounting
Finish Black DuraFlex™ finish
Grille Powder coated, black, 16-gauge perforated steel with with acoustically transparent foam
Net Weight (each) 24 kg (52 lb)
Optional Accessories VRX-AF: Suspension array frame
Outputs 1 x XLR
System Type Constant Curvature 12" Two-Way Powered Line Array System
Nominal Impedance NA - amplification is integrated
