Name: JBL VRX928LA 8 inch Two-Way Line Array Loudspeaker System
Price: 3913.76 AUD

Qty	Each (inc GST)	Each

JBL VRX928LA 8" Two-Way Line Array Loudspeaker System

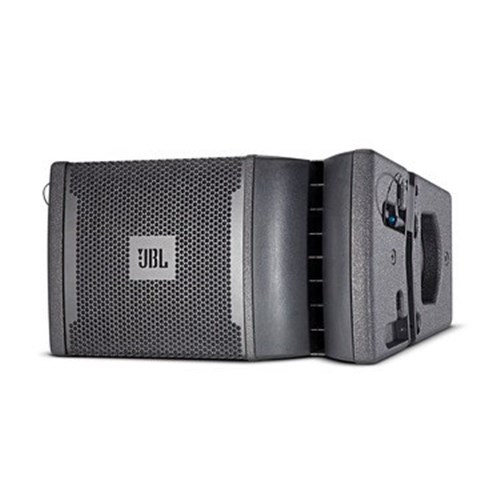

The VRX928LA is a lightweight (28 lb / 13 kg) compact 8" two-way linearray speaker system designed for use in arrays of up to six units.

Constant Curvature Array - The waveguide mounts two compression drivers on a continuous arc enabling them to work together acoustically as if they were a single driver.
Amplitude Shading- Convenient series of switches on each enclosures that controls the output of each high frequency section in the array.
Suspension and Rigging.
Dual Angle Pole Socket - JBL's dual angle pole sockets allow great flexibility in aiming the enclosure
(not on - WH version)
Differential Drive® Woofer.

Power Rating	400 W / 800 W / 1600W
Frequency Range (-10dB)	70 Hz - 20 kHz
Dimensions (H x W x D)	230mm x 420mm x 270mm (9.0in x 16.5in x 10.5in)
Coverage Pattern	100 x 15 nominal
Frequency Response (±3 dB)	85 Hz - 19 Hz
Crossover Modes	Bi-amp / passive,
Crossover Frequency	2.0 kHz
Net Weight (each)	12.7 kg (28 lb)
Inputs	Neutrik® Speakon NL-4 (x2)
Outputs	1 x XLR
Enclosure	Duraflex coated plywood
System Type	Constant Curvature 8" Two-Way Line Array System
Maximum SPL (1m)	122 dB SPL peak (passive mode) LF: 122 dB (bi-amp mode) HF: 128 dB (bi-amp mode)
Nominal Impedance	Passive = 8 ohm Bi-amp LF = 8 ohm Bi-amp HF = 16 ohm
LF Driver	1 x 200 mm (8 in) Differential Drive® woofer
HF Driver	2 x 25 mm (1.0 in) neodymium compression driver
Suspension / Mounting	Dual 36 mm pole socket included. Suspension requires optional VRX-SMAF line array frame kit or M10 eyebolts.

JBL VRX928LA 8 inch Two-Way Line Array Loudspeaker System
