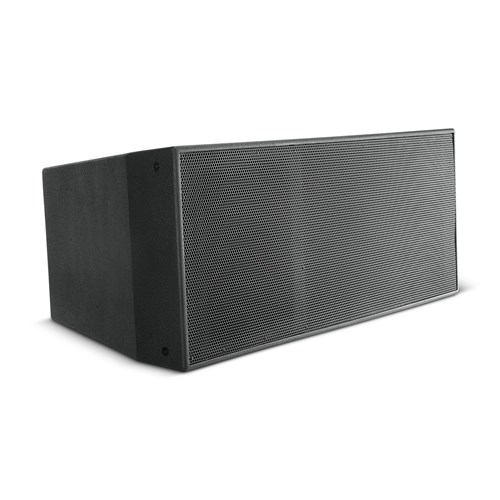

JBL VLA901i-WRC - Three-Way Full Range Loudspeaker with 2 x 15 Inch LF 90 degree Horizontal Dispersion With Weather Protection Treatment

Product Code: JBL VLA901-WRC

Key Features

High Output Three-Way Full-Range Horn-Loaded Line Array Loudspeaker System. 90° Horizontal Horn Coverage Pattern. 2x15 LF, 2x8 MF, 3x1.5 Exit HF. With Weather Protection Treatment. Refer to WEATHER RESISTANT Configurations for AE, PD & VLA Series document for details regarding WRC/WRX models. Standard color is GRAY. Custom product manufactured to order.

Enquire Now
Qty Each (inc GST) Each
Estimated Lead time Contact Us
  • Features
  • Overview
  • Technical Specs
  • Documents

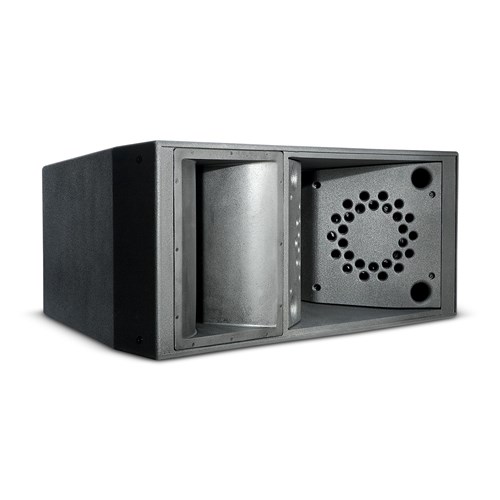

JBL VLA901i-WRC - Three-Way Full Range Loudspeaker with 2 x 15" LF, 90° Horizontal Dispersion (With Weather Protection Treatment)

Variable Line Array Series (VLA Series) is a revolutionary product providing high-impact sound reinforcement at throw distances beyond the reach of traditional loudspeaker designs.

Features:

  • Line array module optimized for permanent install applications.
  • Standard version featuring 3 HF drivers, 2 MF drivers & 2 LF drivers.
  • Advanced technology component transducers for low weight and high output.
  • Comprehensive rigging points for creating a line array configuration.
  • Exterior: 0.060” (1.5mm) thick DuraFlex™ coating. Interior: Wood sealer. WRC weather resistance is intended for outdoor placement where the loudspeaker will be sheltered from direct exposure to the elements. For more information, refer to the attached Weather Resistant Configurations Guide.
Warranty

We offer a 2 year warranty on this product from its date of purchase. For more information regarding our support, repair and warranty, please download our Warranty Guide here.

Trade Terms
This item is a firm order product, meaning it cannot be cancelled or returned once the purchase order is processed, except in cases of defect. Please verify that part numbers and descriptions are accurate before placing your order. For any confirmation or additional information, please contact AV Sales at 1800 00 77 80.
Frequency Range (-10dB) 41 - 20kHz
Frequency Response (-6 dB) 45 - 19.5kHz
Frequency Response (-3 dB) 50 - 19.2kHz
Horizontal Coverage 90° nominal (400 Hz – 16 kHz)
Vertical Coverage Varies with array size and configuration.
System Power Ratings (AES) LF: 1000W Continuous (IEC /100 hour) MF: 400W Continuous (IEC /100 hour)HF: 160W Continuous (IEC /100 hour)
Maximum SPL (1m) 146dB (Preset: Flat)
LF Driver 2 x JBL 2265H, 15in diameter, dual 3in diameter voice coil, Neodymium Differential Drive
Nominal Impedance 4 ohms
Sensitivity (2.83V @ 1m) LF: 99dB/96dB
MF: 106dB/103dB
HF: 106db/109dB
Mid-Frequency Driver 2 x JBL 2169H, 8in diameter, dual 3in diameter voice coil, Neodymium Differential Drive
High-Frequency Driver 3 x JBL 2432H, 1.5in exit compression driver, 3in diameter voice coil, Neodymium Magnet
Enclosure 18mm and 16mm, Exterior grade Baltic birch plywood, DuraFlexTM finish or optional Fiberglass
Suspension Attachments 16 points (4 each top bottom & rear, 2 each side), M10 threaded hardware (eyebolts NOT included).
Finish Black DuraFlexTM (STD), Gray DuraFlexTM (WRC), Gray Fiberglass (WRX), optional colors; Stainless Steel Hardware (WRC/WRX)
Optional Weather Resistant Versions WRC for outdoor placement where the loudspeaker will be sheltered from direct exposure to the elements. WRX for direct exposure or extreme environments, such as tropical or beach, or in areas with salt air, extreme high humidity or rapid changes in temperatures. See WRC/WRX configuration sheet for details.
Grille Powder coated 14 gauge perforated steel, zinc-phosphate dipped, acoustically transparent foam backing (grill cloth backing on white units) (16 gauge stainless steel on WR versions)
Input Connectors Barrier Strip for #6 spade lug, including gland nut and cover plate
Environmental Mil-Std 810; IPx3 per IEC529. For higher environmental ratings, use WRC or WRX.
Dimensions (H x W x D) 528.3mm x 1346.2mm x 635.0mm (20.8in x 53.0in x 25.0in)
Net Weight 91.2kg (201.0lbs)
