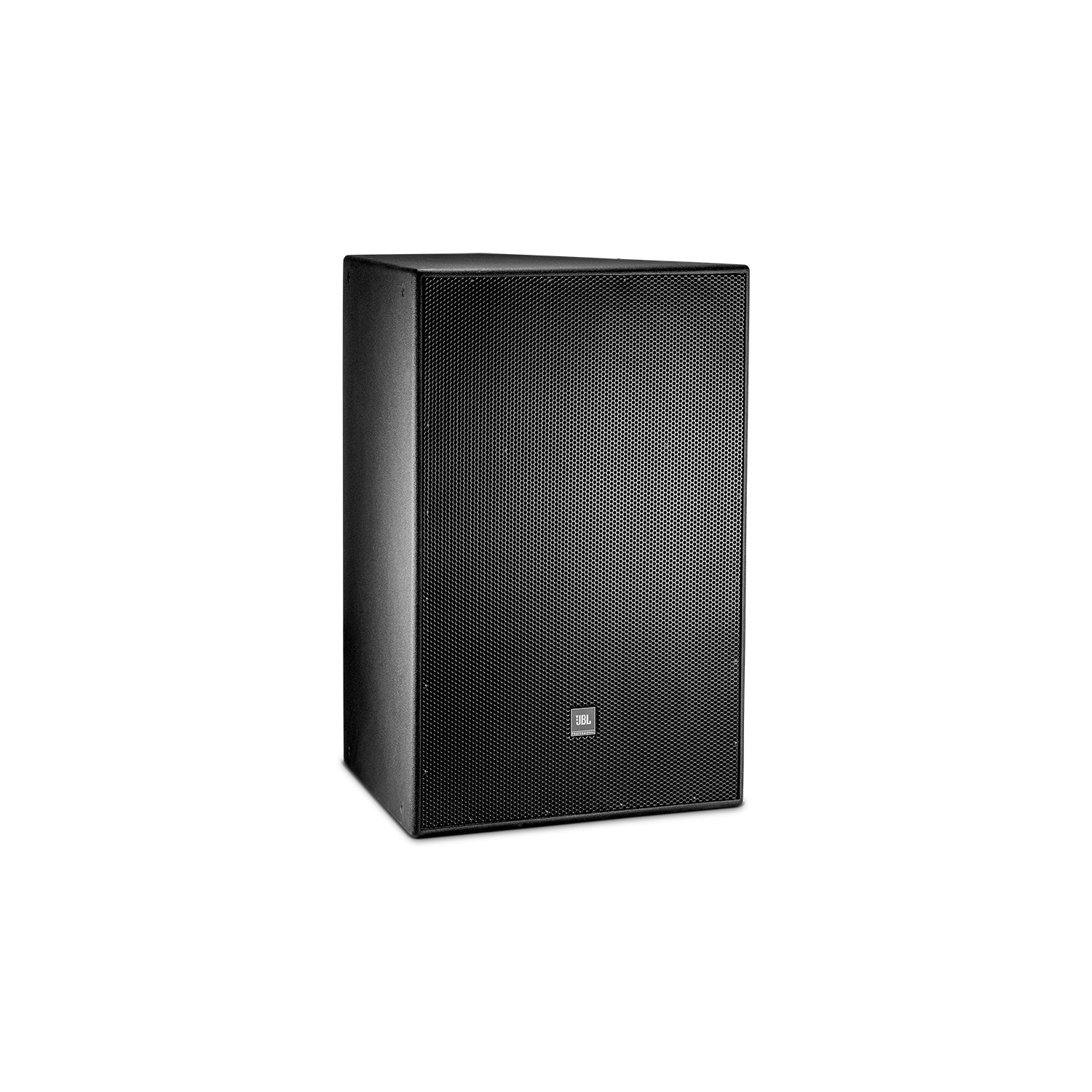

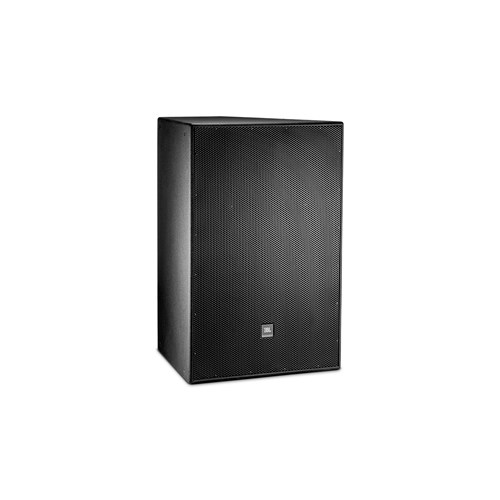

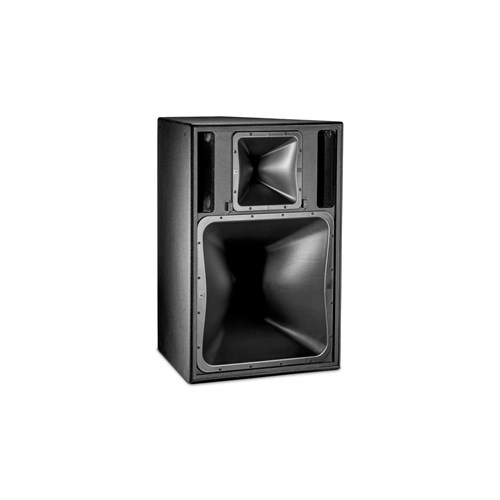

JBL PD6322/43-WRC - Precision Directivity Full Range Three-Way Loudspeakers with Weather Protection Treatment

Product Code: JBL PD6322-43-WRC

Key Features
High Output Three-Way FULL-RANGE Loudspeaker with 12" LF, 8" MF and 40º x 30º Coverage Pattern. Two 300 mm Loaded LF Configuration, 200 mm (8 in) CMCD Cone MidRange Compression Driver and Large Format 2431H Neodymium HF Driver. 40 Hz to 17 kHz Frequency Range. 991 x 673 x 897 mm. (39 x 26.5 x 35.3 in), 87.3 kg (192 lbs). With Weather Protection Treatment. Refer to WEATHER RESISTANT Configurations for AE, PD & VLA Series document for details regarding WRC/WRX models. Standard color is GRAY. Available in Black (-BK) & White (-WH).
Enquire Now
Qty Each (inc GST) Each
Estimated Lead time Contact Us
  • Features
  • Overview
  • Technical Specs
  • Documents

Precision Directivity Full Range Three-Way Loudspeakers

The PD6322 Precision Directivity full range, three-way loudspeakers are designed for applications requiring high output sensitivity with excellent pattern control. They can be utilized standalone in demanding music or speech systems where low frequency extension to 40 Hz is required.

Features

  • Two high power 300 mm (12 in) transducers in a compact slot-loaded configuration for low frequency extension to 40 Hz.
  • High power CMCD Cone Midrange Compression Driver provides high sensitivity and high continuous SPL capability along with low distortion, extended bandwidth and improved phase coherence.
  • Large format neodymium HF driver provides clear, intelligible high frequency projection.
  • Large PT Progressive Transition waveguides provide consistent pattern control, low distortion at high SPL levels and smooth frequency response.
  • Rotatable mid and high frequency waveguides allow either horizontal or vertical cabinet orientation.
  • Sophisticated, steep-slope passive mid high crossover network with switchable tri-amp/bi-amp crossover modes.
    • Warranty

    We offer a 2 year warranty on this product from its date of purchase. For more information regarding our support, repair and warranty, please download our Warranty Guide here.

    Trade Terms
    This item is a firm order product, meaning it cannot be cancelled or returned once the purchase order is processed, except in cases of defect. Please verify that part numbers and descriptions are accurate before placing your order. For any confirmation or additional information, please contact AV Sales at 1800 00 77 80.
    Frequency Range 41 Hz to 17 kHz (-10 dB)
    Frequency Response 49 Hz to 15 kHz ( 3 dB)
    Coverage Pattern /43: 40 x 30 /64: 60 x 40 /66: 60 x 60 /95: 90 x 50
    Crossover Modes Tri-amp / Bi-amp (passive mid-high) switchable
    Passive Crossover 6th order (36 dB/oct) Linkwitz-Riley HP & LP, 1.5 kHz
    Transducer Power Rating (AES) LF: 1600 W (6400 W peak), 2 hrs. 1200 W (4800 W peak), 100 hrs MF: 350 W (1400 W peak), 100 hrs HF: 75 W (300 W peak), 2 hrs
    Long-Term System Power Rating (IEC) LF: 1200 W (4800 W peak) MF/HF: 300 W (1200 W peak), 100 hrs
    Maximum SPL LF: 128 dB SPL (134 dB peak)MF: 137 dB SPL (143 dB peak)HF: 135 dB SPL (141 dB peak) Passive Mode: 136 dB SPL (142 dB peak)
    System Sensitivity (1w @ 1m) Passive Mode: 111 dB-SPL (mid/high section only)
    Low Frequency Driver 2 x 2206H 300 mm (12 in) driver with 100 mm (4 in) voice coil
    Mid Frequency Driver CMCD-82H cone midrange compression driver with integral 200 mm (8 in) diameter Differential Drive dual 75 mm (3 in) voice coil driver
    High Frequency Driver 2432H, 38 mm (1.5 in) exit compression driver with 75 mm (3 in) voice coil
    Enclosure Trapezoidal with 12.5 degree side angles, 16 mm (.625 in) exterior grade 11-ply Finnish birch plywood.
    Suspension Attachment 20 points (5 top, 5 bottom, 4 each side, 2 rear), M10 threaded hardware (eyebolts NOT included, see optional accessories).
    Finish Black DuraFlex finish. White (-WH) available upon request.
    Optional Weather Resistant Versions WRC for outdoor placement where the loudspeaker will be sheltered from direct exposure to the elements. WRX for direct exposure or extreme environments, such as tropical or beach, or in areas with salt air, extreme high humidity or rapid changes in temperature.
    Grille Powder coated 14 gauge perforated steel, zinc-phosphate dipped, foam backing (grille cloth backing on white units)
    Input Connectors Neutrik Speakon NL8, plus CE-compliant covered barrier strip terminals. Barrier terminals accept up to 5.2 sq mm (10 AWG) wire or max width 9 mm (.375 in) spade lugs. Speakon in parallel with barrier strip for loop through.
    Environmental Specifications Mil-Std 810; IP-x3 per IEC529
    Dimensions (H x W x Din vertical orientation) 991 x 673 x 897 mm (39.0 x 26.5 x 35.3 in)
    Net Weight 87.3 kg (192 lb)
    Optional Accessories 229-00009-01 kit of three M10 x 35 mm forged shoulder steel eyebolts
