JBL VLA-C125S-GR - Dual 15 Inch Subwoofer with Differential Drive Grey

Product Code: JBL VLA-C125S-GR

Key Features
  • Dual 15" Subwoofer with Differential Drive, Grey
  • Compact line array module optimized for permanent install applications
  • Advanced technology component transducers for low weight and high output
  • Outdoor IP55 rated enclosure for protection from dust and water
  • Comprehensive rigging points for creating a line array configuration
  • Fiberglass box construction and weatherized components
  • Dual 15” transducers
$14,517.20 inc GST
(EA)
Increase value Decrease value
Qty Each (inc GST) Each
Estimated Lead time Contact Us
  • Features
  • Overview
  • Technical Specs
  • Documents

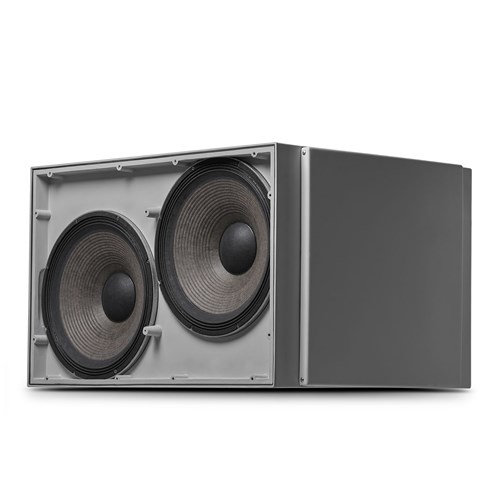

The VLA-C125S uses JBL proven technology components, featuring dual 15” Differential Drive® transducers.

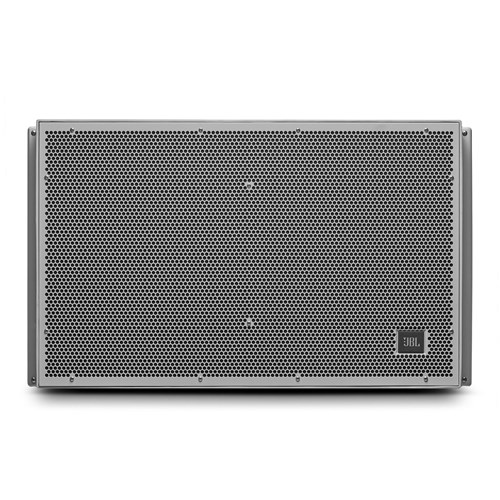

Enclosures feature multi-layer reinforced fiberglass and steel end-panels. Grilles are zinc plated, powder coated 14-gauge perforated steel with an acoustically transparent black grill cloth backing, a hydrophobic mesh underlayer, and a waterproof rail system.

The rigging system is inherent to the design of the system. Inter-box angles are selected when the array is assembled. Other accessories include a rigging frame, pull-back bar, and a cardioid kit.

Warranty

We offer a 2 year warranty on this product from its date of purchase. For more information regarding our support, repair and warranty, please download our Warranty Guide here.

Trade Terms
This item is a firm order product, meaning it cannot be cancelled or returned once the purchase order is processed, except in cases of defect. Please verify that part numbers and descriptions are accurate before placing your order. For any confirmation or additional information, please contact AV Sales at 1800 00 77 80.
Frequency Response (-10dB) 52 Hz – 210 Hz
Frequency Response (±3 dB) 62 Hz – 123 kHz
System Power Rating 1600 W Continuous Pink Noise (6400 W peak), 2 hrs800 W Continuous Pink Noise (3200W peak), 100 hrs
Maximum Input Voltage 80 V Rms (2 hrs), 160 V peak
Maximum SPL (1m) 127 dB Cont. Ave (2 hrs), 133 dB Peak
Sensitivity 98 dB (52 Hz – 210 Hz, 2.83V)
Impedance 4Ω, 3.0Ω min @ 195 Hz
Amplifiers Crown DCi Family with DSP on-board
Recommended Crown DCi 2 | 2400N Crown DCi 4 | 2400N
LF Driver 2 x 2275H, 304 mm (15 in) diameter , each with two 76 mm (3 in) diameter voice coils, Neodymium Differential Drive®, Direct Cooled™
Enclosure Material Fiberglass shell, gelcoat finish, with 18 mm Birch plywood internal bracing.
Grille Powder coated 14 gauge hex-perforated steel with zinc under-coating, backed with acoustically transparent cloth and hydrophobic screen.
Inter-Enclosure Angles VLA-C125S to VLA-C125S: 0° using VLA-C125S Bracket Plate (included with VLA-C125S)VLA-C265 below VLA-C125S Subwoofer (VLA-C265 cannot be connected above C125S): 0°, 5° using VLA-C125S Bracket Plate (included with VLA-C125S)VLA-C2100 below VLA-C125S Subwoofer (VLA-C2100 cannot be connected above C125S): 0°, 7.5° using VLA-C125S Bracket Plate (included with VLA-C125S)
Environmental IP-55 rating per IEC529 (dust protected and protected against jets of water).
Terminals CE-compliant covered barrier strip terminals. Barrier terminals accept up to 5.2 sq mm (10 AWG) wire or max width 9mm (0.375 in) spade lugs. Touch-proof covers. Full set of terminals on back panel, plus optional-use inter-cabinet connection terminals located on top and bottom panels of cabinet.
Colors Grey
Dimensions (H x W x D) 508 x 848 x 634 mm (20.0 x 33.4 x 24.9 in)
Net Weight (each) 56.7 kg (125 lbs)
Shipping Weight (ea) 62.6 kg (138 lbs)
Included Accessories 2 x VLA-C125S Bracket Plates 8 pcs. M10 x 35 mm stainless steel bolts (1.5mm pitch, 6 mm hex-drive) for attaching Bracket Plates 2 pcs. Plastic Trim Cover Panels for Bracket Plates, each attaches via 4 pcs (8 total) 3-32 x ½” trusshead, phillips-drive, stainless steel bolts.
