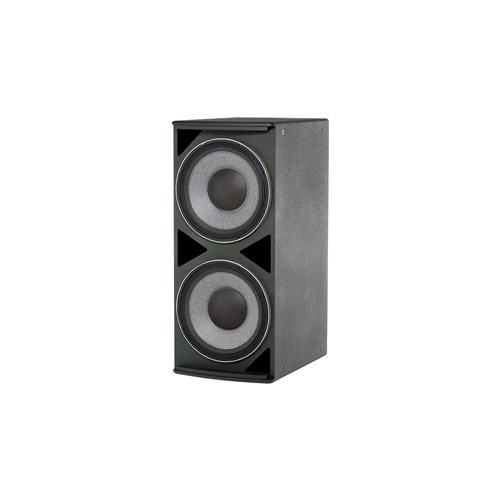

JBL ASB6125 - High Power Dual 15 Inch Subwoofer Black

Product Code: JBL ASB6125-BK

Key Features
Dual 15 High-Power Subwoofer System. 2 x 2265H-1 Differential Drive® woofer, 3 dual voice coil dual gap, neodymium magnet. Multiply hardwood enclosure with DuraFlex finish and 14-gauge steel grille. Sixteen M10 suspension points. Available in Black and White. Priced as each.
$8,840.34 inc GST
(EA)
Increase value Decrease value
Qty Each (inc GST) Each
Estimated Lead time 8-12 weeks
  • Features
  • Overview
  • Technical Specs
  • Documents

High Power Dual 15" Subwoofer

The ASB6125 is a high power, lightweight front-loaded vented subwoofer enclosure housing two JBL 2265H-1 Differential Drive® dual voice coil dual gap 15" woofers. These woofers feature neodymium magnets and ultra robust cones for extra long life.

Features

  • 2 x 2265H-1 15" Differential Drive® dual voice coil dual gap, neodymium magnet transducers
  • 1600 watts continuous pink noise, 6400 watts peak power handling capacity
  • Parallel/Discrete switchable input mode
  • Large vent area for high output with low distortion
  • For ground-stacked or suspended applications in stand-alone arrays or in combination with other
    AE Series products
    • Warranty

    We offer a 2 year warranty on this product from its date of purchase. For more information regarding our support, repair and warranty, please download our Warranty Guide here.

    Trade Terms
    This item is a firm order product, meaning it cannot be cancelled or returned once the purchase order is processed, except in cases of defect. Please verify that part numbers and descriptions are accurate before placing your order. For any confirmation or additional information, please contact AV Sales at 1800 00 77 80.
    Frequency Range (-10 dB) 32 Hz - 1 kHz
    Frequency Response ( 3 dB) 38 Hz - 1 kHz
    Transducer Power Rating 1600 W (6400 W peak), 2 hrs
    Input Modes Drivers Parallel / Drivers Discrete
    Long-Term System Power Rating 1350 W (5400 W peak), 100 hrs.
    Maximum SPL (1m) 35 Hz - 400 Hz: 132 dB-SPL cont avg (138 dB peak)
    System Sensitivity 35 Hz - 400 Hz: 100 dB-SPL, 1W (2.0V) @ 1m
    Nominal Impedance 4 ohms in parallel-drive mode2 x 8 ohms in discrete-drive mode
    Low Frequency Driver 2 x 2265H-1, 380 mm (15 in) dia., 75 mm (3 in) Dual Coil Dual Gap neodymium Differential Drive drivers
    Enclosure Rectangular cabinet, 16 mm (5/8 in) exterior grade 11-ply birch plywood
    Suspension Attachment 16 points (4 top, 4 bottom, 4 each side), M10 threaded hardware
    Finish Black DuraFlex finish.White available upon request.
    Grille Powder coated 14 gauge perforated steel, with acoustically transparent black foam backing.
    Input Connector NL4 Neutrik Speakon and CE-compliant covered barrier strip terminals. Barrier terminals accept up to 5.2 sq mm (10 AWG) wire or max width 9 mm (.375 in) spade lugs. Speakon in parallel with barrier strip for loop-through.
    Environmental Specifications Mil-Std 810; IP-x3 per IEC529.
    Dimensions (H x W x D invertical cabinet orientation) 965 x 419 x 597 mm(38.0 x 16.5 x 23.5 in)
    Net Weight 36.7 kg (81.0 lb)
    Optional Accessories M10 x 35 mm forged shoulder eyebolts with washers
