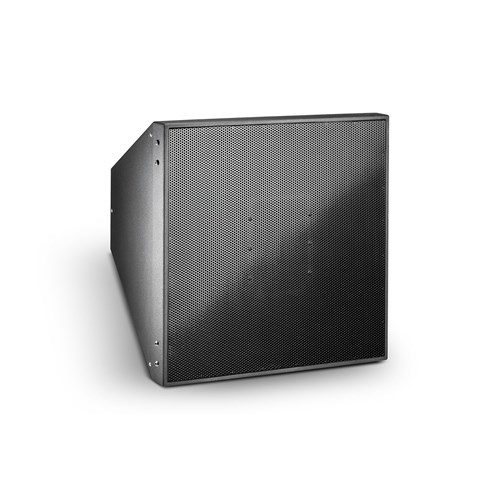

JBL PD743I-WRX Very High Output Mid-High Loudspeaker System

Product Code: JBL PD743I-WRX

Key Features
JBL PD743I-WRX High Output Mid-High Spk (Wrx Treatment)- Precision Directivity Mid/High Frequency Coaxial With 40 X 30 Dispersion. Dual Large Format 2430H Hf Drivers With Ifs Interference Free Summation, Dual 2250J Very High Output 8" Mf Drivers, Well Controlled Dispersion To Below 400 Hz, Ten M10 Integrated Suspension Points. 150 Hz To 16 Khz Frequency Range. 700 W Mf, 150 W Hf Continuous Power Capability. Max Spl Capability Of 139 Db Continuous, 145 Peak. Compact 991 H X 991 W X 1146 D Mm (39 X 39 X 45.1 In), 111.4 Kg (245 Lb). With Weather Protection Treatment. Refer To Weather Resistant Configurations For Ae, Pd & Vla Series Document For Details Regarding Wrc/Wrx Models. Standard Color Is Gray. Available In Black (-Bk) & White (-Wh). Custom Product Manufactured To Order, Lead Times Confirmed At Time Of Order.
Enquire Now
Qty Each (inc GST) Each
Estimated Lead time Contact Us
  • Features
  • Overview
  • Technical Specs
  • Documents

Very High Output Mid-High Loudspeaker System

The PD743i Precision Directivity™ loudspeaker provides high-impact sound reinforcement at throw distances that are beyond the reach of traditional single-driver designs. A single module produces greater than 104 dB SPL (continuous) at distances of 50 m (165 ft). The PD764i-215 may be used in clusters with other PD family modules or singly as part of a distributed system.

Features

  • 40° by 30° Coverage Pattern–symmetrical frontal dimensions allow horizontal or vertical orientation within an array.
  • IFS™ Interference Free Summation dual HF driver module eliminates destructive interference and increases output by 6 dB.
  • Dual 2432H compression drivers with 3” diaphragms
  • Dual CMCD-82H 8” horn loaded cone mid-range drivers provide 6 dB greater output than traditional designs.
  • Pattern control maintained to below 400 Hz.

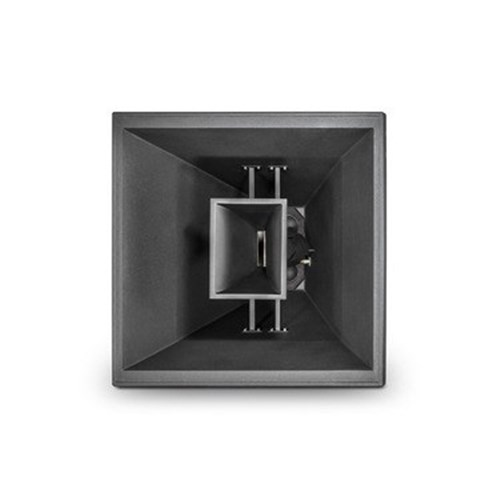

  • Co-axial mid/high-frequency module layout improves mid frequency arrayability and minimizes size.
  • Integrated rigging system simplifies array design and construction.
Warranty

We offer a 2 year warranty on this product from its date of purchase. For more information regarding our support, repair and warranty, please download our Warranty Guide here.

Trade Terms
This item is a firm order product, meaning it cannot be cancelled or returned once the purchase order is processed, except in cases of defect. Please verify that part numbers and descriptions are accurate before placing your order. For any confirmation or additional information, please contact AV Sales at 1800 00 77 80.
Frequency Range (-10dB) 200 Hz to 19.5 kHz
Frequency Response (±3 dB) 230 Hz - 18.5 kHz
Coverage Pattern 40° x 30°
Directivity Index (DI) 16 dB
System Sensitivity (1w @ 1m) Passive Mid-High: 110 dB SPL
Maximum Peak SPL MHF - 142 dB Peak Passive Mode
Transducer Power Rating (AES) MHF - 400 W (1600 W Peak)
Crossover Frequencies 1.2 kHz
DSP Custom DSP for Crown ITHD and IT4x3500HD amplifiers
MF Driver 2 x JBL CMCD-82H midrange driver with 200 mm (8 in) diameterDifferential Drive® dual 75 mm (3 in) voice coil
HF Driver 2 x JBL 2432H, 38 mm (1.5 in) exit compression driver, 75 mm (3 in) voice coil
Nominal Impedance MF: 4 ohms
HF: 16 ohms
Enclosure Trapezoidal with Rectangular sides, combination of 18 mm and 16 mm (5/8 in) exterior grade birch plywood
Enclosure WRC/WRX Version For direct exposure or extreme environments, berglassed with stainless steel hardware

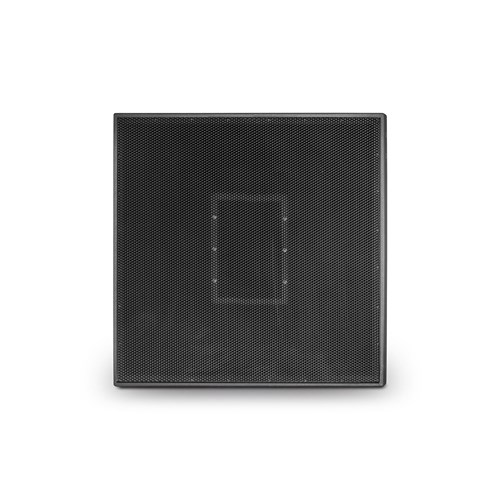

Grille Black powder coated zinc treated 14 gauge perforated steel with black foam backing
Grille WRC/WRX Version Three layer grille assy consisting of 16-gauge powder coated S.S., backed with O.C. foam and S.S. mesh
Input Connector NL4 for bi-amp operation
Input Connectors WRC/WRX Version 4 conductor 16 awg direct burial cable assy 20 length (or length TBD)
Suspension Attachment 32 total points (7 top and bottom, 7 each side, 4 back), M10 threaded hardware
Dimensions (H x W x D) 991 mm x 991 mm x 1145.8 mm (39.0 x 39.0 x 45.1 in)
Net Weight (each) 245 lbs (111.4 kg)
Crossover Modes Passive
System Power Rating MHF - 400 W (1600 W Peak) (IEC rated)
Environmental Available WRC/WRX Version: IP55
