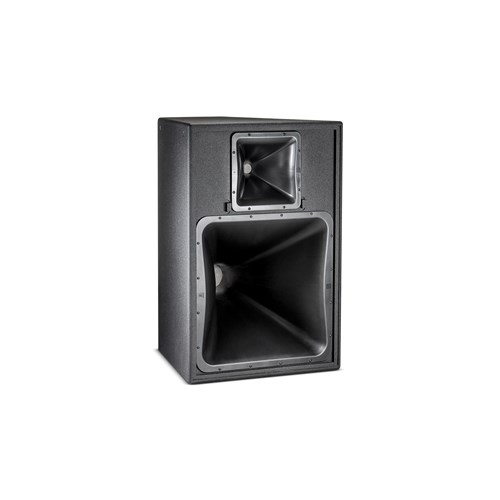

JBL PD6200/66-WRX - Precision Directivity Mid-High Frequency Loudspeakers with Extreme Weather Protection Treatment

Product Code: JBL PD6200-66-WRX

Key Features
High Output Two-Way MID/HIGH Frequency Loudspeaker with 8" MF and 60° x 60° Coverage Pattern. 200 mm (8 in.) CMCD-82H Cone Midrange Compression Driver and Large Format 2431H Neodymium HF Driver. 200 Hz to 17 kHz Frequency Range. 991 x 673 x 706 mm. (39 x 26.5 x 27.8 in), 58.8 kg (130 lbs). With Extreme Weather Protection Treatment. Refer to WEATHER RESISTANT Configurations for AE, PD & VLA Series document for details regarding WRC/WRX models. Standard color is GRAY. Available in Black (-BK) & White (-WH). 8-10 weeks for 1-10 pcs if larger 10-or greater has to be reviewed.
Enquire Now
Qty Each (inc GST) Each
Estimated Lead time Contact Us
  • Features
  • Overview
  • Technical Specs
  • Documents

Precision Directivity Mid-High Frequency Loudspeakers

The PD6200 Series Precision Directivity mid-high frequency loudspeakers are designed for applications requiring high output capability with excellent pattern control.

Features

  • High power 200 mm (8 in) dual-coil CMCD Cone Midrange Compression Driver provides high sensitivity and high continuous SPL capability along with low distortion, extended bandwidth and improved phase coherence.
  • Large format neodymium HF driver provides clear, intelligible high frequency projection.
  • Large PT Progressive Transition waveguides provide excellent pattern control, low distortion at high SPL levels and smooth frequency response.
  • Rotatable waveguides allow either horizontal or vertical cabinet orientation.
    • Warranty

    We offer a 2 year warranty on this product from its date of purchase. For more information regarding our support, repair and warranty, please download our Warranty Guide here.

    Trade Terms
    This item is a firm order product, meaning it cannot be cancelled or returned once the purchase order is processed, except in cases of defect. Please verify that part numbers and descriptions are accurate before placing your order. For any confirmation or additional information, please contact AV Sales at 1800 00 77 80.
    Frequency Range 200 Hz to 18 kHz (-10 dB)
    Frequency Response 240 Hz to 16 kHz( 3 dB)
    Coverage Pattern /43: 40 x 30/64: 60 x 40/66: 60 x 60/95: 90 x 50
    Crossover Modes Bi-amp / Passive switchable
    Passive Crossover 6th order (36 dB / oct) Linkwitz-Riley HP & LP, 1.7 kHz
    Transducer Power Rating (AES) MF: 350 W (1400 W peak), 100 hrs HF: 75 W (300 W peak), 2 hrs
    Long-Term System Power Rating (IEC) Passive Mode: 300 W (1200 W peak), 100 hrs
    Maximum SPL MF: 137 dB SPL (143 dB peak)HF: 135 dB SPL (141 dB peak) Passive Mode: 136 dB SPL (142 dB peak)
    System Sensitivity (1w @ 1m) Passive Mode: 111 dB SPL
    Mid Frequency Driver CMCD 82H cone mid-range compression driver with integral 200 mm (8 in) diameter Neodymium Differential Drive NDD dual voice coil driver
    High Frequency Driver 2432H, 38 mm (1.5 in) exit compression driver with 75 mm (3 in) voice coil
    Nominal Impedance 8 ohms
    Enclosure Trapezoidal with 15 degree side angles, 16 mm (.625 in) exterior grade 11-ply Finnish birch plywood
    Suspension Attachment 20 points (5 top, 5 bottom, 4 each side, 2 rear), M10 threaded hardware (eyebolts NOT included, see optional accessories).
    Finish Black DuraFlex finish. White (-WH) available upon request.
    Optional Weather Resistant Versions WRC for outdoor placement where the loudspeaker will be sheltered from direct exposure to the elements. WRX for direct exposure or extreme environments, such as tropical or beach, or in areas with salt air, extreme high humidity or rapid changes in temperature.
    Grille Powder coated 14 gauge perforated steel, zinc-phosphate dipped, foam backing (grille cloth backing on white units)
    Input Connectors Neutrik Speakon NL4, plus CE-compliant covered barrier strip terminals. Barrier terminals accept up to 5.2 sq mm (10 AWG) wire or max width 9 mm (.375 in) spade lugs. Speakon in parallel with barrier strip for loop through.
    Environmental Specifications Mil-Std 810; IP-x3 per IEC529. For higher environmental ratings, use WRC or WRX.
    Dimensions (H x W x D in vertical orientation) 991 x 673 x 897 mm (39.0 x 26.5 x 35.3 in)
    Net Weight 69 kg (152 lb)
    Optional Accessories 229-00009-01 kit of three M10 x 35 mm forged shoulder steel eyebolts
