JBL MTC-81TB8 - Pre-Install In-Ceiling Tile Bridge for Pre-Install Backbox - Priced as Each Sold as 4 Pack

Product Code: JBL MTC-81TB8

Key Features
Tile Bridge for MTC-81BB8 backcan, 19 gauge steel with e-coating (priced as each, sold in packs of 4 pcs)
$63.39 inc GST
(EA)
Increase value Decrease value
Qty Each (inc GST) Each
Estimated Lead time 6-8 weeks
  • Features
  • Overview
  • Technical Specs
  • Documents

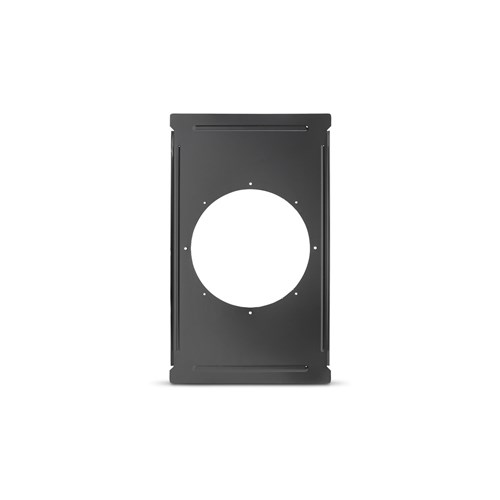

Pre-Install In-Ceiling Tile Bridge for Pre-Install Backbox

The MTC-81TB8 tile bridge is designed for use in applications requiring pre-installed backcans in suspended ceiling applications and is compatible with ceiling speakers having a 286 mm (11.25 in) mounting circle diameter, such as the JBL 8138 ceiling loudspeaker, and the JBL MTC-81BB8 pre-install backbox.

Features

  • Fits 8138 speaker and MTC-81BB8 backbox
  • Load-bearing bridge eliminates ceiling tile sag by distributing weight to the ceiling’s support system
  • Rust-resistant 19-Gauge (1 mm thick) steel construction and e-coated finish ensures long service life.
  • Fits 610 mm (24 in) and 600 mm (23.6 in) tile grids

Important Order Information: The price displayed for this item is the price of a singe unit. However, this item is packaged and sold as a carton of 4 units. Please note, this item must be purchased in multiples of 4 units.

Warranty

We offer a 2 year warranty on this product from its date of purchase. For more information regarding our support, repair and warranty, please download our Warranty Guide here.

Material 19 gauge (1.0 mm thickness) steel, finished in black polymer e-coating for a high level of rust resistance.
Attachment Points 4 clip-nuts (ie, speed-clips, tinnerman clips) fit 4 mm tapping screws attaching speaker to tile bridge.
Thru-Holes 4 thru-holes on 286 mm (11.25 in) mounting circle for attaching tile bridge to backcan
Dimensions (L x D) 600 mm (23.6 in) length x 359 mm (14 in) width
Net Weight (ea) 0.9 kg (2.0 lbs)
Shipping Weight (ea) 1.3 kg (2.7 lbs)
Associated Models 8138 200 mm (8 in) ceiling speakerMTC-81BB8 backbox
