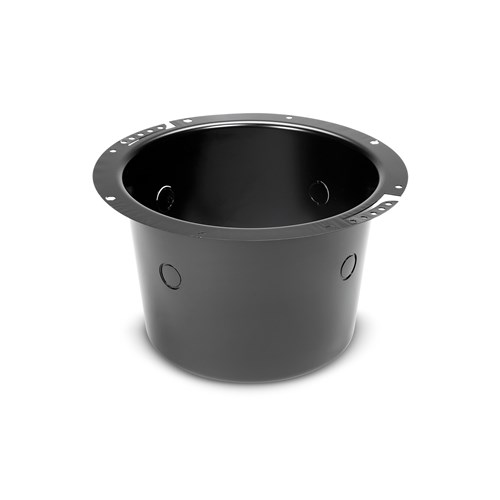

JBL MTC-81BB8 - Pre-Install In-Ceiling Backcan - Priced as Each Sold as 4 Pack

Product Code: JBL MTC-81BB8

Key Features
Pre-Install backcan for 8138, 7.4 liter, 7"H x 11-3/4" dia, 11-1/4" mounting circle, 16 gauge steel, e-coated (priced as each sold in packs of 4 pcs)
$228.20 inc GST
(EA)
Increase value Decrease value
Qty Each (inc GST) Each
Estimated Lead time 6-8 weeks
  • Features
  • Overview
  • Technical Specs
  • Documents

Pre-Install In-Ceiling Backcan

The MTC-81BB8 is designed for use in applications requiring preinstalled backcans and is compatible with ceiling speakers having a 286 mm (11.25 in) mounting circle diameter, such as the JBL 8138 ceiling loudspeaker, and the JBL MTC-81TB8 tile bridge for suspended ceilings.

Features

  • Fits 8138 speaker and MTC-81TB8 Tile Bridge
  • Extra-large 7.4 liter (0.26 cu ft) volume allows for extra bass
  • Industry standard 286 mm (11.25 in) mounting circle
  • Five conduit knockouts
  • Nesting during storage minimizes storage space requirements

Important Order Information: The price displayed for this item is the price of a singe unit. However, this item is packaged and sold as a carton of 4 units. Please note, this item must be purchased in multiples of 4 units.

Warranty

We offer a 2 year warranty on this product from its date of purchase. For more information regarding our support, repair and warranty, please download our Warranty Guide here.

Internal Volume 7.4 liters (0.26 cu ft)
Knockouts 22 mm (0.87 in) diameter opening
Five (5) locations 4 on side of can1 on top of panel of can
Suspension Tabs 2 flexible perforated mounting straps, one on each side.
Attachment Points 4 clip-nuts on 286 mm (11.25 in) mounting circle fix M4 tapping screws for attaching tile bridge to backcan, plus 4 thru holes providing clearance for screws from speaker to attach to tile bridge (see assembly drawing).
Material 16 gauge (1.3 mm thick) steel, finished in black polymer E-coating for a high level of rust resistance.
Dimensions (H x W x D) 178 mm (7 in) height x 300 mm (11.75 in) width and depth
Net Weight (ea) 1.1 kg (2.5 lbs)
Shipping Weight (ea) 1.5 kg (3.2 lbs)
Associated Models 8138 200 mm (8 in) ceiling speakerMTC-81TB8 tile bridge for 600 mm (24 in) ceiling tile applications.
