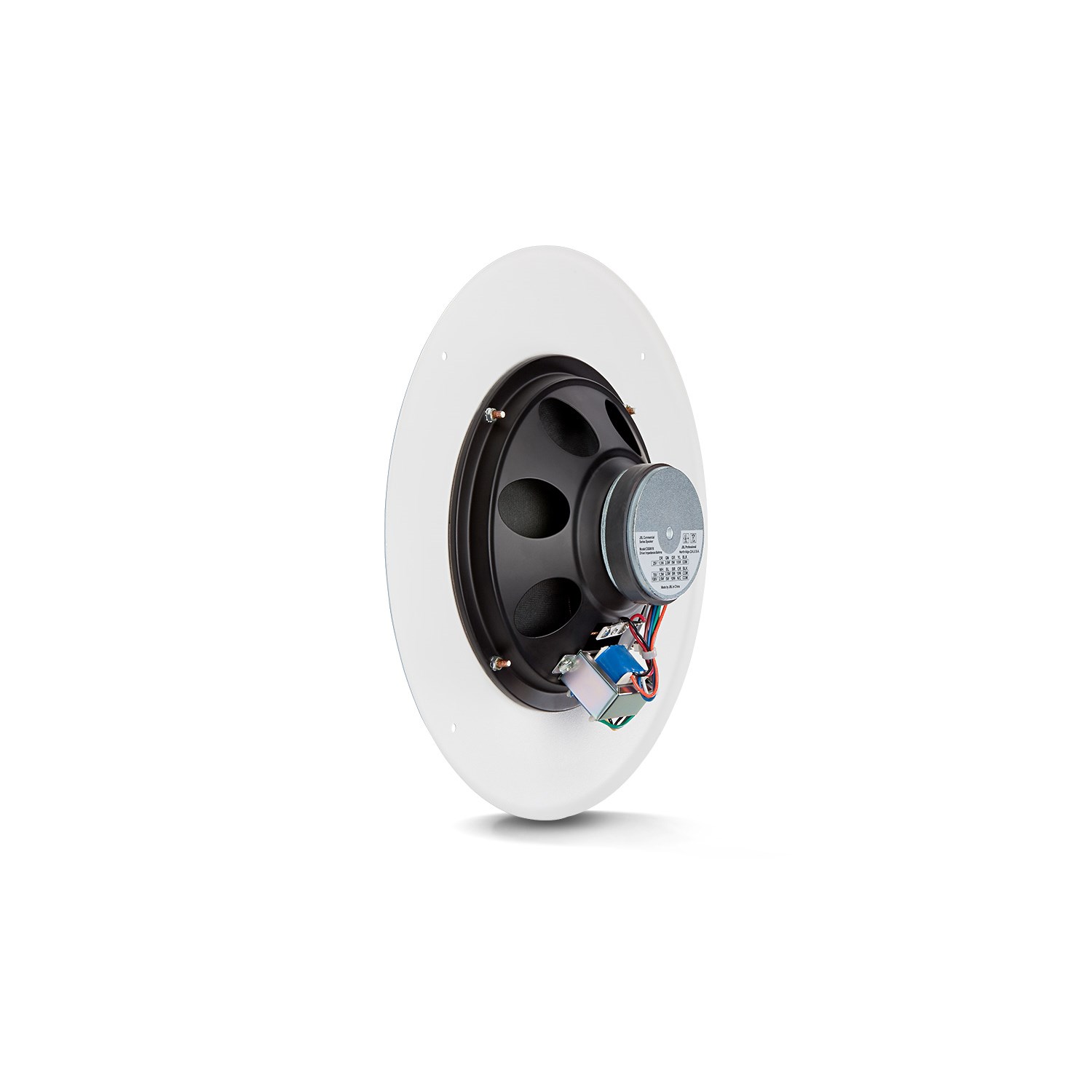

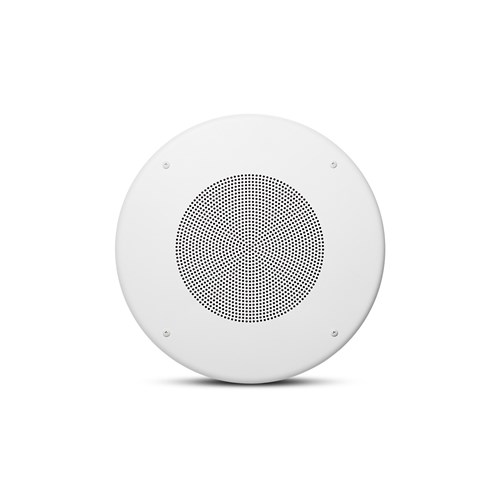

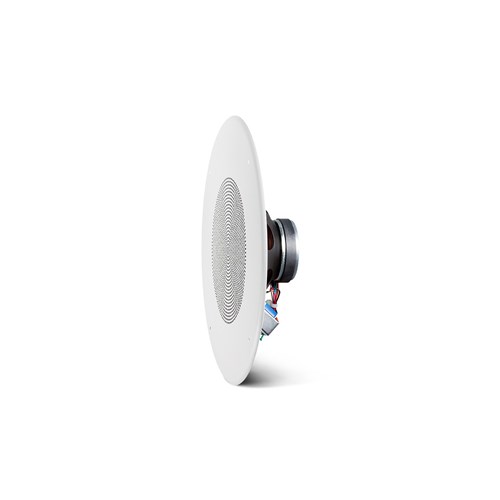

JBL CSS8018 - 200 mm 8 Inch Commercial Series Ceiling Speakers

Product Code: JBL CSS8018

Key Features
8" Commercial Series Ceiling Speaker. Very high 97 dB sens, 10W multi-tap for 100V/70V 25V, pre-assembled with driver/grille/transformer, 110 deg coverage; punched metal grille, compatible with CSS-BB8 backcan and CSS-TB4/8 tile rails (priced as each; sold individually; master packs are 6 pcs).
$126.56 inc GST
(EA)
Increase value Decrease value
Qty Each (inc GST) Each
In Stock
  • Features
  • Overview
  • Technical Specs
  • Documents

200 mm (8 in) Commercial Series Ceiling Speakers

JBL’s Commercial Series Ceiling Speakers provide excellent performance for paging and background music applications. High sensitivity across the product line provides maximum sound level, even at low tap settings.

Features

  • Very high 97 dB sensitivity
  • 10 Watt multi-tap transformer for 100V, 70V and 25V distributed lines
  • Fits CSS-BB8 backcan
Warranty

We offer a 2 year warranty on this product from its date of purchase. For more information regarding our support, repair and warranty, please download our Warranty Guide here.

Driver Size (dual-cone) 200 mm (8 in)
Driver Sensitivity (mid-range) (1W [2.83V], 1m, 2k 6k Hz) 97 dB
Frequency Range (-10 dB) Driver/Grille Assembly 50 Hz 17 kHz
Installed in CSS-BB backcan 90 Hz 17 kHz
Coverage (2 kHz) 110
Driver Continuous Power Handling 20 Watts
100V Taps 10W, 5W, 2.5W
70V Taps 10W, 5W, 2.5W, 1.3W
25V Taps 10W, 5W, 2.5W, 1.3W
Transformer Insertion Loss 1.5 dB Maximum
Transformer Connection Bare wire
Motor Mass 283 g (10 oz)
Safety Agency Suitable for use in air handling spaces per UL1480, UL2043, NFPA 90 & NFPA 70, when installed with corresponding UL Listed backcan, below. S7232/UL Listed, Signaling Speaker. Transformer UL registered per UL1876. In accordance with IEC60849/EN60849.
Matching CSS Backcan CSS-BB8 (0.15 cu ft)
Other Compatible Backcans MTC-81BB8 (0.26 cu ft) MTC-200BB6 (0.5 cu ft) MTC-300BB8 (1.0 cu ft)
Bolt Mounting Circle to Backcan 4 points on 286 mm (11.25 in) diameter
Cutout DiameterOpen-back 216 mm (8.5 in)
In CSS-BB backcan 295 mm (11.7 in)
Depth (behind grille) 73 mm (2.9 in)
Grille Diameter 327 mm (12.9 in)
Net Weight (ea) 1.58 kg (3.5 lb)
Shipping Weight (ea) 2.25 kg (5.0 lb)
Included Accessories 4 pcs M4 x 40 mm sheet metal screws for attaching speaker/driver/transformer assembly to corresponding backcan.
