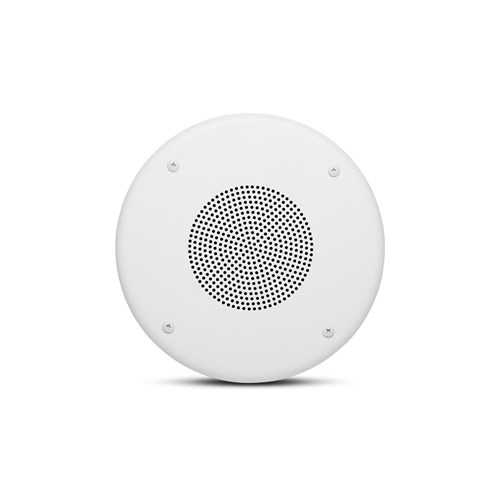

JBL CSS8004 - 100 mm 4 Inch Commercial Series Ceiling Speakers

Product Code: JBL CSS8004

Key Features

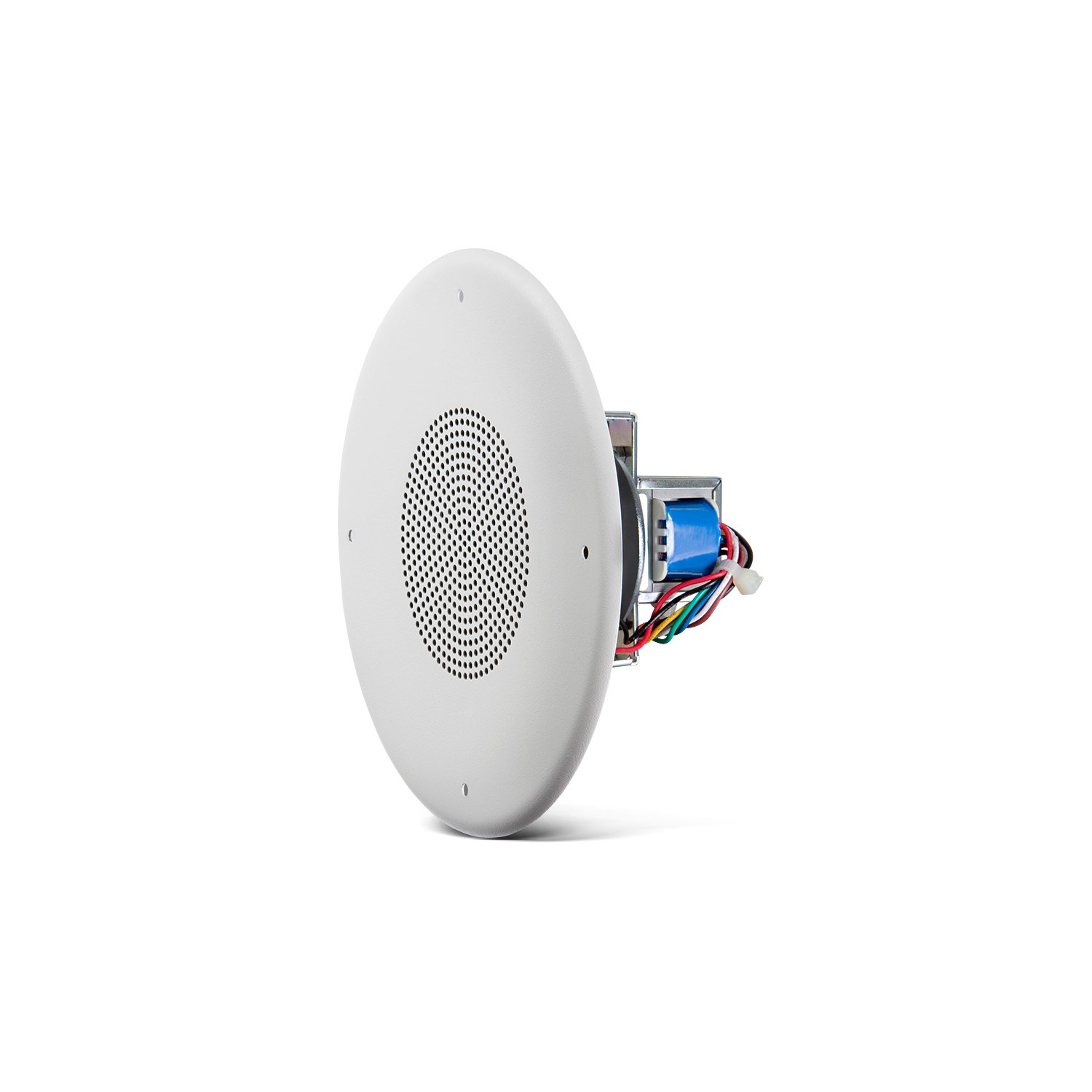

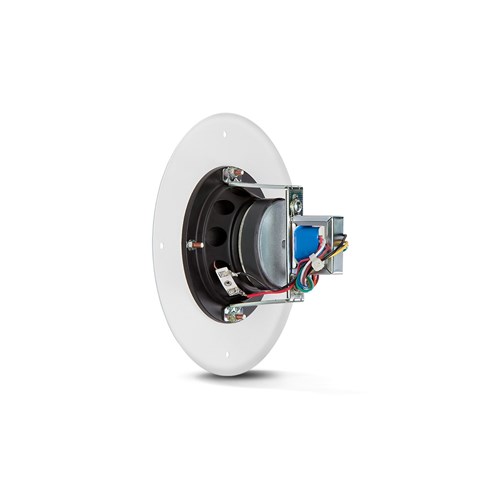

4" Commercial Series Ceiling Speaker. 90 dB sens, 5W multi-tap for 100V/70V 25V, pre-assembled with driver/grille/transformer, 175 deg coverage; punched metal grille, compatible with CSS-BB4 backcan and CSS-TB4/8 tile rails (priced as each; sold individually; master packs are 6 pcs).
$70.71 inc GST
(EA)
Increase value Decrease value
Qty Each (inc GST) Each
In Stock
  • Features
  • Overview
  • Technical Specs
  • Documents

100 mm (4 in) Commercial Series Ceiling Speakers

JBL’s Commercial Series Ceiling Speakers provide excellent performance for paging and background music applications. High sensitivity across the product line provides maximum sound level, even at low tap settings.

Features

  • High 90 dB sensitivity
  • 5 Watt multi-tap transformer for 100V, 70V and 25V distributed lines
  • Very wide 175° coverage
  • Fits CSS-BB4 backcan
Warranty

We offer a 2 year warranty on this product from its date of purchase. For more information regarding our support, repair and warranty, please download our Warranty Guide here.

Driver Size (dual-cone) 100 mm (4 in)
Driver Sensitivity (mid-range) (1W [2.83V], 1m, 2k 6k Hz) 90 dB
Frequency Range (-10 dB) Driver/Grille Assembly 85 Hz 18 kHz
Installed in CSS-BB backcan 130 Hz 18 kHz
Coverage (2 kHz) 175
Driver Continuous Power Handling 15 Watts
100V Taps 5W, 2.5W, 1.3W
70V Taps 5W, 2.5W, 1.3W, 0.7W
25V Taps 5W, 2.5W, 1.3W, 0.7W
Transformer Insertion Loss 1.5 dB Maximum
Transformer Connection Bare wire
Motor Mass 200 g (7 oz)
Safety Agency Suitable for use in air handling spaces per UL1480, UL2043, NFPA 90 & NFPA 70, when installed with corresponding UL Listed backcan, below. S7232/UL Listed, Signaling Speaker. Transformer UL registered per UL1876. In accordance with IEC60849/EN60849.
Matching CSS Backcan CSS-BB4
Other Compatible Backcans N/A
Bolt Mounting Circle to Backcan 4 points on 165 mm(6.5 in) diameter
Cutout DiameterOpen-back 125 mm (5.0 in)
In CSS-BB backcan 170 mm (6.7 in)
Depth (behind grille) 94 mm (3.7 in)
Grille Diameter 198 mm (7.8 in)
Net Weight (ea) 0.90 kg (1.0 lb)
Shipping Weight (ea) 1.26 kg (2.8 lb)
Included Accessories 4 pcs M4 x 40 mm sheet metal screws for attaching speaker/driver/transformer assembly to corresponding backcan.
