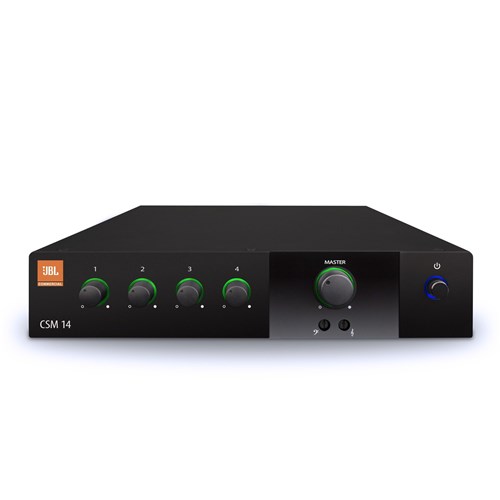

JBL CSM 14 - Four Inputs/One Output Commercial Series Mixer

Product Code: JBL CSM14

Key Features
4 Input - 1 Output Mixer, Fanless, 1U Half-Rack, Mounting kit included
$1,336.58 inc GST
(EA)
Increase value Decrease value
Qty Each (inc GST) Each
Stock on order
  • Features
  • Overview
  • Technical Specs
  • Documents

Backed by the combined technological prowess of multiple HARMAN brands, the JBL® Commercial Series Mixers (CSM) deliver unsurpassed quality in commercial sound.

Easily configured for a range of applications, such as background music, security, and paging, CSM units are designed for everything from schools and hospitals to restaurants and fitness facilities.

They feature RJ45 connectors for use with JBLCSR-V in-wall volume controls, and a universal power supply that accepts AC voltages from 100 to 240 VAC, 50/60 Hz. Plus, they're built using HARMAN's GreenEdge™ clean standards to offer numerous energy-efficient benefits, including a lighter weight, space-saving design, and conforming to RoHS standards.

Features

  • 4 or 8 inputs with 1 or 2 channel outputs
  • Fanless, space-saving 1U design
  • Configurable output routing (2 channel models only)
  • Independent base/treble controls

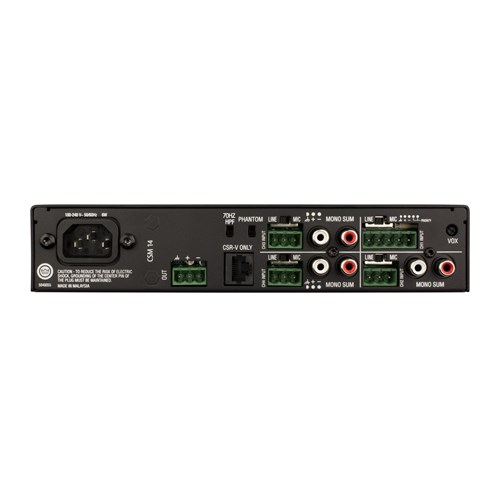

  • Euro-block type mic/line input and output connectors, and unbalanced RCA inputs for consumer connection
  • Supports JBL CSR-V wall controller via Ethernet cable
  • Priority muting, VOX ducking, and phantom power for all models
Warranty

We offer a 3 year warranty on this product from its date of purchase. For more information regarding our support, repair and warranty, please download our Warranty Guide here.

Inputs 4
Output Channels 1
Input Sensitivity (Mic) 3mVrms
Input Sensitivity (Line) 775mVrms
Input Sensitivity (RCA) 300mVrms
Phantom Power 27VDC
Priority Muting Yes
Configurable Output Routing No
AC Line Voltage 100 - 240V, 50/60 Hz
Dimensions 1.7" x 8.6" x 11.9" (43.3mm x 218.5 mm x 303.4mm)
