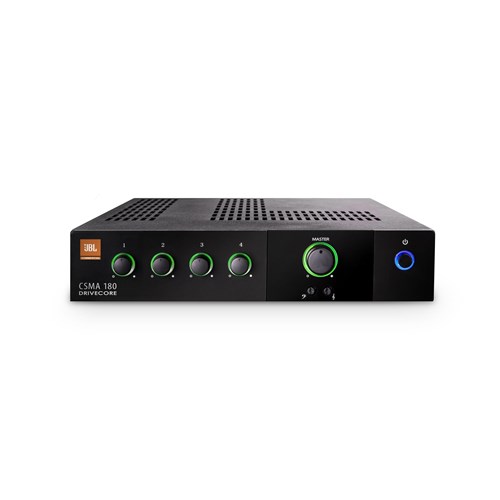

JBL CSMA 180 - 4-input 1 x 80W DriveCore Mixer-Amplifier

Product Code: JBL CSMA180

Key Features
4 input - 1 x 80W DriveCore Mixer-Amp, Fanless, 4ohm/8ohm/70V/100V, 1U Half-Rack, Mounting kit
$1,866.07 inc GST
(EA)
Increase value Decrease value
Qty Each (inc GST) Each
In Stock
  • Features
  • Overview
  • Technical Specs
  • Documents

The JBL® CSMA series of Mixer-Amplifiers are a professional tool with a sleek industrial look that is designed and built for commercial sound applications. Utilizing Crown's DriveCore technology enables significantly reduced size and weight all mixer/amps are highly efficient, fanless and just 1U rack space high. There are both single channel and two channel models with four or eight mixer channels, respectively.

The CSMA mixer/amps offer unmatched ease of use, with a clean, front panel featuring only volume controls for each channel, master volume adjustment, adjustable bass and treble controls and a power switch. All the volume controls are surrounded by an illuminated ring, making them easy to see and operate in darkened environments. The amplifier can drive 8 ohm and 4 ohm loads and can be used with 70V and 100V distributed audio systems without the need for a separate transformer. In addition to balanced mic/line inputs, unbalanced RCA inputs and speaker connections, all units include RJ45 connectors for use with JBL CSR-V in-wall volume controls. All models feature a universal power supply which enables the ability to accept AC voltages from 100 to 240 VAC, 50/60Hz.

JBL Commercial mixer/amps are manufactured under HARMAN's GreenEdge™ environmental initiative, conforming to lead-free RoHS standards and utilizing recycled copper, aluminum and steel, an energy-saving powder coat finishing process and other environmentally-conscious manufacturing processes. Their highly efficient DriveCore design reduces power consumption and yields much more efficient operation up to 80 percent more efficient than previous designs. All models carry a 3-year no-fault transferable warranty.

Features

  • 4 inputs with 1 output of 80 or 120-watts of power
  • Ideal for commercial and industrial use
  • Fanless, space-saving 1U design
  • Sleek industrial look with illuminated rings, making them easy to see and operate
  • Euro-block type mic/line input connectors and output connectors
  • Independent Bass and Treble controls for each output channel
  • Supports 70V and 100V distributed audio systems without the need for a separate transformer
  • Remote volume control capability using JBL CSR-V module and standard Ethernet cable
  • Priority muting
  • Configurable output routing
  • Utilizes Crown's DriveCoreTM technology providing excellent audio performance with high efficiency
  • Manufactured to lead-free ROHS standards, utilizing recycled metals, and using an energy-saving powder coat process
  • Includes rack mounting kit
  • Three-Year, No-Fault, Fully Transferable Warranty completely protects your investment
  • Energy Star® Certified
Warranty

We offer a 3 year warranty on this product from its date of purchase. For more information regarding our support, repair and warranty, please download our Warranty Guide here.

Output 120W @ 4/8 Ohms (1kHz Power, THD+N<0.5%
Frequency Response +/- 1dB (@1W into 4 or 8 Ohms)
Load Impedance Stable from 2 - 16 Ohms
Sensitivity 1.4Vrms
Signal to Noise Ratio Greater than 100 dB - 1kHz, A-weighted
Input Impedance Balanced 20K Ohms/Unbalanced 10K Ohms
Max Input +20dBu Typical
Included Accessories Rack mounting kit
Dimensions 1.7" x 8.6" x 11.9" (43.3 mm x 218.5 mm x 303.4 mm)
Shipping Weight 180: 9.9 lbs (4.5 kg); 1120: 10.1 lbs (4.6 kg)
