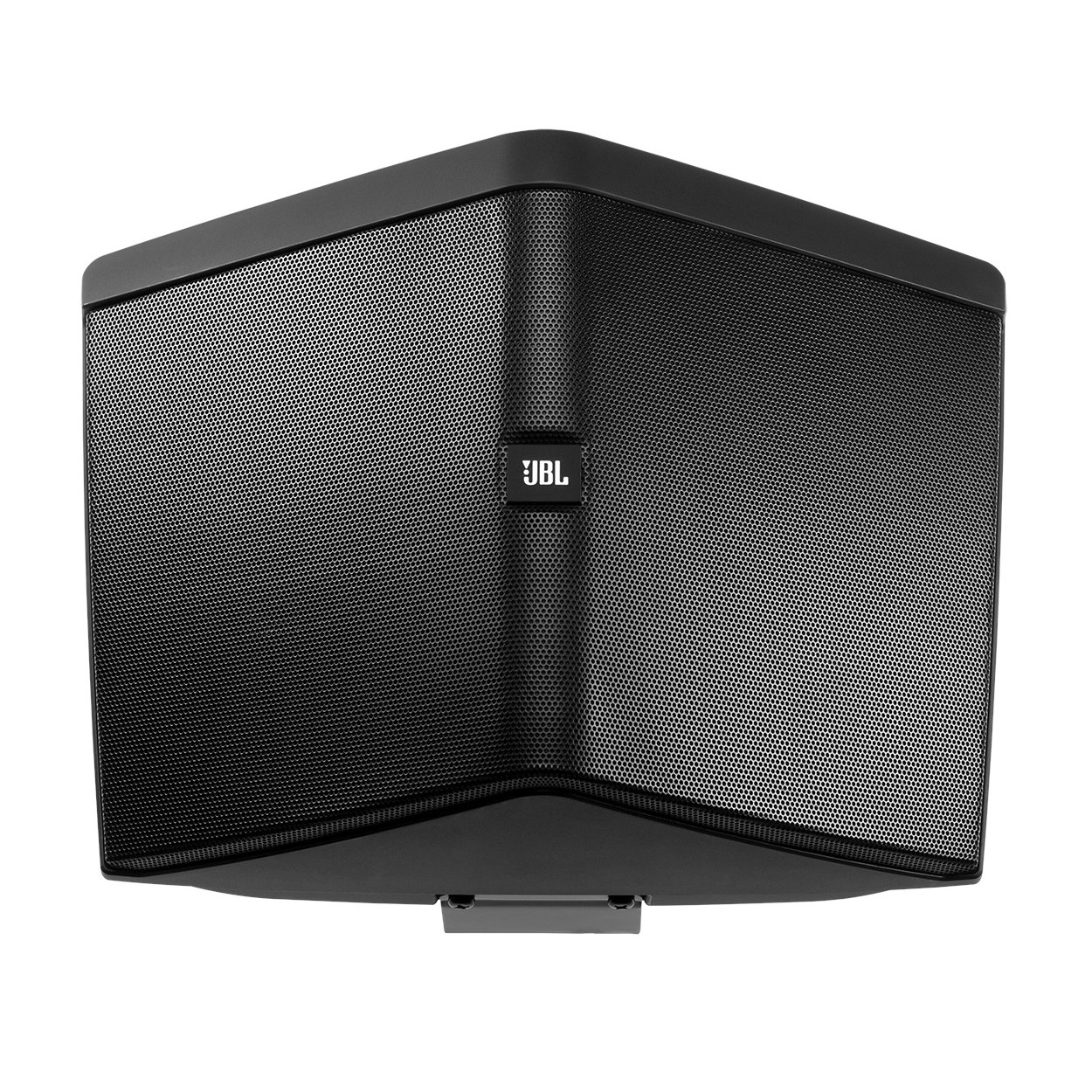

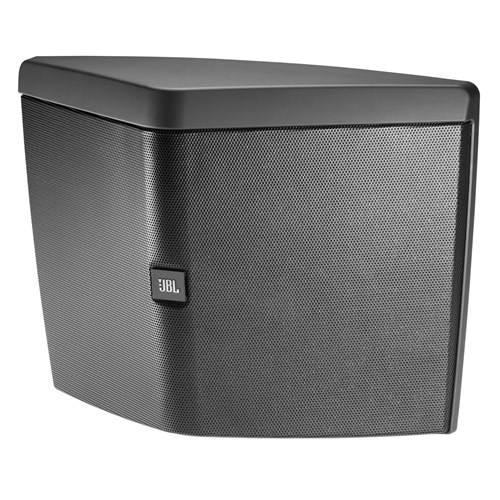

Name: JBL Control HST - Wide-Coverage Speaker with 5-1/4 Inch LF Dual Tweeters and HST Technology Black
Price: 790.98 AUD

Product Code: JBL CTRLHST-BK

(EA)

Overview
Technical Specs
Documents

Frequency Range (-10 dB)	50 Hz 20 kHz
Frequency Response ( 3 dB)	68 Hz 18 kHz
Coverage Pattern	180 H x 160 V (1 kHz 2 kHz, nominal) 160 H x 150 V (ave, 1 kHz 16 kHz)
Directivity Factor (Q)	5.4 (1 k 16 kHz)
Directivity Index (DI)	7.2 dB (1 k 16 kHz)
System Power Rating (IEC)	100 W (400 W peak), 2 hrs. 75 W (300 W peak), 100 hrs.
Sensitivity (2.83V @ 1m)	88 dB (Ave. 80 Hz 20 kHz)
Maximum SPL	Direct 8 : 108 dB (peaks of 114 dB) 60 W Tap: 97 dB @ 60W
Crossover Network	1.6 kHz, 3rd order (18 dB/oct) high-pass to HF, 2nd order low-pass to LF
Nominal Impedance	8 ohms
Transformer Taps	70V: 60W, 30W, 15W, 7.5W 100V: 60W, 30W, 15W
Low Frequency Driver	CMMD ceramic metal matrix diaphragm cone, 25 mm (1 in) voice coil.
High Frequency Drivers	Two splayed tweeters with CMMD-treated aluminum diaphragms, polyurethane surround, polyimide bobbin, neodymium magnet, and fluid-cooling.
Enclosure	Fiberglass-reinforced ABS
Attachment	Four M6 points for included U-bracket. Additional M6 insert point provided for adding secondary safety attachment cable. U-bracket must be utilized. Must be mounted on wall surface. Do not mount on pole.
Grille	Aluminum grille, painted to match cabinet color.
Input Connection	Removable locking euro-block 4-pin connector with screw-down terminals for bare wire. Two pins for input and two pins for parallel loop-thru. Max. wire 12 AWG (2.5 mm2).
Environmental	IP54 per IEC529. Exceeds Mil Spec 810 for humidity, salt spray, temperature & UV, and ASTM G85 for salt spray.
Dimensions	362 x 256 x 184 mm (14.25 x 10.1 x 7.2 in), cabinet 208 mm (8.2 in) depth with included bracket.
Colors	Available in black (RAL9004) and white (-WH, RAL9016)
Net Weight	3.6 kgs (8.0 lb), 4.3 kgs (9.5 lb) with U-bracket
Included Accessories	U-bracket, matches loudspeaker color (black or white), zinc-rich extra-thick powder coated steel.
