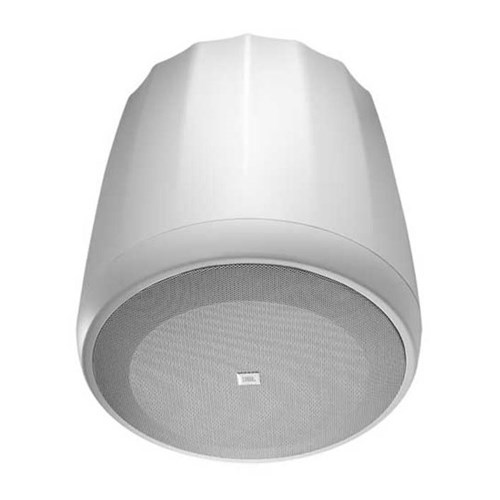

JBL Control 60PS/T - Pendant Subwoofer with Crossover White - Priced as Each Sold as Pair

Product Code: JBL CTRL60PST-WH

Key Features
High impact, 150 Watt direct radiating pendant subwoofer with built-in passive crossover for up to four satellite speakers. 200 mm (8 in) long-excursion driver. 8 ohm (150 Watt) and 70V/100V (100 Watt) operation. Hanging hardware with 4.5 m (15 foot) galvanized steel cable and easy to adjust clamp. Stylish design, available in black or white (-WH). UL listed (speaker and hanging cable system).(priced as each; sold in pairs).
$1,459.95 inc GST
(EA)
Increase value Decrease value
Qty Each (inc GST) Each
Stock on order
  • Features
  • Overview
  • Technical Specs
  • Documents

Pendant Subwoofer with Crossover

The Control 60PS/T pendant subwoofer loudspeaker provides bass extension and high impact for high-fidelity sound systems in a wide variety of applications including restaurants, retail stores, music cafes, health clubs, theme bars, leisure venues, and other locations where full-range high fidelity foreground/background music systems are utilized. Featuring 150 Watt power handling and low distortion, the long-excursion 200 mm (8 in) low frequency driver features butyl rubber surround for well-damped, tight sound quality and long-term reliability, and a polypropylene-coated cone for humidity protection. The high-temperature 50 mm (2 in) voice coil and low-mass fiberglass coil former ensure good bass transient response and excellent stability under high power, high dutycycle, working conditions.

Features

  • High impact, 150 Watt direct radiating pendant subwoofer with built-in passive crossover for up to four satellite speakers.
  • 200 mm (8 in) long-excursion driver.
  • 8 ohm (150 Watt) and 70V/100V (100 Watt) operation.
  • Hanging hardware with 4.5 m (15 foot) galvanized steel cable and easy to adjust clamp.
  • Stylish design, available in black or white (-WH).
  • UL listed (speaker and hanging cable system).

Important Order Information: The price displayed for this item is the price of a singe unit. However, this item is packaged and sold as a carton of 2 units. Please note, this item must be purchased in multiples of 2 units.

Warranty

We offer a 2 year warranty on this product from its date of purchase. For more information regarding our support, repair and warranty, please download our Warranty Guide here.

Frequency Range (-10 dB) 42 Hz 350 Hz
Frequency Response ( 3 dB) 55 Hz 125 Hz
Power Capacity 300 Watts Continuous Program Power, 100 hrs 150 Watts Continuous Pink Noise, 100 hrs
Nominal Sensitivity (2.83V/1m) 88 dB
Rated Maximum SPL 107 dB @ 1 m (3.3 ft) average, 113 dB peak
Rated Impedance 8 ohms
Transformer Taps 110W, 55W, 30W (& 15W@70V). Set via rotary tap-selector switch (70V/100V taps along with direct 8
Transformer Insertion Loss 0.98 dB @ 15W, 0.99 dB @ 30W, 0.94 dB @ 55W, 1.10 @ 110W
Standalone Hookup Connect to Input connector; built-in low-pass filter permanently engaged. Loop Out in parallel with Input connector (pre low-pass filter) for sending to additional speakers.
Subwoofer-Satellite Hookup For either two or four satellite speakers (not for one or three satellite speakers). With two satellite speakers, must connect to Sat 1 and Sat 2 terminals only (NC to Sat 3 and Sat 4 terminals). Satellite outputs highpassed. Suggested satellite speakers include Control 62P (pendant), Control 52 (surface-mount on-wall) and Control 42C (in-ceiling). Satellite speakers to be low-Z type (8 to 16
Transducer 200mm (8 in) polypropylene-coated paper cone with butyl rubber surround, 50 mm (2 in) high-temperature copper voice coil, vented fiberglass resin voice coil former.
Enclosure Material High impact polystyrene
Grille Zinc-plated steel grille with powder-coat finish, foam backing (grille and grille backing are removable for painting)
Environmental Exceeds Mil Spec 810 for humidity, salt spray, temperature & UV. IP44 capability per IEC 529 splash-proof rating
Termination Six removable locking 2-pin connectors with screw-down terminals. Input, Loop Out, Sat 1, Sat 2, Sat 3, Sat 4. Max wire 12 AWG (2.5 mm2). Rubber terminal covers included.
Suspension Two identical suspension cable systems (one as main suspension cable and the other as safety cable), each consisting of 4.5 m (15 ft) long, 2 mm (0.077 in) high-tensile galvanized-steel wire rope suspension cable with spring-clips for clipping onto the loudspeaker bracket and Gripple brand adjustable-height cable fasteners for infinitely adjustable height. Cable has SWL rating of 45 kg (99 lb).
Safety Agency Speaker listed per UL1480 (UEAY), transformer registered per UL1876. In accordance with IEC60849/EN60849. Suspension system and Gripple- brand cable fastener listed per UL1598 and UL2239, TUV, and CSA Class 3426-01 & Class 3426-81.
Dimensions 333 mm (13.1 in) diameter, 344 mm (13.6 in) height to top of cabinet. 369 mm (14.5 in) to top of suspension bracket.
Net Weight 7.6 kg (16.7 lb)
Shipping Weight 17.6 kg (38.7 lbs) per pair-packed carton
Included Accessories Two suspension cable systems (see suspension", above), six removable locking 2-pin euro-block connectors, six rubber cover boots for euroblock connectors.
Optional Accessories MTC-PC60 full top panel / terminal cover. Wire access holes in plastic cover to be drilled by installer to suit the number and dimensions of wire.
Colors Available in black or white (-WH). Paintable.
