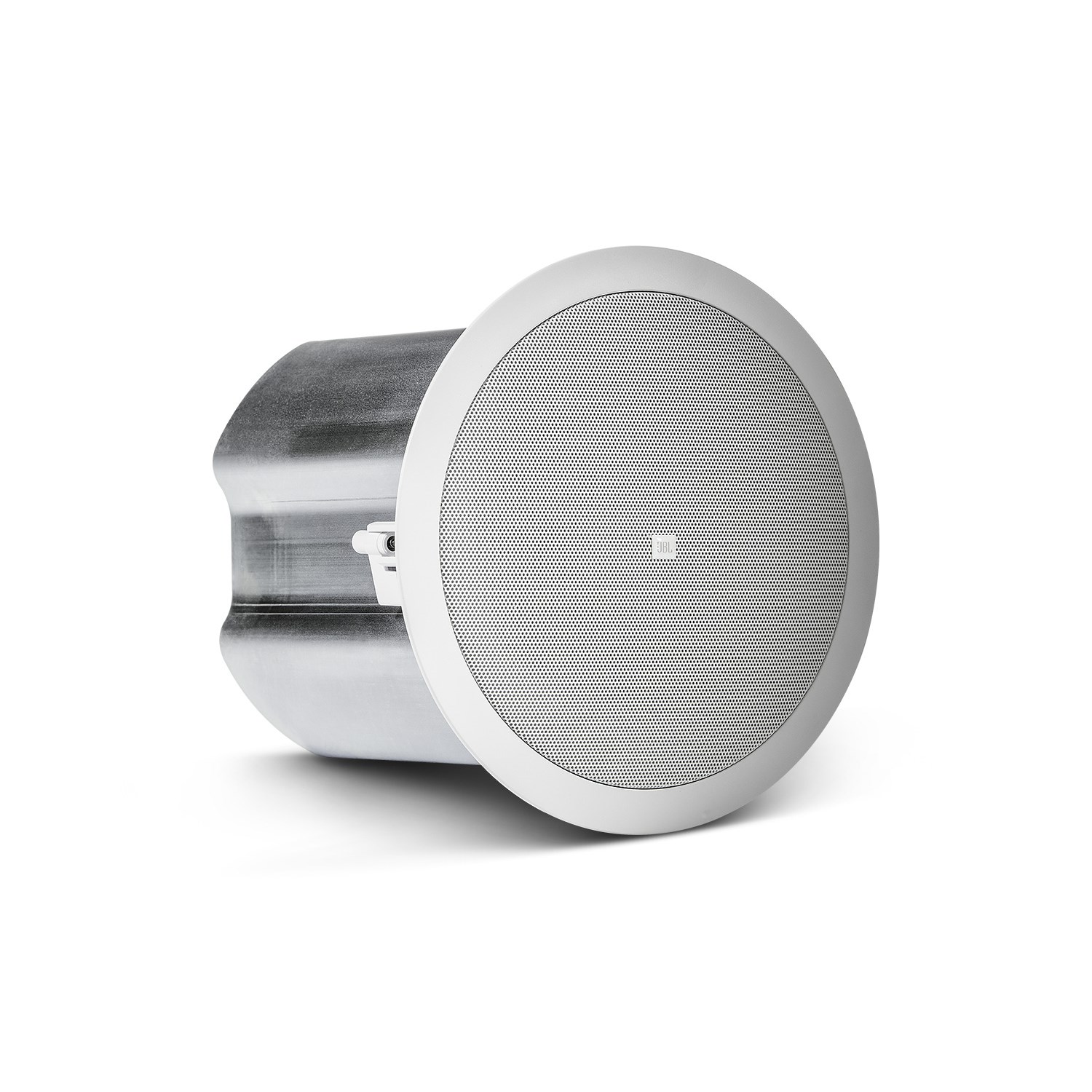

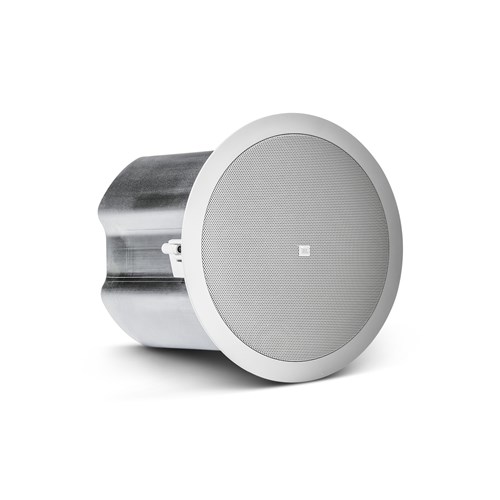

Frequency Range (-10 dB) | 62 Hz 20 kHz |
Frequency Response ( 3 dB) | 96 Hz 15 kHz |
Power Capacity (at low-Z) | Power Capacity (at low-Z)2: 100 Watts Continuous Program Power 50 Watts Continuous Pink Noise |
Rated Noise Power | 30W (30W tap) |
Rated Noise Voltage | 70V/100V (with 70V/100V tap settings) |
Nominal Sensitivity | 91 dB: 8 ohm tap |
EN54 Sensitivity (@ 4m) | 77 dB (per EN54-24 spectrum and measurement conditions at 4 meters). |
Coverage Pattern | 110 conical coverage (1 kHz - 16 kHz) |
Coverage Angles(by Frequency)Conical (Vertical & Horizontal) | 500 Hz: 1801000 Hz: 1602000 Hz: 1554000 Hz: 92 |
Reference Axis | Specification and measurement reference is directly on-axis vertically and horizontally, directly below the speaker as speaker it is installed in the horizontal ceiling plane |
Directivity Factor (Q) | 7.8 |
Directivity Index (DI) | 8.2 dB |
Rated Maximum SPL | 108 dB @ 1 m (3.3 ft) average, 116 dB peak |
EN54 Max SPL (@ 4m) | 91 dB (per EN54-24 spectrum and measurement conditions, 30W tap, at 4 meters) |
Nominal Impedance | 8 ohms (in direct/bypass 8 ohm setting); EN54 nominal impedance 7 ohms (based on min Z of 5.7 ohms at 11.2 kHz) 3.8W@70V; 7.5W@100V Tap: 1333 7.5W@70V; 15W@100V Tap: 667 15W@70V; 30W@100V Tap: 333 30W@70V; N/C@100V Tap: 166 |
Transformer Taps | 30W, 15W, 7.5W @ 70V or 100V (plus 3.8W @ 70V only) |
Crossover Network | 12 dB/oct (2nd order) low-pass to LF driver, 12 dB/oct (2nd order) high-pass to HF driver |
Fuse | Thermal Fuse, open temperature 152 degrees C, Rating >= 10A @ 250VAC |

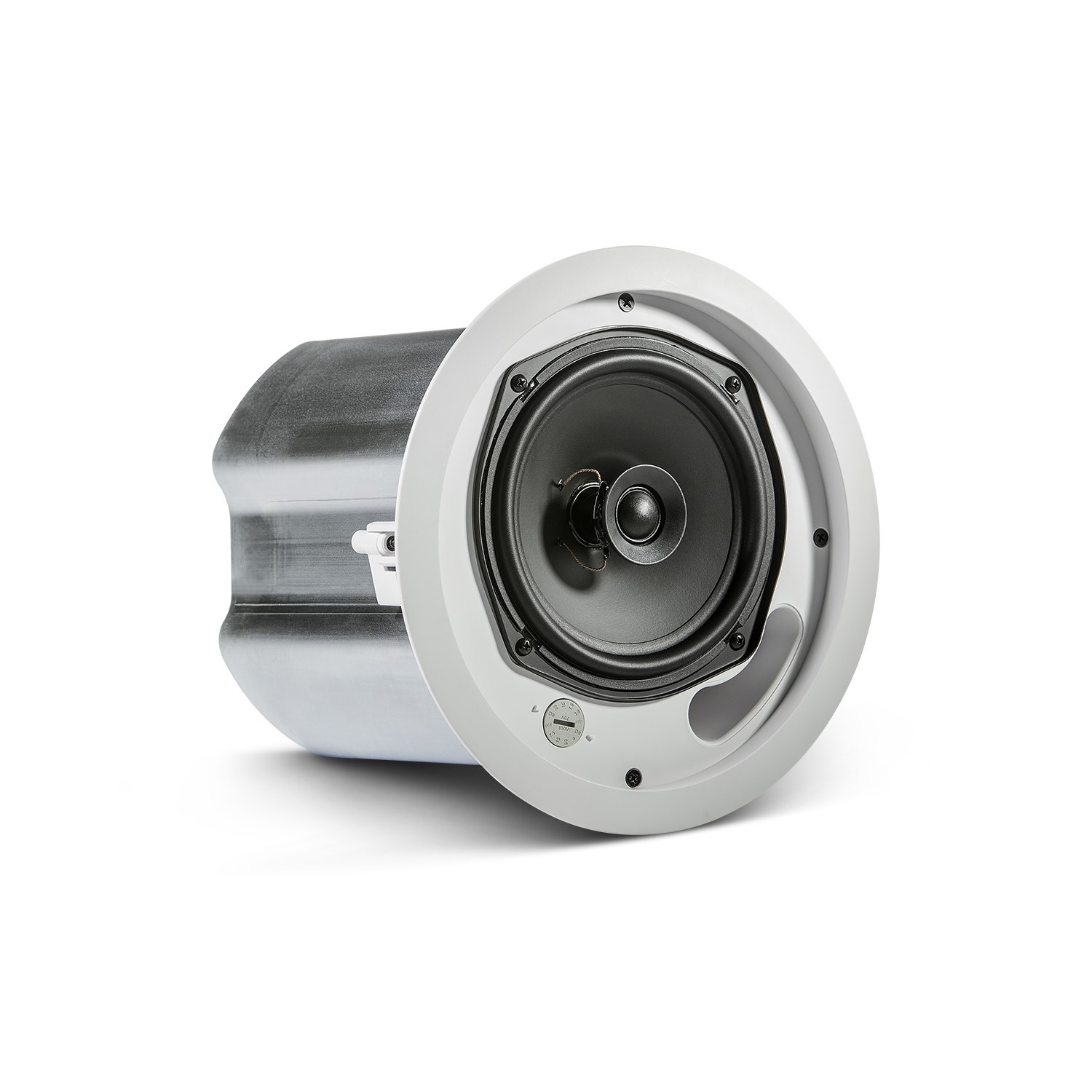

LF Driver | 165 mm (6.5 inch) with polypropylene cone, butyl rubber surround, anodized aluminum voice coil former, high temperature voice coil |
HF Driver | 19 mm (3/4 in), highly-damped treated-silk dome, Kapton voice coil, liquid cooling, wide dispersion waveguide |

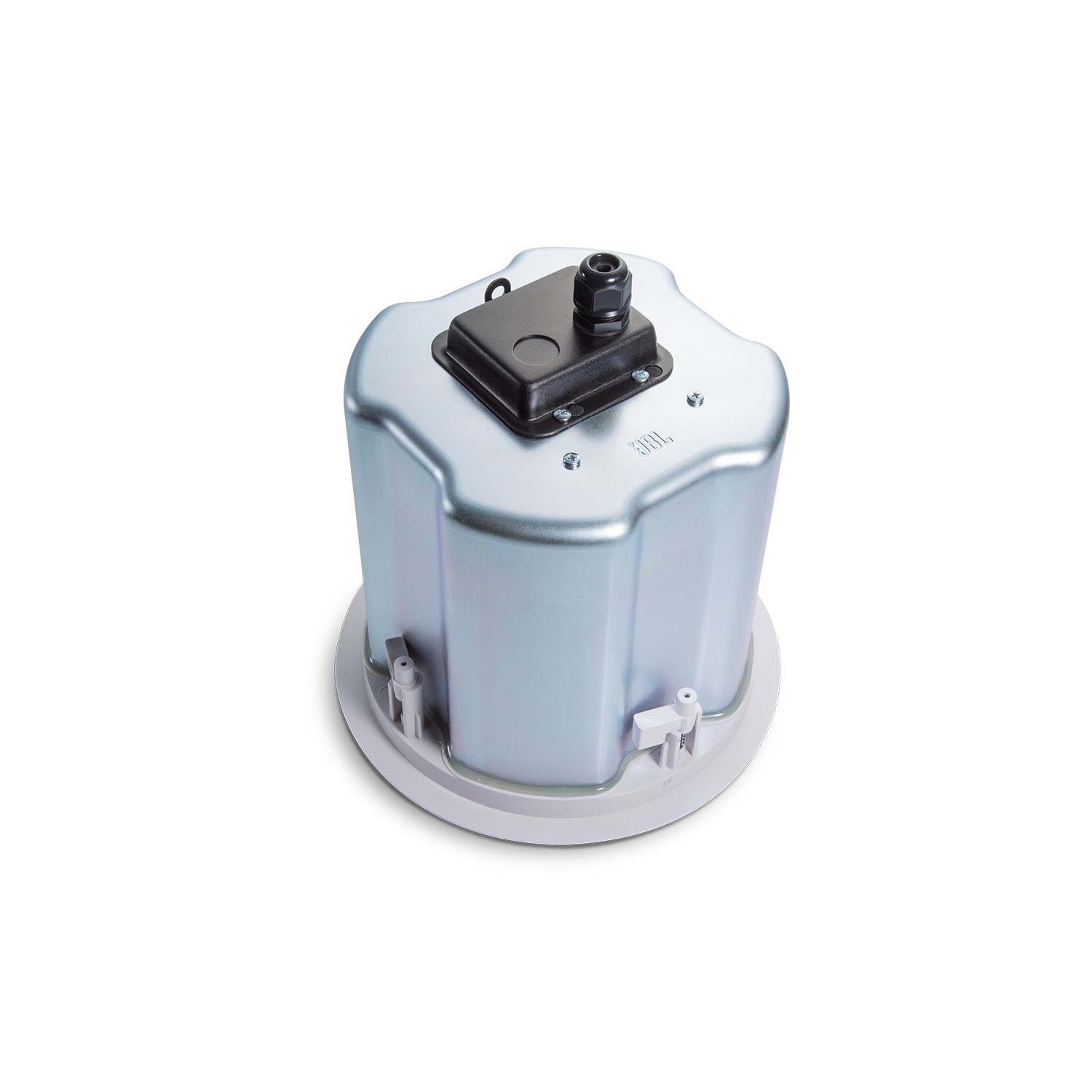

Connections | Input +, Input -, Earth (connected to backcan). Ceramic with brass inserts (3.2 mm/0.126 in opening), accommodates 2.5 sq mm / 12 AWG wire. |
Gland Nut/Strain Relief | Accommodates round jacketed cables 4.0 mm (0.16 in) through 9.0 mm (0.36 in) |
Materials | ABS baffle with UL94-V0 and UL94-5VB flame class fire rating; Zinc-plated steel backcan |
Safety Agency | EN54-24:2008 certified Type A (Certificate No. 0359-CPR-00485); Compliant with BS5839/8; UL1480, UL2043, NFPA90 & NFPA70; Suitable for use in air handling spaces, Signaling Speaker; rated IP-21 per IEC529/60529; Transformer UL registered per UL1876; ROHS, C-tick N108, CE compliant; Baffle meets UL94-V0 and UL94-5VB flammability rating; In accordance with IEC60849/ EN60849 systems |
Dimensions | 253 mm diameter x 262 mm from back of baffle to back of gland nut (10.0 in diameter x 10.3 in in depth) |
Ceiling Cutout Size | Circular cutout with 223 mm (8.8 in) diameter (cardboard cutout template included) |
Ceiling Thickness Range | Up to 38 mm (1.5 in) with stock dog-ears. MTC-TCD thickceiling dog-ears available for up to 60 mm (2.4 in) ceiling thicknesses |
Safety Seismic Attachment | One point, top surface |
Net Weight | 3.4 kg (7.4 lbs, one speaker) |
Shipping Weight | 11.2 kg (24.7 lbs, pair in master carton) |
Included Accessories | C-ring support backing plate, 2 tile support rails (for 2 ft or 600 mm tile spans; optional MTC-48TR extension available for larger 4 ft or 1200 mm tile spans), cutout template, paint shield, grille |
Optional Accessories | MTC-16WG high humidity grille MTC-26NC new construction bracket MTC-26MR mud-ring construction bracket MTC-TCD thick-ceiling dog-ears for ceiling thicknesses up to 60 mm (2.4 in, ordering one set = 24 dogears for 6 speakers) MTC-48TR tile rail for 1200 mm (4 ft) tile spans |
