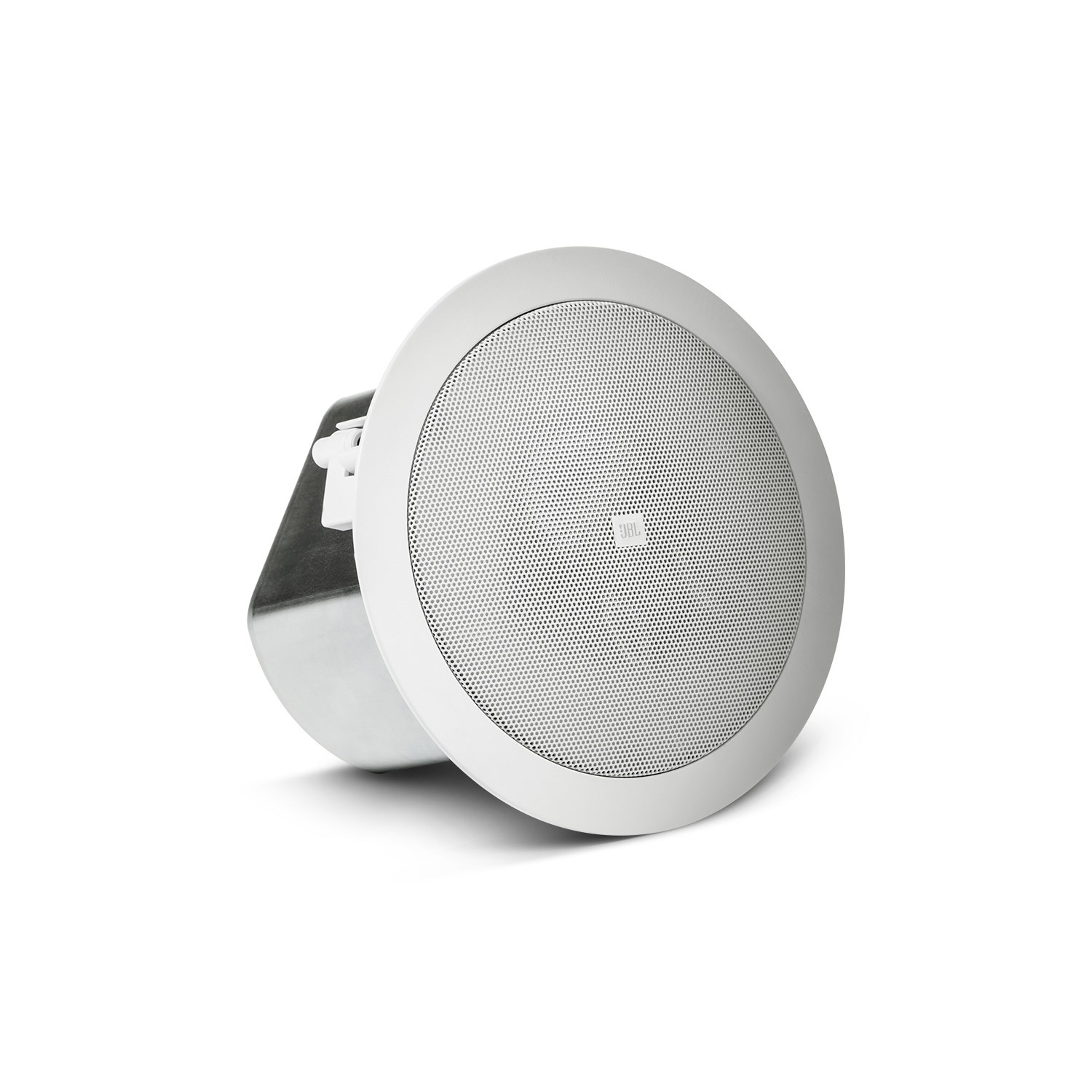

JBL Control 12C-VA - 3 Inch Compact Ceiling Loudspeakerfor EN54-24 Application White - Priced as Each Sold as Pair

Product Code: JBL CTRL12C-VA-WH

Key Features
3" Compact Ceiling Loudspeaker for EN54-24 Application, White
Enquire Now
Qty Each (inc GST) Each
In Stock
  • Features
  • Overview
  • Technical Specs
  • Documents

3" Compact Ceiling Loudspeaker for EN54-24 Application

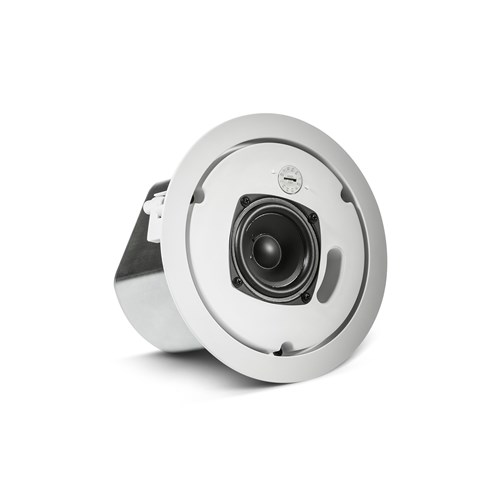

Control 12C-VA is a full-range, EN54-24 certified ceiling speaker consisting of a 76 mm (3 inch) full-range driver mounted in a vented, paintable baffle made of UV resistant UL94-V0 and UL94-5VB flammability-rated material, with a preattached blind-mount backcan for quick and easy installation. The speaker is designed to provide excellent sound quality for a wide variety of low to medium volume applications such as music cafes, business music systems, retail stores, music/paging systems, airports, reception/waiting rooms, lounges, courtrooms, convention centers, hotels, educational facilities, and more. The speaker delivers consistent sound quality for listeners located both off and on axis.

Features

  • 76 mm (3 in) full-range driver
  • EN54-24 Compliant

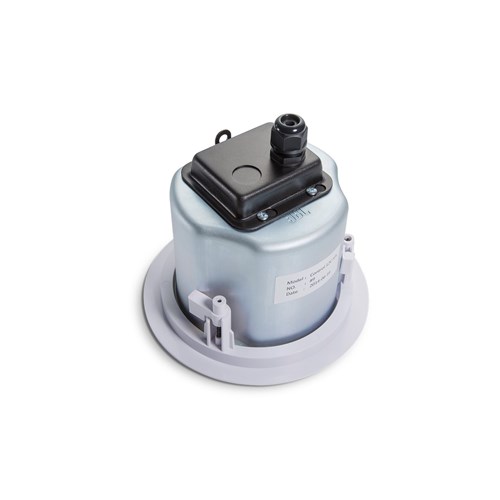

  • Blind-mount backcan for quick and easy install
  • Combined 70V/100V and low impedance direct operation
    • 20 Watts at 8Ω nominal setting
    • 15W multi-tap at 70V/100V
  • 68 Hz – 17 kHz bandwidth with wide 130° coverage

Important Order Information: The price displayed for this item is the price of a singe unit. However, this item is packaged and sold as a carton of 2 units. Please note, this item must be purchased in multiples of 2 units.

Warranty

We offer a 2 year warranty on this product from its date of purchase. For more information regarding our support, repair and warranty, please download our Warranty Guide here.

Trade Terms
This item is a firm order product, meaning it cannot be cancelled or returned once the purchase order is processed, except in cases of defect. Please verify that part numbers and descriptions are accurate before placing your order. For any confirmation or additional information, please contact AV Sales at 1800 00 77 80.
Frequency Range (-10 dB) 68 Hz 17 kHz
Frequency Response ( 3 dB) 95 Hz 15 kHz
Power Capacity (at low-Z) 40 Watts Continuous Program Power20 Watts Continuous Pink Noise
Rated Noise Power 15W (15W tap)
Rated Noise Voltage 70V/100V (with 70V/100V tap settings)
Nominal Sensitivity 84 dB: 8 ohm tap
EN54 Sensitivity (@ 4m) 72 dB (per EN54-24 spectrum and measurement conditions at 4 meters.)
Coverage Pattern 130 conical coverage (1 kHz - 16 kHz)
Coverage Angels(by Frequency)Conical (Vertical & Horizontal) 500 Hz: 1801000 Hz: 1752000 Hz: 1704000 Hz: 160
Reference Axis Specification and measurement reference is directly on-axis vertically and horizontally, directly below the speaker as speaker it is installed in the horizontal ceiling plane
Directivity Factor (Q) 9.8
Directivity Index (DI) 7.4 dB
Rated Maximum SPL 97 dB @ 1 m (3.3 ft) average, 103 dB peak
EN54 Max SPL (@ 4m) 84 dB (per EN54-24 spectrum and measurement 15W tap, at 4 meters)
Nominal Impedance 8 ohms (in direct/bypass 8 setting)1.9W@70V; 3.8W@100V Tap: 2667 3.8W@70V; 7.5W@100V Tap: 1333 7.5W@70V; 15W@100V Tap: 667 15W@70V; N/C@100V Tap: 333
Transformer Taps 15W, 7.5W, 3.8W @ 70V or 100V (plus 1.9W @ 70V only)
Fuse Thermal Fuse, open temperature 152 degrees C, Rating >= 10A @ 250VAC
Driver 76 mm (3 inch) with polypropylene cone, butyl rubber surround, anodized aluminum voice coil former, high temperature voice coil
Connections Input +, Input -, Earth (connected to backcan). Ceramic block with brass inserts (3.2 mm/0.126 in opening), accommodates 2.5 sq mm / 12 AWG wire.
Gland Nut/Strain Relief Accommodates round jacketed cables 4.0 mm (0.16 in) through 9.0 mm (0.36 in)
Materials ABS baffle with UL94-V0 and UL94-5VB flame class fire rating; Zinc-plated steel backcan
Safety Agency EN54-24:2008 certified Type A (Certificate No. 0359-CPR-00485); Compliant with BS5839/8; UL1480, UL2043, NFPA90 & NFPA70; Suitable for use in air handling spaces, Signaling Speaker; rated IP-21 per IEC529/60529; Transformer UL registered per UL1876; ROHS, C-tick N108, CE compliant; Baffle meets UL94-V0 and UL94-5VB flammability rating; In accordance with IEC60849/ EN60849 systems
Dimensions (H x W x D) 196 mm diameter x 174 mm from back of baffle to back of gland nut (7.7 in diameter x 6.9 in in depth)
Ceiling Cutout Size Circular cutout with 170 mm (6.7 in) diameter (cardboard cutout template included)
Ceiling Thickness Range Up to 35 mm (1.4 in) with stock dog-ears. MTC-TCD thickceiling dog-ears available for up to 55 mm (2.2 in) ceiling thicknesses
Safety Seismic Attachment One point, top surface
Net Weight 1.6 kg (3.5 lbs, one speaker)
Shipping Weight 6.7 kg (14.7 lbs, pair in master carton)
Included Accessories C-ring support backing plate, 2 tile support rails (for 2 ft or 600 mm tile spans; optional MTC-48TR extension available for larger 4 ft or 1200 mm tile spans), cutout template, paint shield, grille
Optional Accessories MTC-12WG high humidity grille MTC-24NC new construction bracket MTC-24MR mud-ring construction bracket MTC-TCD thick-ceiling dog-ears for ceiling thicknesses up to 55 mm (2.2 in, ordering one set = 24 dogears for 8 speakers) MTC-48TR tile rail for 1200 mm (4 ft) tile spans
