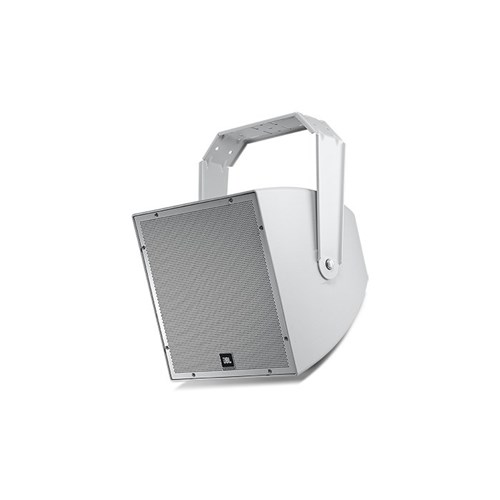

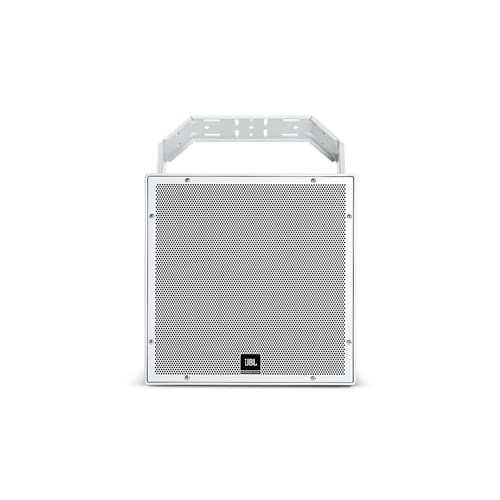

JBL AWC159 - All-Weather Compact 2-Way Coaxial Loudspeaker with 15 Inch LF Grey

Product Code: JBL AWC159-GY

Key Features
15" 2-Way All-Weather Compact Co-axial Loudspeaker. 90° x 90° broadband control, co-ax driver with 380 mm (15 in) Kevlar-reinforced woofer with 75 mm (3 in) voice coil and 38 mm (1.5 in) compression driver, high-temp polymer diaphragm. Excellent clarity extended frequency response. 500 Watt power handling (2000 W peaks), 52 Hz - 20 kHz frequency range, 300 Watt 70V/100V multi-tap or direct 8 ohm low-impedance. U-Bracket included. Gray or black (-BK), paintable. Sold and packed as each.
$5,101.09 inc GST
(EA)
Increase value Decrease value
Qty Each (inc GST) Each
Estimated Lead time 6-8 weeks
  • Features
  • Overview
  • Technical Specs
  • Documents

All-Weather Compact 2-Way Coaxial Loudspeaker with 15" LF

The AWC159 is a compact, coaxial-driver, 2-way, highly weather-resistant full-range loudspeaker system which is ideal for speech and music in a wide variety of applications, including sports facilities, racetracks, stadiums, fairgrounds, rodeos, skating rinks, themed entertainment venues, cruise ships, water parks, outdoor background music/paging systems, swimming pools, and a wide variety of other outdoor or indoor venue types.

Features

  • Highly weather-resistant IP56 rating
  • Consistent 90 x 90 broadband pattern control
  • Components:
    380 mm (15 in) woofer with Kevlar-reinforced cone and 75 mm (3 in) voice coil.
    38 mm (1.5 in) diaphragm compression driver with patented design and high temperature polymer diaphragm.
  • Extraordinary clarity for speech, with extended frequency response for music.
  • Advanced high-slope crossover network for constant coverage and smooth, natural midrange.
  • 500 Watt power handling (average continuous pink noise) with high sensitivity provides high SPL capability.
  • High-power passive crossover network.
  • 52 Hz 20 kHz frequency response.
  • 300 Watt 70V/100V multi-tap (built-in transformer) or direct 8 low-impedance.
    • Warranty

    We offer a 2 year warranty on this product from its date of purchase. For more information regarding our support, repair and warranty, please download our Warranty Guide here.

    Frequency Range (-10 dB) 52 Hz 20 kHz
    Frequency Response ( 3 dB) 80 Hz 20 kHz
    Coverage Pattern 90 x 90
    Directivity Factor 11.1 (1 kHz 16 kHz)
    Directivity Index (DI) 9.7 dB (1 kHz 16 kHz)
    Long-Term System Power Rating (IEC) 500 W (2000 W peak), 2 hrs. 300 W (1200 W peak), 100 hrs
    Sensitivity (2.83V @ 1m) 98 dB (Ave. 80 Hz 20 kHz)
    Maximum SPL Direct 8 : 125 dB (peaks of 131 dB) 300 W Tap: 123 dB (peaks of 129 dB)
    Crossover Network 1.5 kHz, 4th order (24 dB/oct) high-pass plus conjugate to HF, 2nd order low-pass to LF
    Nominal Impedance 8 ohms
    Transformer Taps 70V: 300W, 150W, 75W, 38W 100V: 300W, 150W, 75W
    Low Frequency Driver Kevlar-reinforced cone with weather treatment, 75 mm (3 in) voice coil.
    High Frequency Driver 2408H-2 38 mm (1.5 in) diaphragm and voice coil diameter, patented high-temperature annular polymer diaphragm, copper-clad aluminum coil, fluid-cooled.
    Enclosure ABS with Glass enclosure, heavily braced
    Attachment Two M10 (course-thread) points for included U-bracket. M6 secondary safety attachment point on back panel.
    Grille Corrosion-resistant zinc-rich extra-thick powder coated steel grille, 3-layer assembly with foam and woven poly mesh backing.
    Input Connection CE-compliant covered barrier strip terminals. Barrier terminals accept up to 8 mm outside 4 mm inside open-lug (#6 or #8) plus bare wire up to 2.5 mm2 (12 AWG) wire or spade lugs. Terminal compartment cover equipped with gland nut that forms water-tight seal with roundjacketed cables with outside diameters between 4.0 mm (0.16") and 9.0 mm (0.36")
    Environmental IP56 per IEC529, with a minimum 5 downward aiming angle. Exceeds Mil Spec 810 for humidity, salt spray, temperature & UV, and ASTM G85 for salt spray (168 hrs).
    Dimensions 486 x 486 x 479 mm (19.1 x 19.1 x 18.8), cabinet 507 mm (19.9 in) depth with gland nut 546 mm (21.5 in) including bracket extending to back
    Colors Available in gray (similar to Pantone 420C) and black (-BK)
    Included Accessories U-bracket, matches loudspeaker color (gray or black), zinc-rich extrathick powder coated, steel.
