JBL AW526 - High Power 2-Way All Weather Loudspeaker with 1 x 15 Inch LF Grey

Product Code: JBL AW526-GY

Key Features
High Output 15" 2-way Full-Range 120 x 60 Loudspeaker-GRAY. Priced as each.
$13,085.41 inc GST
(EA)
Increase value Decrease value
Qty Each (inc GST) Each
Estimated Lead time 8-12 weeks
  • Features
  • Overview
  • Technical Specs
  • Documents

High Power 2-Way All Weather Loudspeaker with 1 x 15" LF

The AW526 is a high power, lightweight, 2-way, full-range loudspeaker system comprised of the JBL Differential Drive dual voice coil and dual magnetic gap 2265H-1 380 mm (15 in) low-frequency driver and 2432H high-frequency 38 mm (1.5 in) exit, 75 mm (3 in) voice-coil compression driver. The large format Progressive Transition wave-guide provides excellent 120° x 60° coverage. The waveguide is rotatable so the loudspeaker system can used in either the vertical or horizontal orientation. The system is equipped with a 400 W 70/100V transformer. A heavy-duty stainless steel U-type mounting bracket is included and allows for easy installation on flat surfaces or in 90° corners. The enclosure is constructed of multilayer glass composite and is heavily braced to maximize lowfrequency performance. The 14-gauge stainless steel grille, backed with open cell foam and stainless steel mesh, provides excellent protection in the harshest environments. The AW526 is part of JBL's AE Series, a versatile family of loudspeakers intended for a wide variety of applications.

Features

  • Weather-Resistant, All Fiberglass Enclosure
  • 120° x 60° Coverage
  • 2265H-1 Differential Driver® Low- Frequency Driver
  • 2432H High Frequency Compression Driver
  • Large PT™ Progressive Transition waveguide for excellent pattern control and low distortion
  • Rotatable waveguide for vertical or horizontal orientation
  • Available in Gray and Black finish
  • 400 W, 70/100V Transformer Included

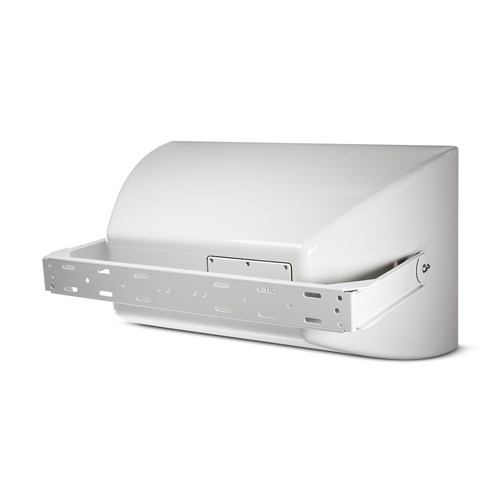

  • U-type Mounting Bracket Included

Applications

  • Sports Facilities
  • Themed Entertainment Venues
  • Outdoor Entertainment Centers
  • Cruise Ships
  • Water Parks

Please Note: Sale Pricing is only available on our current stock. Future stock of this product is subject to our regular pricing. For any enquiries regarding pricing please contact us on 1800 00 77 80.

Warranty

We offer a 2 year warranty on this product from its date of purchase. For more information regarding our support, repair and warranty, please download our Warranty Guide here.

Frequency Range (-10 dB) 35 Hz 20 kHz
Frequency Response ( 3 dB) 55 Hz 17 kHz
Coverage Pattern 120 x 60, rotatable waveguide
Directivity Factor (Q) 7.9
Directivity Index (DI) 9 dB
Crossover Frequency 1.1 kHz
Long-Term System Power Rating (IEC) 600 W (2400 W peak), 100 hrs
Maximum SPL 128 dB-SPL cont avg (134 dB peak)
System Sensitivity (1w @ 1m) 100 dB
70V/100V Transformer Taps 70V: 400W, 200W, 100W100V: 400W, 200W
Low Frequency Driver 1 x JBL 2265H 380 mm (15 in.) Differential Drive driver with 75 mm (3 in) dual voice coil
LFD Nominal Impedance 8 ohms
LFD Sensitivity (1W @ 1m, within operational band) 98 dB SPL
High Frequency Driver JBL 2432H, 38 mm (1.5 in) exit compression driver, 75 mm (3 in) voice coil
HFD Nominal Impedance 8 ohms
HFD Sensitivity (1W @ 1m) 113 dB SPL
Waveguide PT-H126HF-1
Enclosure Hand-Laminated Fiberglass, gray gelcoat (black available)
Suspension Attachment 2 x M10 for Included U-Bracket, 2 x M6 for aiming stabilization, 1 x M10 on rear for safety.
Grille Three layer grille assemblies consisting of 14-gauge powder coated stainless steel, backed with open cell foam and stainless steel mesh.

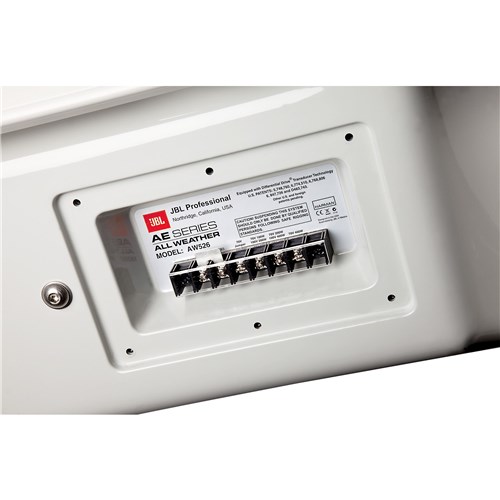

Input Connector CE-compliant covered barrier strip terminals. Barrier terminals accept up to 5.2 sq mm (10 AWG) wire or max width 9 mm (.375 in) spade lugs.
Environmental Specifications IP56 per IEC 529
Dimensions (H x W x D in horizontal cabinet orientation) 485 x 810 x 478 mm(19.1 x 31.9 x 18.8 in)
Net Weight 28.3 kg (62.5 lb)
