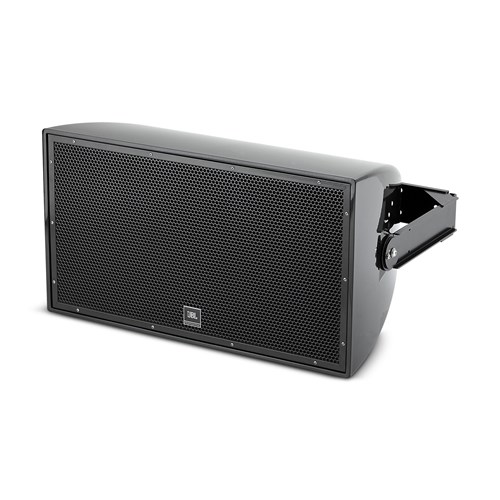

JBL AW526-LS-BK - High Power 2-Way All Weather Loudspeaker with 1 x 15 Inch LF for Life Safety Applications Black

Product Code: JBL AW526-LS-BK

Key Features
15" 2-Way All Weather Loudspeaker with EN54-24 Certification. Priced as each. Black
Enquire Now
Qty Each (inc GST) Each
Estimated Lead time Contact Us
  • Features
  • Overview
  • Technical Specs
  • Documents

High Power 2-Way All Weather Loudspeaker with 1 x 15" LF for Life Safety Applications

The AW526-LS is a high power, lightweight, 2-way, full-range loudspeaker system comprised of the JBL Differential Drive dual voice coil and dual magnetic gap 2265H 380 mm (15 in) low-frequency driver and 2432H high-frequency 38 mm (1.5 in) exit, 75 mm (3 in) voice-coil compression driver. The large format Progressive Transition wave-guide provides excellent 120° x 60° coverage. The waveguide is rotatable so the loudspeaker system can used in either the vertical or horizontal orientation. The system is equipped with a 400 W 70/100V transformer.

Features

  • Weather-Resistant, All Fiberglass Enclosure
  • EN54-24 Compliant
  • 120° x 60° Coverage
  • 2265H Differential Drive® Low-Frequency Driver
  • 2432H High Frequency Compression Driver
  • Large PT™ Progressive Transition waveguide for excellent pattern control and low distortion
  • Rotatable waveguide for vertical or horizontal orientation
  • Available in Gray and Black finish
  • 400 W, 70/100V Transformer Included
  • U-type Mounting Bracket Included

Applications

  • Sports Facilities
  • Themed Entertainment Venues
  • Outdoor Entertainment Centers
  • Cruise Ships
  • Water Parks
Warranty

We offer a 2 year warranty on this product from its date of purchase. For more information regarding our support, repair and warranty, please download our Warranty Guide here.

Trade Terms
This item is a firm order product, meaning it cannot be cancelled or returned once the purchase order is processed, except in cases of defect. Please verify that part numbers and descriptions are accurate before placing your order. For any confirmation or additional information, please contact AV Sales at 1800 00 77 80.
Frequency Range (-10 dB) 39 Hz 20 kHz
Frequency Response ( 3 dB): 86 Hz 17 kHz
Coverage Pattern 120 x 60, rotatable waveguide
Coverage AngleHorizontalVertical 500 Hz 1000 Hz 2000 Hz 4000 Hz128 98 115 108 108 95 67 46
Directivity Factor (Q) 7.9
Directivity Index (DI) 9 dB
Crossover Frequency 1.1 kHz
Long-Term System Power Rating (IEC) 400 W (1600 W peak), 100 hrs
Maximum SPL 127 dB-SPL cont avg (133 dB peak)
Maximum SPL (@ 4m) 112.11 dB
System Sensitivity (1w @ 1m) 100 dB
Sensitivity (1W @ 4m) 86.98 dB SPL
70V / 100V Transformer Taps 70V: 400 W, 200 W, 100W100V: 400W, 200W
Low Frequency Driver 1 x JBL 2265H 380 mm (15 in.) Differential Drive driver with 75 mm (3 in) dual voice coil
Nominal Impedance 8 ohms
Sensitivity (1W @ 1m, within operational band) 98 dB SPL
High Frequency Driver JBL 2432H, 38 mm (1.5 in) exit compression driver, 75 mm (3 in) voice coil
Sensitivity (1W @ 1m) 113 dB SPL
Waveguide PT-H126HF -1
Enclosure Hand-Laminated Fiberglass, black
Suspension Attachment 2 x M10 for Included U-Bracket, 2 x M6 for aiming stabilization, 1 x M10 on rear for safety.

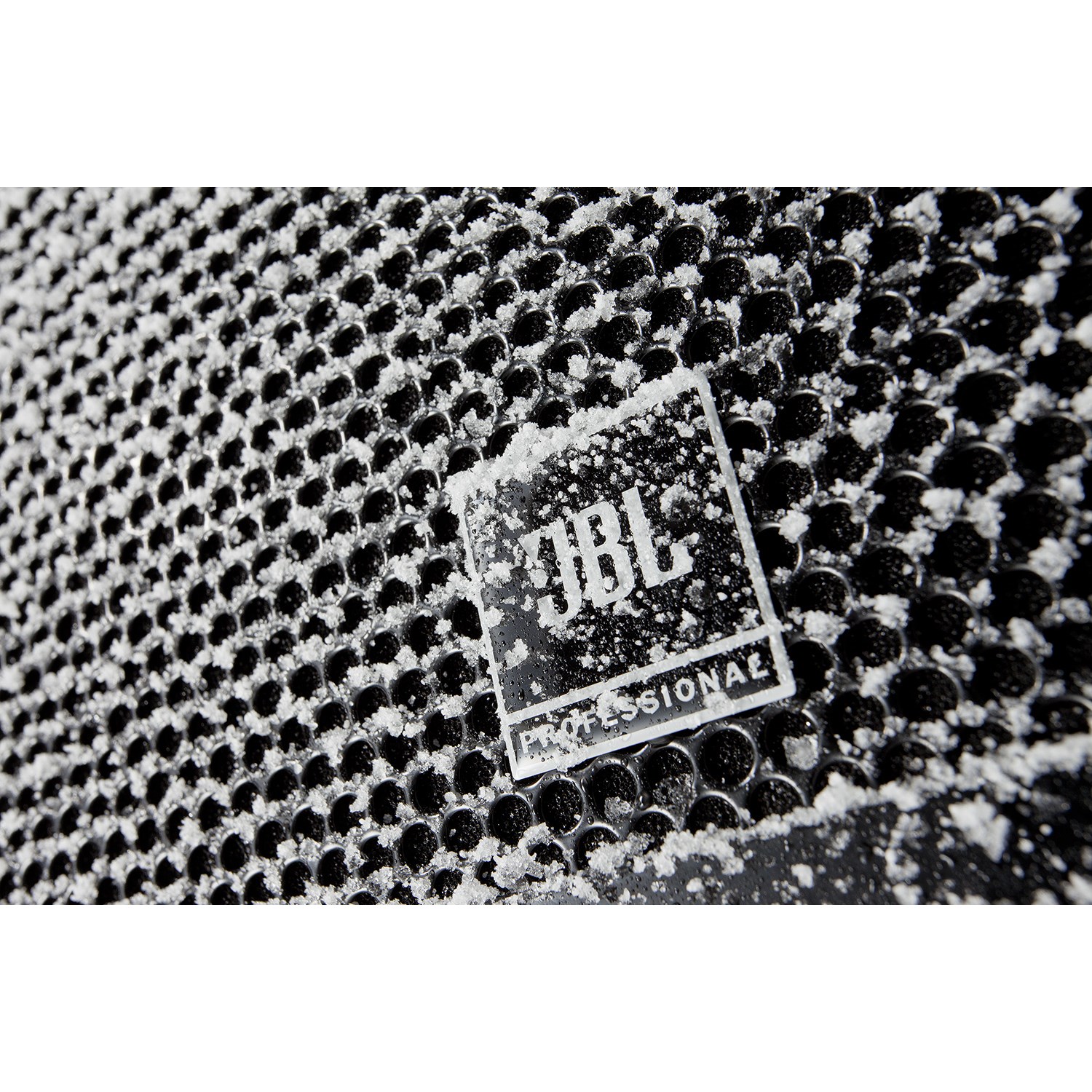

Grille Three layer grille assemblies consisting of 16-gauge powder coated stainless steel, backed with open cell foam and stainless steel mesh.
Input Connector CE-compliant covered barrier strip terminals. Barrier terminals accept up to 5.2 sq mm (10 AWG) wire or max width 9 mm (.375 in) spade lugs.
Environmental Specifications IP55C per IEC 529
Dimensions (H x W x D in horizontal cabinet orientation) 485 x 810 x 478 mm(19.1 x 31.9 x 18.8 in)
Net Weight 28.3 kg (62.5 lb)
