JBL ASB6115-WH High Power Single 15 Inch Subwoofer White

Product Code: JBL ASB6115-WH

Key Features
JBL ASB6115-WH 5Ingle 15 Subwoofer (White), Compact High-Power 15" Subwoofer System. 2265H-1 Differential Drive Woofer, 3" Dual Voice Coil - Dual Gap, Neodymium Magnet. Multiply Hardwood Enclosure With Duraflex Finish And 14-Gauge Steel Grille. Sixteen M10 Suspension Points. White Finish.
$5,624.38 inc GST
(EA)
Increase value Decrease value
Qty Each (inc GST) Each
Estimated Lead time 8-12 weeks
  • Features
  • Overview
  • Technical Specs
  • Documents

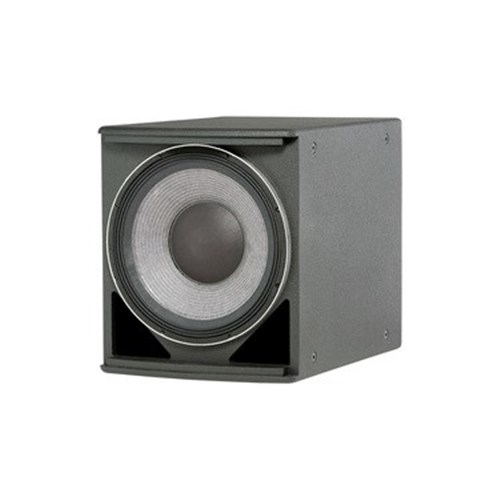

High Power Single 15" Subwoofer

The ASB6115 is a high power, lightweight front-loaded vented subwoofer enclosure housing JBL’s 2265H-1 Differential Drive® dual voice coil dual gap 15" woofer. This woofer features neodymium magnet and ultra robust cone for extra long life.

Features

  • 2265H-1 15" Differential Drive® dual voice coil dual gap, neodymium magnet transducer
  • 800 watts continuous pink noise, 3200 watts peak power handling capacity
  • Large vent area for high output with low distortion
  • FIR Tuning Set Matches Phase Profile to Full-Range Models
  • For ground-stacked or suspended applications in stand-alone arrays or in combination with other
    AE Series products
Warranty

We offer a 2 year warranty on this product from its date of purchase. For more information regarding our support, repair and warranty, please download our Warranty Guide here.

Trade Terms
This item is a firm order product, meaning it cannot be cancelled or returned once the purchase order is processed, except in cases of defect. Please verify that part numbers and descriptions are accurate before placing your order. For any confirmation or additional information, please contact AV Sales at 1800 00 77 80.
Frequency Range (-10dB) 32 Hz - 1 kHz
Frequency Response (±3 dB) 42 Hz - 1 kHz
Transducer Power Rating (AES) 800 W (3200 W peak), 2 hrs.
System Power Rating 675 W (2700 W peak), 100 hrs.
Maximum SPL (1m) 35 Hz - 400 Hz: 126 dB-SPL cont avg (132 dB peak)
System Sensitivity 35 Hz - 400 Hz: 97 dB-SPL, 1W (2.83V) @ 1m
Nominal Impedance 8 ohms
LF Driver 1 x 2265H-1, 380 mm (15 in) dia., 75 mm (3 in) Dual Coil Dual Gap neodymium Differential Drive® driver
Enclosure Rectangular cabinet, 16 mm (5/8 in) exterior grade 11-ply birch plywood
Suspension Attachment 16 points (4 top, 4 bottom, 4 each side), M10 threaded hardware
Finish Black DuraFlex™ finish. White available upon request.
Grille Powder coated 14 gauge perforated steel, with acoustically transparent black foam backing.
Input Connector NL4 Neutrik Speakon® and CE-compliant covered barrier strip terminals. Barrier terminals accept up to 5.2 sq mm (10 AWG) wire or max width 9 mm (.375 in) spade lugs. Speakon in parallel with barrier strip for loop-through.
Environmental Mil-Std 810; IP-x3 per IEC529.
Dimensions (H x W x D in vertical orientation) 483 x 419 x 597 mm(19.0 x 16.5 x 23.5 in)
Net Weight (each) 20.6 kg (45.5 lb)
Optional Accessories M10 x 35 mm forged shoulder eyebolts with washers.
Nominal LF Driver Impedance 8 ohms
